Номер |
Название |
|
|
| * |

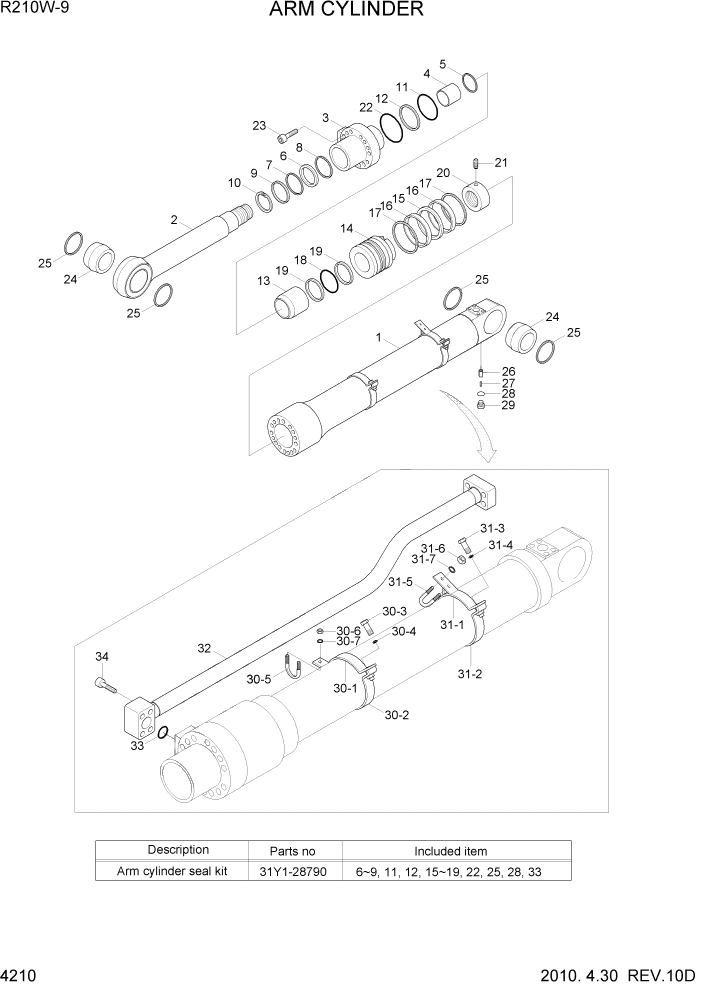

31Q6-50131 |
ARM CYLINDER ASSY |
 |
| * |
31Q6-50410 |
ARM CYLINDER ASSY |
| *-1 |
31Y1-28631 |
ARM CYL SUB ASSY |
| 1 |
31Y1-28640 |
TUBE ASSY |
| 1 |
31Y1-37870 |
TUBE ASSY |
| 2 |
31Y1-28700 |
ROD ASSY |
| N2-3 |
@ |
SPEAR-CUSHION |
| 3 |
31Y1-28741 |
GLAND |
| 4 |
S732-100040 |
BUSHING-DD2 |
| 5 |
Y191-107000 |
RING-SNAP |
| K6 |
Y220-100013 |
SEAL-ROD |
| K7 |
Y180-100020 |
RING-BACK UP |
| K8 |
Y240-100012 |
RING-BUFFER |
| K9 |
Y110-100011 |
WIPER-DUST |
| 10 |
Y190-114000 |
RING-SNAP |
| K11 |
S631-130004 |
O-RING |
| K12 |
31YC-CP130 |
RING-BACK UP |
| 13 |
31YC-28030 |
RING-CUSHION |
| 14 |
31Y1-28771 |
PISTON |
| K15 |
Y420-140000 |
SEAL-PISTON |
| K16 |
Y310-140103 |
RING-WEAR |
| K17 |
Y440-140202 |
RING-DUST |
| K18 |
S632-075004 |
O-RING |
| K19 |
S642-075003 |
RING-BACK UP |
| 20 |
31YC-68050 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| K22 |
S632-140004 |
O-RING |
| 23 |
S109-180904 |
BOLT-SOCKET |
| 24 |
31YC-15030 |
BUSHING-PIN |
| 25 |
Y000-080200 |
SEAL-DUST |
| 26 |
31YC-2A070 |
VALVE-CHECK |
| 27 |
31YC-99071 |
SPRING-COIL |
| K28 |
S631-014004 |
O-RING |
| 29 |
P220-110103 |
PLUG-HEX |
| 30 |
31Y1-29170 |
BAND ASSY-R |
| 30-1 |
31Y1-29180 |
BAND SUB ASSY |
| 30-2 |
31Y1-29190 |
BAND SUB ASSY |
| 30-3 |
S015-120452 |
BOLT-HEX |
| 30-4 |
S411-120002 |
WASHER-SPRING |
| 30-5 |
S071-023430 |
U-BOLT |
| 30-6 |
S201-101002 |
NUT-HEX |
| 30-7 |
S411-100002 |
WASHER-SPRING |
| 31 |
31Y1-29200 |
BAND ASSY-B |
| 31-1 |
31Y1-29210 |
BAND SUB ASSY |
| 31-2 |
31Y1-29190 |
BAND SUB ASSY |
| 31-3 |
S015-120452 |
BOLT-HEX |
| 31-4 |
S411-120002 |
WASHER-SPRING |
| 31-5 |
S071-023430 |
U-BOLT |
| 31-6 |
S201-101002 |
NUT-HEX |
| 31-7 |
S411-100002 |
WASHER-SPRING |
| 32 |
31Y1-29220 |
PIPE ASSY-R |
| 32 |
31Y1-37920 |
PIPE ASSY-R |
| K33 |
Y171-024004 |
O-RING |
| 34 |
S107-120554 |
BOLT-SOCKET |
| K |
31Y1-28790 |
SEAL KIT |
| N |
@ |
NOT SUPPLIED PARTS |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
