Номер |
Название |
|
|
| * |

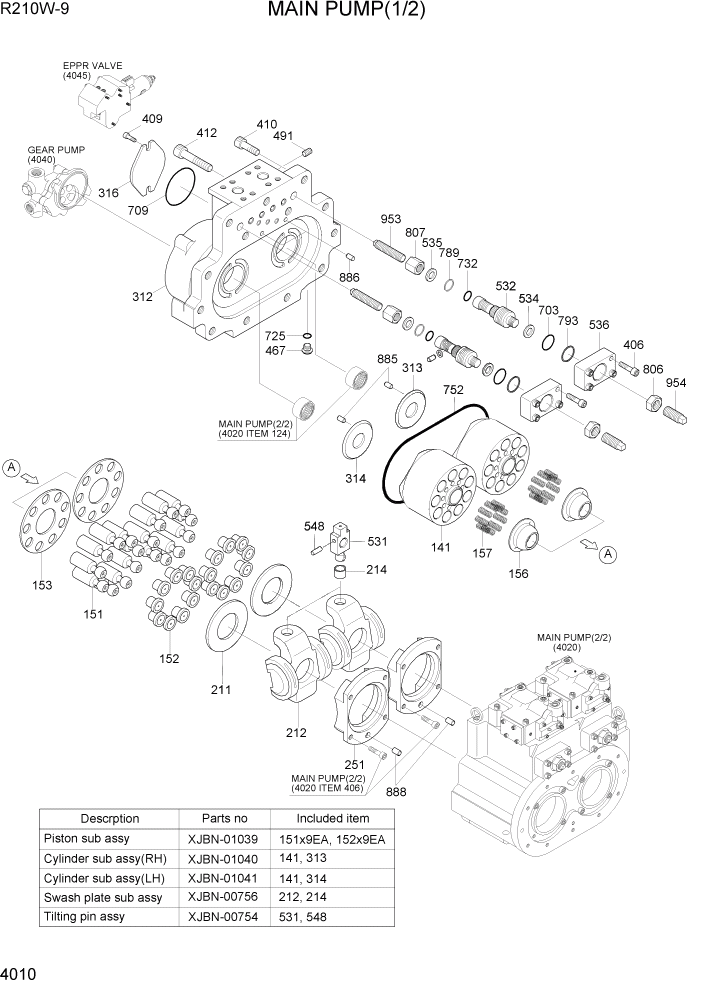

31Q6-15010 |
MAIN PUMP |
 |
| *-1 |
@ |
MAIN PUMP UNIT |
| NS141 |
XJBN-00067 |
BLOCK-CYLINDER |
| NS151 |
XJBN-01032 |
PISTON |
| NS152 |
XJBN-01214 |
SHOE |
| 153 |
XJBN-00945 |
PLATE-SET |
| 156 |
XJBN-00083 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00084 |
SPRING-CYLINDER |
| 211 |
XJBN-00085 |
PLATE-SHOE |
| NS212 |
XJBN-00780 |
PLATE-SWASH |
| S214 |
XJBN-00071 |
BUSHING-TILTING |
| 251 |
XJBN-00779 |
SUPPORT |
| 312 |
XJBN-00776 |
COVER-VALVE |
| NS313 |
XJBN-01035 |
PLATE-VALVE(R) |
| NS314 |
XJBN-01036 |
PLATE-VALVE(L) |
| 316 |
XJBN-00690 |
COVER |
| 406 |
XJBN-00355 |
SCREW |
| 409 |
XJBN-00696 |
SCREW-HEX |
| 410 |
XJBN-00775 |
SCREW-HEX |
| 412 |
XJBN-00774 |
SCREW-HEX |
| 467 |
XJBN-00265 |
PLUG |
| 491 |
XJBN-00234 |
PLUG |
| S531 |
XJBN-00771 |
PIN-TILTING |
| 532 |
XJBN-00770 |
PISTON-SERVO |
| 534 |
XJBN-01124 |
STOPPER(L) |
| 535 |
XJBN-00093 |
STOPPER(S) |
| 536 |
XJBN-00768 |
COVER-SERVO |
| NS548 |
XJBN-00360 |
PIN-FEED BACK |
| 703 |
XJBN-00915 |
O-RING |
| 709 |
XJBN-00387 |
O-RING |
| 725 |
XJBN-00045 |
O-RING |
| 732 |
XJBN-00904 |
O-RING |
| 752 |
XJBN-00763 |
PACKING-SEAT |
| 789 |
XJBN-00099 |
RING-BACK UP |
| 793 |
XJBN-00761 |
RING-BACK UP |
| 806 |
XJBN-00101 |
NUT-HEX |
| 807 |
XJBN-00760 |
NUT |
| 885 |
XJBN-00103 |
PIN-VALVE PLATE |
| 886 |
XJBN-00054 |
PIN-SPRING |
| 888 |
XJBN-00712 |
PIN |
| 953 |
XJBN-00757 |
SCREW-SET |
| 954 |
XJBN-00392 |
SCREW-SET |
| *-2 |
@ |
REGULATOR ASSY |
| *-3 |
@ |
GEAR PUMP |
| *-4 |
@ |
EPPR VALVE |
| S |
XJBN-01039 |
PISTON SUB ASSY |
| S |
XJBN-01040 |
CYLINDER SUB ASSY-RH |
| S |
XJBN-01041 |
CYLINDER SUB ASSY-LH |
| S |
XJBN-00756 |
SWASH PLATE ASSY |
| S |
XJBN-00754 |
TILTING PIN ASSY |
|
|
