Номер |
Название |
|
|
| * |

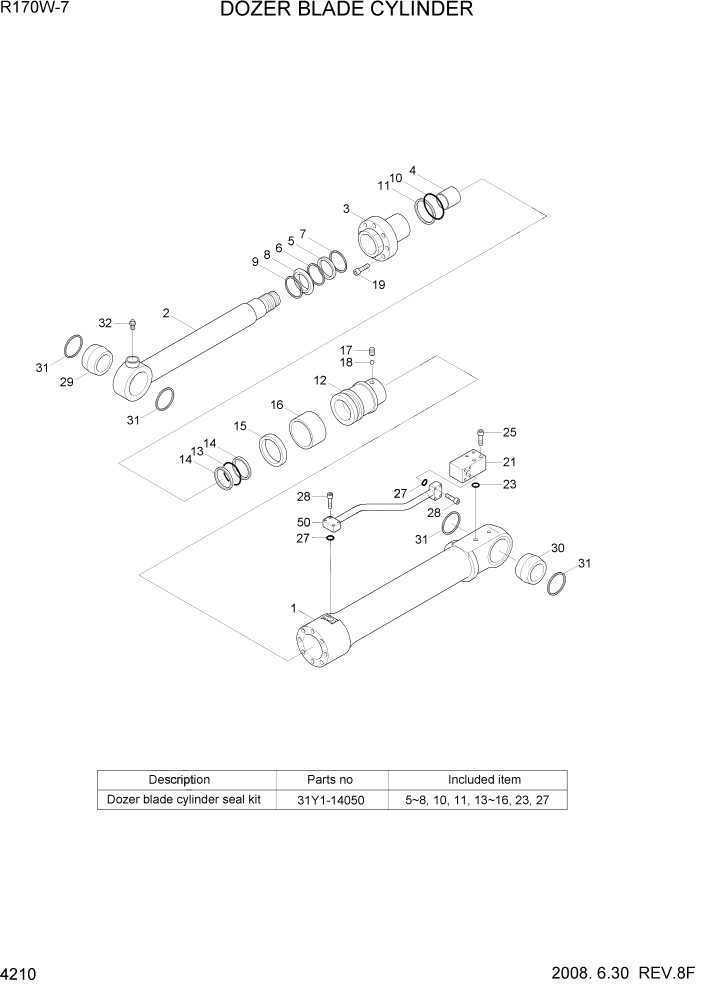

31EK-70050 |
DOZER CYLINDER ASSY-LH |
 |
| * |
31EK-70060 |
DOZER CYLINDER ASSY-RH |
| *-1 |
31EK-71510 |
BLADE CYL SUB ASSY |
| 1 |
31Y1-14010 |
TUBE ASSY |
| 2 |
31Y1-04520 |
ROD ASSY |
| 3 |
31Y1-12930 |
GLAND |
| 4 |
S731-075040 |
BUSHING-DU |
| K5 |
Y200-075011 |
SEAL-ROD |
| K6 |
Y180-075020 |
RING-BACK UP |
| K7 |
Y240-075011 |
RING-BUFFER |
| K8 |
Y110-075011 |
WIPER-DUST |
| K9 |
Y190-089000 |
RING-SNAP |
| K10 |
S631-100004 |
O-RING |
| K11 |
S641-100003 |
RING-BACK UP |
| 12 |
31Y1-04560 |
PISTON |
| K13 |
S632-060004 |
O-RING |
| K14 |
S642-060003 |
RING-BACKUP |
| K15 |
Y420-110000 |
SEAL-PISTON |
| K16 |
Y310-110200 |
RING-WEAR |
| 17 |
S113-080104 |
SCREW-SET |
| 18 |
Y890-015011 |
BALL-STEEL |
| 19 |
S109-160604 |
BOLT-SOCKET |
| 29 |
31YC-12060 |
BUSHING-PIN |
| 30 |
31YC-12070 |
BUSHING-PIN |
| 31 |
Y000-070200 |
SEAL-DUST |
| 32 |
S651-810002 |
NIPPLE-GREASE |
| 21 |
35EA-70320 |
CHECK VALVE-DOUBLE,LH |
| 21 |
31N4-75010 |
CHECK VALVE-DOUBLE,LH |
| 21 |
35EA-70310 |
CHECK VLV-DOUBLE,LH |
| 21 |
35EA-70310 |
CHECK VALVE-DOUBLE,RH |
| 21 |
31N4-75020 |
CHECK VALVE-DOUBLE,RH |
| K23 |
S631-014004 |
O-RING |
| 25 |
S107-100604 |
BOLT-SOCKET |
| K27 |
Y171-015004 |
O-RING |
| K27 |
Y171-015004 |
O-RING |
| 28 |
S107-080404 |
BOLT-SOCKET |
| 28 |
S107-080404 |
BOLT-SOCKET HEAD |
| 50 |
31Y1-14030 |
PIPE ASSY(R)-LH |
| 50 |
31Y1-14040 |
PIPE ASSY(R)-RH |
| 50 |
31Y1-14040 |
PIPE ASSY(R)-RH |
| K |
31Y1-14050 |
SEAL KIT |
|
|
