Номер |
Название |
|
|
| * |
@ |

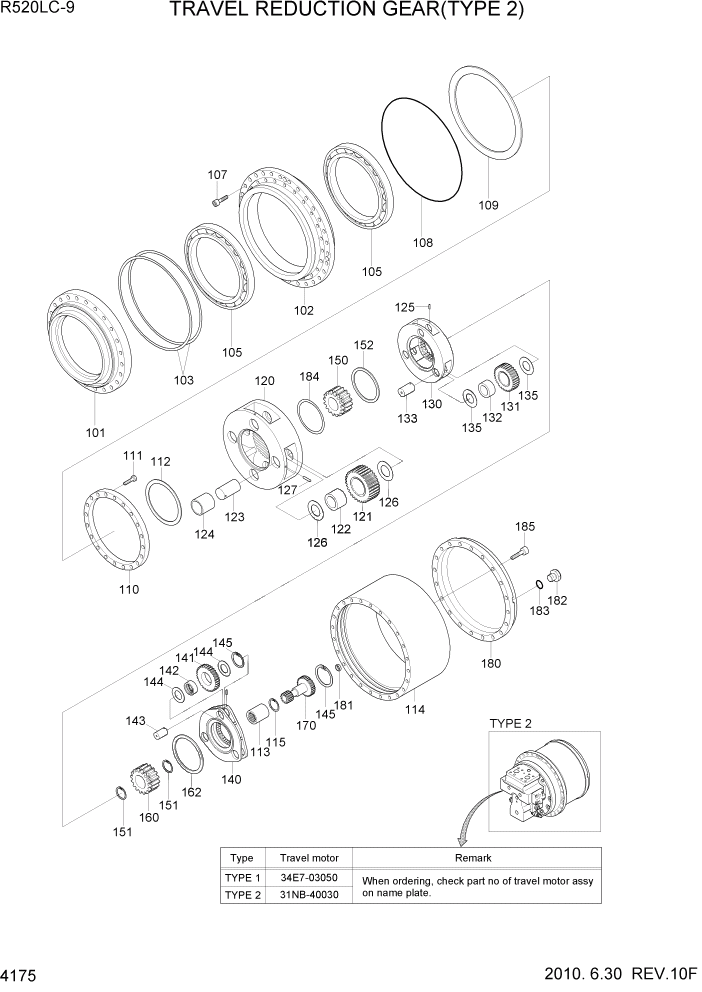

TRAVEL MOTOR ASSY |
 |
| *-4 |
XKAH-01287 |
REDUCTION GEAR |
| 101 |
XKAH-01542 |
SPINDLE |
| 102 |
XKAH-01543 |
HUB |
| 103 |
XKAH-01290 |
SEAL-FLOATING |
| 105 |
XKAH-01291 |
BEARING-ANGULAR |
| 107 |
XKAH-01292 |
BOLT-SOCKET |
| 108 |
XKAH-01293 |
O-RING |
| 109 |
XKAH-01294 |
PLECE-DISTANCE |
| 110 |
XKAH-01575 |
COPLING-B |
| 111 |
XKAH-01545 |
BOLT-SOCKET |
| 112 |
XKAH-00436 |
PLATE-THRUST |
| 113 |
XKAH-01297 |
COUPLING |
| 114 |
XKAH-01298 |
GEAR-RING |
| 115 |
XKAH-00517 |
RING-SNAP |
| 120 |
XKAH-01546 |
CARRIER NO.3 |
| 121 |
XKAH-01300 |
PLANETARY GEAR NO.3 |
| 122 |
XKAH-01548 |
BEARING-NEEDLE |
| 123 |
XKAH-01301 |
BUSHING-FLOATING |
| 124 |
XKAH-01302 |
SHAFT-BEARING NO.3 |
| 125 |
XKAH-01113 |
SPRING-PIN |
| 126 |
XKAH-01303 |
WASHER-THRUST(3.5) |
| 127 |
XKAH-01259 |
PIN-SPRING |
| 130 |
XKAH-01304 |
CARRIER NO.2 |
| 131 |
XKAH-01305 |
PLANETARY GEAR NO.2 |
| 132 |
XKAH-01548 |
BEARING-NEEDLE |
| 133 |
XKAH-01306 |
SHAFT-BEARING NO.2 |
| 135 |
XKAH-01307 |
WASHER-THRUST(2.5) |
| 140 |
XKAH-01549 |
CARRIER NO.1 |
| 141 |
XKAH-01309 |
PLANETARY GEAR NO.1 |
| 142 |
XKAH-01003 |
BEARING-NEEDLE |
| 143 |
XKAH-01262 |
RING-INNER |
| 144 |
XKAH-01000 |
PLATE -SIDE |
| 145 |
XKAH-00143 |
RING-SNAP |
| 150 |
XKAH-01310 |
SUN GEAR NO.3 |
| 151 |
XKAH-01009 |
RING-THRUST 90 |
| 152 |
XKAH-01311 |
CLIP |
| 160 |
XKAH-01312 |
SUN GEAR NO.2 |
| 162 |
XKAH-01313 |
CLIP |
| 170 |
XKAH-01314 |
GEAR-DRIVE |
| 180 |
XKAH-01576 |
COVER |
| 181 |
XKAH-01284 |
WASHER-THRUST(M) |
| 182 |
XKAH-00032 |
PLUG-RO |
| 183 |
XKAH-00035 |
O-RING |
| 184 |
XKAH-01550 |
RING-THRUST |
| 185 |
XKAH-01316 |
BOLT-SOCKET |
| *-1 |
@ |
CONTROL PART ASSY |
| *-2 |
@ |
RELIEF VALVE ASSY |
| *-3 |
@ |
HYD MOTOR ASSY |
|
|
