Номер |
Название |
|
|
| * |

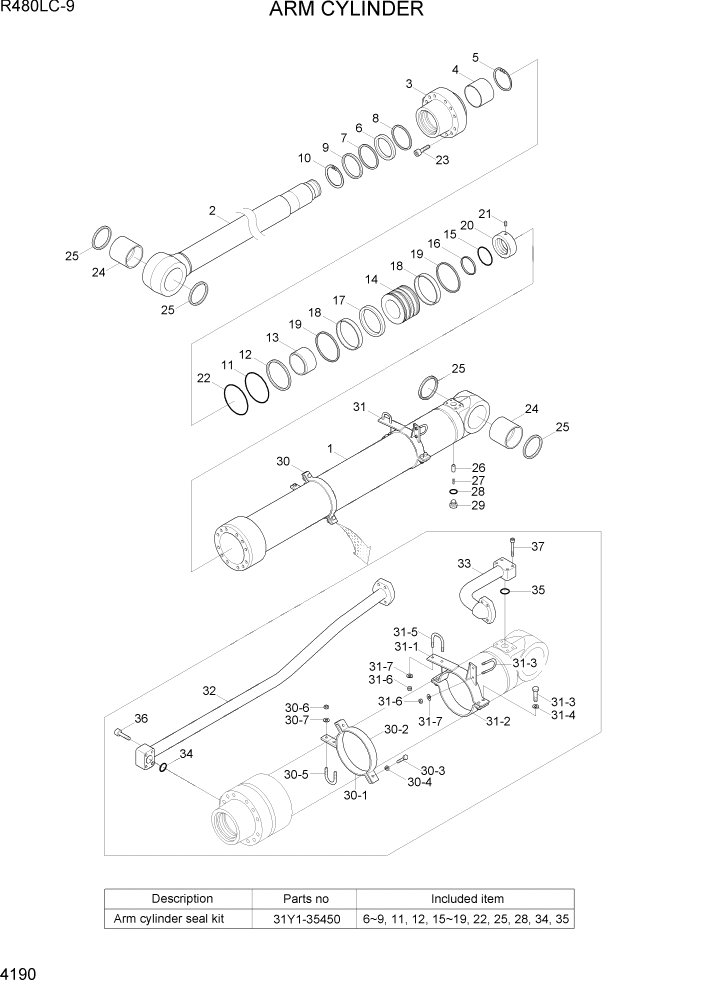

31QB-50130 |
ARM CYLINDER ASSY |
 |
| *-1 |
31Y1-35220 |
ARM CYL SUB ASSY |
| 1 |
31Y1-35230 |
TUBE ASSY |
| 2 |
31Y1-35290 |
ROD ASSY |
| 3 |
31Y1-35320 |
GLAND |
| 4 |
S732-130060 |
BUSHING-DD2 |
| 5 |
Y191-137000 |
RING-SNAP |
| K6 |
Y220-130113 |
SEAL-ROD |
| K7 |
Y180-130120 |
RING-BACK UP |
| K8 |
Y240-130012 |
RING-BUFFER |
| K9 |
Y110-130011 |
WIPER-DUST |
| 10 |
Y190-146000 |
RING-SNAP |
| K11 |
S632-180004 |
O-RING |
| K12 |
31YC-CG180 |
RING-BACK UP |
| 13 |
31YC-28150 |
RING-CUSHION |
| 14 |
31Y1-35350 |
PISTON |
| K15 |
S632-105004 |
O-RING |
| K16 |
S642-105003 |
RING-BACK UP |
| K17 |
Y420-190000 |
SEAL-PISTON |
| K18 |
Y310-190003 |
RING-WEAR |
| K19 |
Y440-190002 |
RING-DUST |
| 20 |
31YC-68110 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| K22 |
31YC-99HE0 |
O-RING |
| 23 |
S109-240954 |
BOLT-SOCKET |
| 24 |
61Q6-97910 |
BUSH-PIN |
| K25 |
Y020-120000 |
SEAL-DUST,DLI,KPU |
| 26 |
31YC-2A010 |
VALVE-CHECK |
| 27 |
31YC-99071 |
SPRING-COIL |
| K28 |
S631-014004 |
O-RING |
| 29 |
P220-110103 |
PLUG-HEX |
| 30 |
31Y1-35370 |
BAND ASSY-R |
| 30-1 |
31Y1-26360 |
BAND SUB ASSY |
| 30-2 |
31YC-31490 |
BAND |
| 30-3 |
S015-120452 |
BOLT-HEX |
| 30-4 |
S411-120002 |
WASHER-SPRING |
| 30-5 |
S071-024330 |
U-BOLT |
| 30-6 |
S201-101002 |
NUT-HEX |
| 30-7 |
S411-100002 |
WASHER-SPRING |
| 31 |
31Y1-35390 |
BAND ASSY-B |
| 31-1 |
31Y1-35400 |
BAND SUB ASSY |
| 31-2 |
31Y1-35410 |
BAND SUB ASSY |
| 31-3 |
S015-120452 |
BOLT-HEX |
| 31-4 |
S411-120002 |
WASHER-SPRING |
| 31-5 |
S071-024330 |
U-BOLT |
| 31-6 |
S201-101002 |
NUT-HEX |
| 31-7 |
S411-100002 |
WASHER-SPRING |
| 32 |
31Y1-35420 |
PIPE ASSY-R |
| 33 |
31Y1-35440 |
PIPE ASSY-B |
| K34 |
Y171-024004 |
O-RING |
| K35 |
Y171-027004 |
O-RING |
| 36 |
S107-120604 |
BOLT-SOCKET |
| 37 |
S107-120654 |
BOLT-SOCKET |
| K |
31Y1-35450 |
SEAL KIT |
|
|
