Номер |
Название |
|
|
| * |

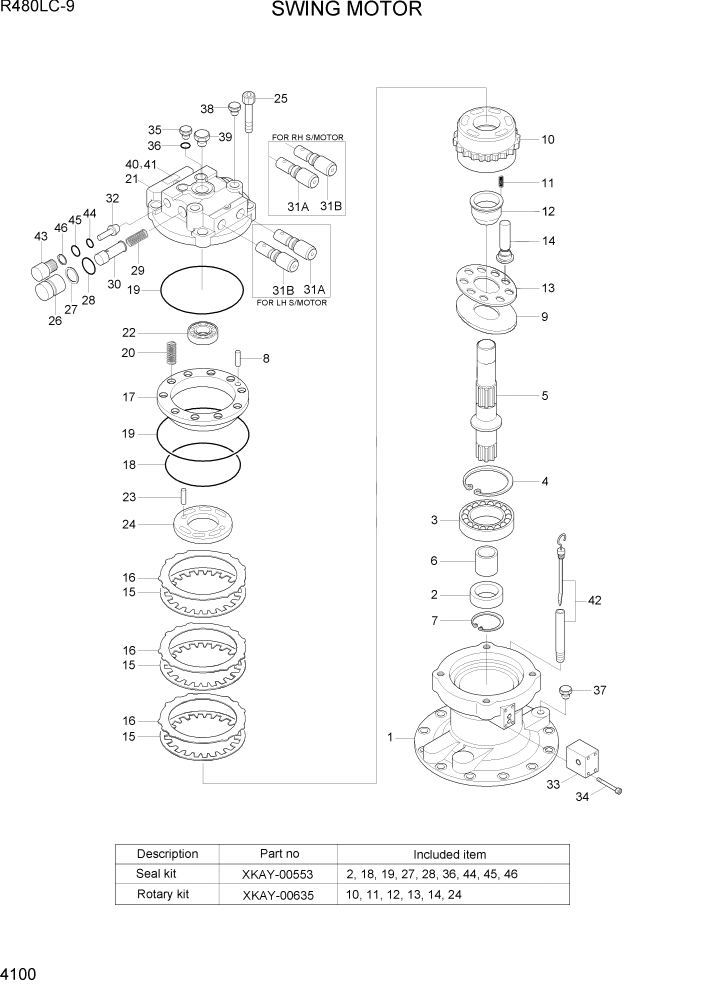

31QB-10150 |
SWING MOTOR ASSY-LH |
 |
| * |
31QB-10170 |
SWING MOTOR ASSY-RH |
| *-1 |
31QB-10130 |
SWING MOTOR UNIT-LH |
| *-1 |
31QB-10160 |
SWING MOTOR UNIT-RH |
| 1 |
XKAY-00637 |
BODY |
| K2 |
XKAY-00521 |
SEAL-OIL |
| 3 |
XKAY-00522 |
BEARING-ROLLER |
| 4 |
XKAY-00523 |
RING-SNAP |
| 5 |
XKAY-01317 |
RELIEF VALVE ASSY |
| 6 |
XKAY-00525 |
BUSHING |
| 7 |
XKAY-00526 |
RING-STOP |
| 8 |
XKAY-00625 |
PIN |
| 9 |
XKAY-00527 |
PLATE-SHOE |
| A |
XKAY-00635 |
ROTARY KIT |
| A-A |
XKAY-00634 |
CYLINDER BLOCK KIT |
| N10 |
XKAY-00633 |
BLOCK-CYLINDER |
| N11 |
XKAY-00531 |
SPRING |
| 24 |
XKAY-00544 |
PLATE-VALVE |
| A-B |
XKAH-00561 |
PLATE-COVER |
| N12 |
XKAY-00533 |
GUIDE-BALL |
| N13 |
XKAY-00534 |
PLATE-SET |
| A-C |
XKAY-00535 |
PISTON KIT |
| N14 |
XKAY-00536 |
PISTON ASSY |
| 15 |
XKAY-00537 |
PLATE-FRICTION |
| 16 |
XKAY-00538 |
PLATE |
| 17 |
XKAY-00632 |
PISTON-BRAKE |
| K18 |
XKAY-00468 |
O-RING |
| K19 |
XKAY-00540 |
O-RING |
| 20 |
XKAY-00541 |
SPRING |
| 21 |
XKAY-01319 |
COVER-REAR |
| 22 |
XKAY-00543 |
BEARING-NEEDLE |
| 23 |
XKAY-00382 |
PIN |
| 25 |
XKAY-00546 |
BOLT-WRENCH |
| 26 |
XKAY-00309 |
PLUG |
| K27 |
XKAY-00141 |
RING-BACK UP |
| K28 |
XKAY-00310 |
O-RING |
| 29 |
XKAY-00311 |
SPRING |
| 30 |
XKAY-00312 |
CHECK |
| 31A |
XKAY-01475 |
RELIEF VALVE ASSY |
| 31B |
XKAY-01476 |
RELIEF VALVE ASSY |
| 32 |
XKAY-00314 |
REACTIONLESS VLV ASSY |
| 33 |
XKAY-01318 |
TIME DELAY VLV ASSY |
| 34 |
XKAY-00149 |
BOLT-WRENCH |
| 35 |
XKAY-00150 |
PLUG |
| K36 |
XKAY-00151 |
O-RING |
| 37 |
XKAY-00140 |
PLUG |
| 38 |
XKAY-00975 |
PLUG |
| 39 |
XKAY-00548 |
PLUG |
| 40 |
XKAY-01477 |
NAME PLATE |
| 40 |
XKAY-01478 |
NAME PLATE |
| 41 |
XKAY-00277 |
RIVET |
| 42 |
XKAY-00638 |
LEVEL GAUGE |
| 43 |
XKAY-00322 |
PLUG |
| K44 |
XKAY-00324 |
O-RING |
| K45 |
XKAY-00247 |
O-RING |
| K46 |
XKAY-00605 |
RING-BACK UP |
| *-2 |
@ |
SWING REDUCTION GEAR |
| K |
XKAY-00553 |
SEAL KIT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
