Номер |
Название |
Опции |
Альт |
| * |
4952832 |

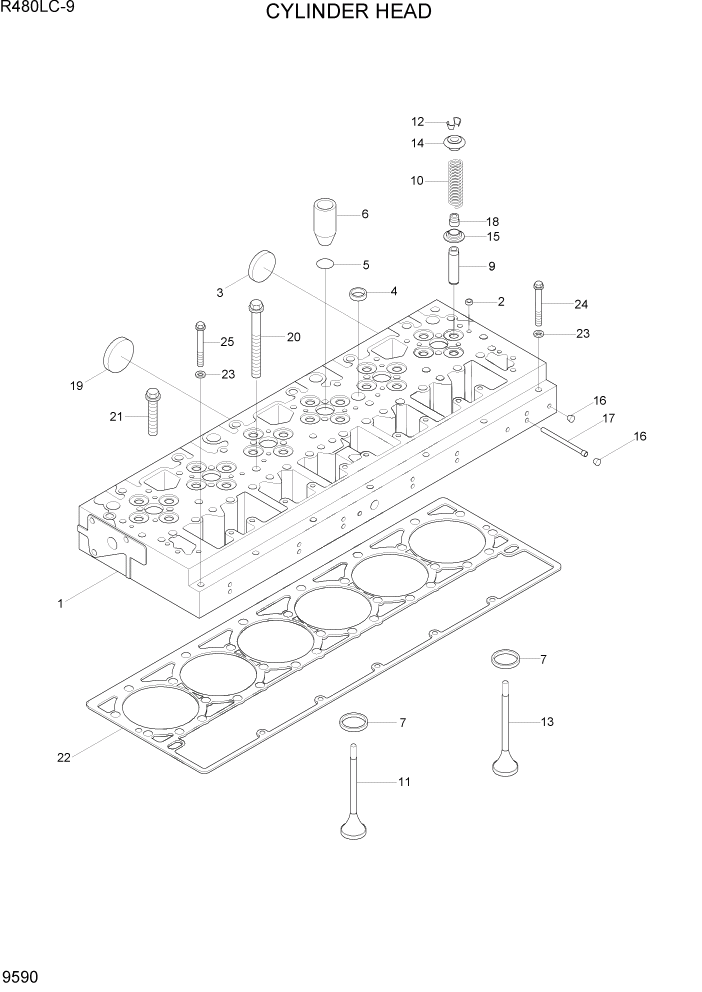

CYLINDER HEAD ASSY |
|
PP8545-04 |
| N1 |
4952831 |
CYLINDER HEAD |
|
NOT |
| 2 |
3007632 |
PLUG-EXPANSION |
|
|
| 3 |
206741 |
PLUG-EXPANSION |
|
|
| 4 |
3007635 |
PLUG-EXPANSION |
|
|
| 5 |
3035026 |
SEAL/O-RING |
|
|
| 6 |
3417717 |
SLEEVE-INJECTOR |
|
|
| 7 |
3090704 |
INSERT-VALVE |
|
|
| 9 |
4923471 |
GUIDE-VALVE STEM |
|
|
| 10 |
3895860 |
SPRING-VALVE |
|
|
| *-1 |
4955239 |
KIT-INTAKE VALVE |
|
|
| N11 |
4926069 |
VALVE-INTAKE |
|
NOT |
| 12 |
3275354 |
COLLET-VALVE |
|
|
| *-2 |
3800637 |
KIT-EXHAUST VALVE |
|
|
| N13 |
3417779 |
VALVE-EXHAUST |
|
NOT |
| 12 |
3275354 |
COLLET-VALVE |
|
|
| 14 |
3104151 |
RETAINER-VLV SPRING |
|
|
| 15 |
3070072 |
GUIDE-VALVE SPRING |
|
|
| 16 |
3008465 |
PLUG-PIPE |
|
|
| 17 |
3820749 |
PLUG-ORIFICE |
|
|
| 18 |
4003966 |
SEAL-VALVE STEM |
|
|
| 19 |
3895479 |
PLUG-EXPANSION |
|
|
| 20 |
4923187 |
SCREW-HEX FLG H/CAP |
|
|
| 21 |
4022907 |
SCREW-HEX FLG H/CAP |
|
|
| 22 |
4022500 |
GASKET-CYLINDER HEAD |
|
|
| 23 |
3328328 |
WASHER-SEALING |
|
|
| 24 |
3328637 |
SCREW-HEX FLG H/CAP |
|
|
| 25 |
3328379 |
SCREW-HEX FLG H/CAP |
|
|
| * |
3417558 |
GUIDE-VALVE STEM |
|
0.20MM O/SIZE |
| * |
3028071 |
INSERT-VALVE |
|
0.25MM O/SIZE |
| * |
3028072 |
INSERT-VALVE |
|
0.50MM O/SIZE |
| * |
3028073 |
INSERT-VALVE |
|
0.75MM O/SIZE |
| * |
3028074 |
INSERT-VALVE |
|
1.00MM O/SIZE |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
NOT |
|
 |
