Номер |
Название |
Опции |
Альт |
| * |

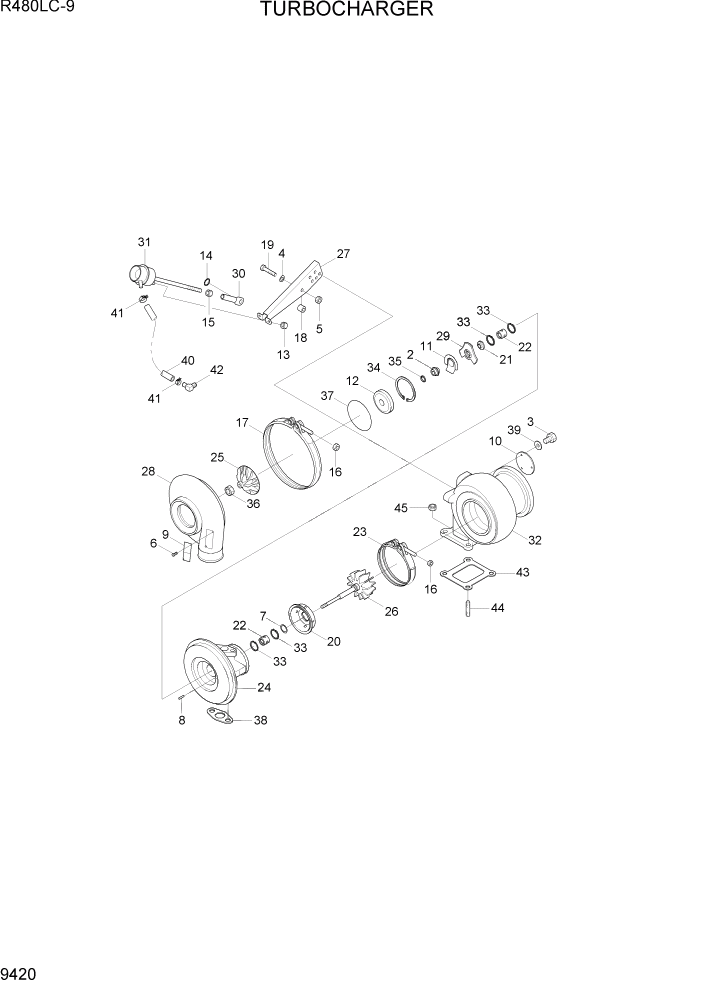

4043707 |
TURBOCHARGER KIT |
|
PP20035-02 |
| 2 |
3502231 |
SLINGER-OIL |
|
|
| 3 |
3759526 |
SCREW-HEX HEAD SET |
|
|
| 4 |
3504967 |
WASHER-PLAIN |
|
|
| 5 |
3591206 |
SPACER-MOUNTING |
|
|
| 6 |
3519163 |
SCREW-DRIVE |
|
|
| 7 |
3521441 |
SEAL-SPLIT RING |
|
|
| 8 |
3522597 |
PIN-ROLL |
|
|
| N9 |
3527619 |
DATAPLATE |
|
NOT |
| 10 |
3527651 |
PLATE-COVER |
|
|
| 11 |
3528094 |
BAFFLE-OIL |
|
|
| 12 |
3528096 |
PLATE-OIL SEAL |
|
|
| 13 |
3528204 |
NUT-LOCK |
|
|
| 14 |
3528221 |
RING-RETAING |
|
|
| 15 |
3528414 |
NUT |
|
|
| 16 |
3529372 |
NUT-REGULAR HEX |
|
|
| 17 |
3529852 |
CLAMP-V BAND |
|
|
| 18 |
3532195 |
SPACER-MOUNTING |
|
|
| N19 |
3534292 |
SCREW-HEX HEAD SET |
|
NOT |
| 20 |
3533038 |
SHIELD-HEAT |
|
|
| 21 |
3534109 |
COLLAR-THRUST |
|
|
| 22 |
3534833 |
BEARING-TURBO |
|
|
| 23 |
3535399 |
CLAMP-V BAND |
|
|
| 24 |
3535575 |
HOUSING-TUR BEARING |
|
|
| N25 |
4035887 |
IMPELLER-TUR COMPR |
|
NOT |
| 26 |
3535983 |
SHAFT & WHEEL |
|
|
| N27 |
4040639 |
BRACKET-ACTUATOR |
|
NOT |
| 28 |
4036914 |
HOUSING-COMPRESSOR |
|
|
| 29 |
3591655 |
BEARING-TUR THRUST |
|
|
| N30 |
3597518 |
END-ADJUSTING LINK |
|
NOT |
| N31 |
4037622 |
ACTUATOR-TURBO |
|
NOT |
| N32 |
3592774 |
HOUSING-TURBINE |
|
NOT |
| 33 |
3709510 |
RING-RETAINING |
|
|
| 34 |
3723863 |
RING-RETAINING |
|
|
| 35 |
3758848 |
SEAL-SPLIT RING |
|
|
| 36 |
3760250 |
NUT-LOCK |
|
|
| 37 |
3762915 |
O-RING |
|
|
| 38 |
3899343 |
GASKET-TURBO |
|
|
| N39 |
3518004 |
WASHER-LOCK |
|
NOT |
| 40 |
3538468 |
HOSE-PLAIN |
|
|
| 41 |
3914420 |
CLAMP-HOSE |
|
|
| * |
3533707 |
RING-RETAINING |
|
NOT SHOWN |
| 43 |
3088984 |
GASKET-TURBO |
|
|
| 44 |
3095798 |
STUD |
|
|
| 45 |
3818824 |
NUT-HEX FLANGE |
|
|
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
NOT |
|
 |
