Номер |
Название |
Опции |
Альт |
| * |

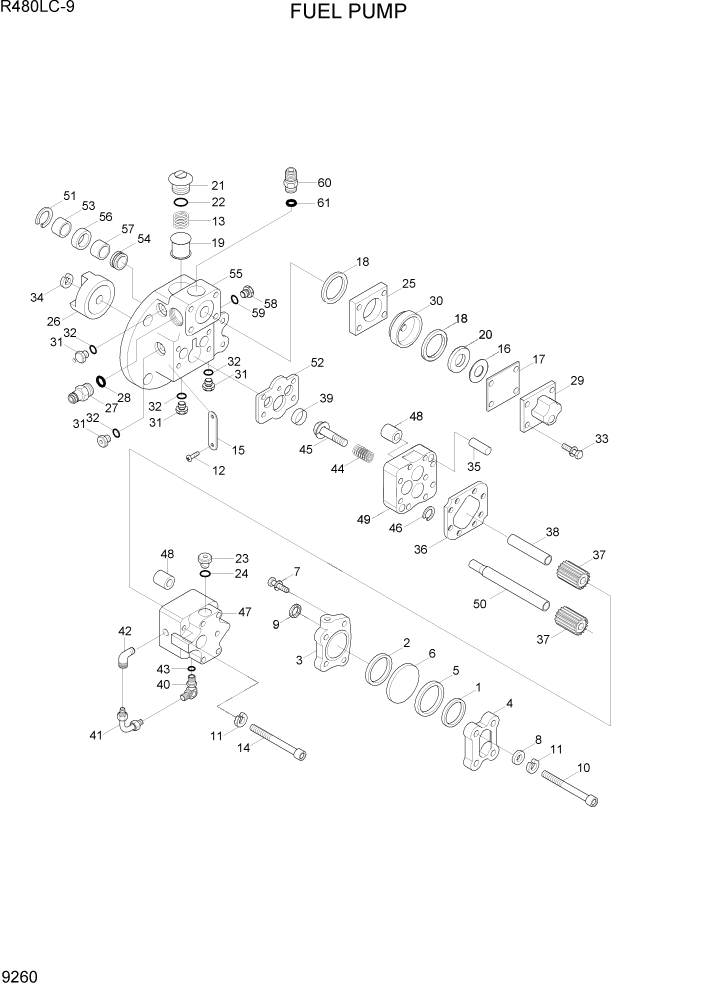

BM76340 |
DAMPER-FUEL PUMP |
|
FP2953-04 |
| 1 |
100099 |
SEAL-RECT RING |
|
|
| 2 |
139988 |
SEAL-RECT RING |
|
|
| 3 |
153336 |
BODY-F/PUMP DAMPER |
|
|
| 4 |
153338 |
COVER-F/PUMP DAMPER |
|
|
| 5 |
160514 |
WASHER-PLAIN |
|
|
| 6 |
202897 |
DIAPHRAGM-F/DAMPER |
|
|
| 7 |
3017051 |
SCREW-CAPTIVE W/CAP |
|
|
| 8 |
70704 |
WASHER-PLAIN |
|
|
| 9 |
151900 |
SEAL-RECT RING |
|
|
| 10 |
153346 |
SCREW-SOCKET HD CAP |
|
|
| 11 |
181466 |
WASHER-LOCK |
|
|
| *-1 |
3090942 |
PUMP-FUEL |
|
|
| 12 |
S-2286 |
SCREW-DRIVE |
|
|
| 13 |
70700 |
SPRING-COMPRESSION |
|
|
| 14 |
100129 |
SCREW-SOCKET HD CAP |
|
|
| 15 |
105375 |
NAMEPLATE |
|
|
| 16 |
129768 |
SPRING-VALVE |
|
|
| 17 |
129839 |
SHIELD-SHUTOFF VALVE |
|
|
| 18 |
129888 |
SEAL-RECT RING |
|
|
| 19 |
146483 |
SCREEN-FILTER |
|
|
| 20 |
196057 |
DISC-VALVE |
|
|
| 21 |
3014575 |
CAP-F/PUMP FILTER |
|
|
| 22 |
3021123 |
O-RING |
|
|
| *-2 |
3033742 |
PLUG-THREADED |
|
|
| N23 |
3079584 |
PLUG |
|
NOT |
| 24 |
3034412 |
O-RING |
|
|
| 25 |
3034451 |
HOUSING-ACTUATOR |
|
|
| 26 |
3095355 |
HUB-JAW COUPLING |
|
|
| *-3 |
3042619 |
NIPPLE-COUPLING |
|
|
| 27 |
3042620 |
NIPPLE-COUPLING |
|
|
| 28 |
3037537 |
O-RING |
|
|
| N29 |
3408421 |
SOLENOID |
|
NOT |
| 30 |
3056009 |
DISC-ACTUATOR |
|
|
| *-4 |
3056416 |
PLUG-THREADED |
|
|
| N31 |
3056003 |
PLUG-THREADED |
|
NOT |
| 32 |
3056415 |
SEAL/O-RING |
|
|
| 33 |
3065944 |
SCREW-CAPTIVE W/CAP |
|
|
| 34 |
3068768 |
RING-RECT |
|
|
| *-5 |
4010324 |
PUMP-GEAR FUEL |
|
|
| 11 |
181466 |
WASHER-LOCK |
|
|
| 35 |
64816-A |
DOWEL-PIN |
|
|
| 36 |
110855 |
GASKET-F/PUMP |
|
|
| *-6 |
3019617 |
GEAR & SHAFT |
|
|
| 37 |
119364 |
GEAR-FUEL PUMP |
|
|
| 38 |
175865 |
SHAFT-FUEL PUMP |
|
|
| 39 |
3033719 |
DOWEL-RING |
|
|
| 40 |
3033740 |
VALVE-CHECK |
|
|
| 41 |
4010514 |
TUBE-FUEL DRAIN |
|
|
| 42 |
68139 |
ELBOW-MALE ADAPTER |
|
|
| 43 |
3034412 |
O-RING |
|
|
| 44 |
4010297 |
SPRING-COMPRESSION |
|
|
| 45 |
4010296 |
PLUNGER |
|
|
| 46 |
3085615 |
RING-RETAINING |
|
|
| *-7 |
4010319 |
GEAR-FUEL PUMP |
|
|
| N47 |
3033714 |
HOUSING-F/P/GEAR |
|
NOT |
| 48 |
3033724 |
BUSHING |
|
|
| 49 |
4010318 |
COVER-F/PUMP GEAR |
|
|
| *-8 |
3095635 |
GEAR & SHAFT |
|
|
| 37 |
119364 |
GEAR-FUEL PUMP |
|
|
| 50 |
3095356 |
SHAFT-FUEL PUMP DRIVE |
|
|
| N*-9 |
3090993 |
SUPPORT-F/PUMP |
|
NOT |
| 51 |
128807 |
RING-RETAINING |
|
|
| 52 |
3096077 |
GASKET-F/PUMP |
|
|
| 53 |
3074317 |
SPACER-SEAL |
|
|
| 54 |
3074316 |
SPACER-SEAL |
|
|
| 55 |
3090996 |
SUPPORT-F/PUMP |
|
|
| *-10 |
3803477 |
KIT-OIL SEAL |
|
|
| N56 |
3084713 |
SEAL-OIL |
|
NOT |
| N57 |
3071643 |
SEAL-OIL |
|
NOT |
| *-11 |
3037536 |
PLUG-THREADED |
|
|
| N58 |
3040813 |
PLUG-THREADED |
|
NOT |
| 59 |
3037537 |
O-RING |
|
|
| *-12 |
3036865 |
UNION-MAIL |
|
|
| N60 |
3100526 |
UNION-MALE |
|
NOT |
| 61 |
3037236 |
SEAL/O-RING |
|
|
| *-13 |
3803493 |
SUPPORT- FUEL PUMP |
|
|
| * |
128807 |
RING-RETAINING |
|
|
| * |
3037536 |
PLUG-THREADED |
|
|
| * |
3037537 |
O-RING |
|
|
| N* |
3040813 |
PLUG-THREADED |
|
NOT |
| * |
3074316 |
SPACER-SEAL |
|
|
| * |
3074317 |
SPACER-SEAL |
|
|
| * |
3090996 |
SUPPORT-F/PUMP |
|
|
| * |
3096077 |
GASKET-F/PUMP |
|
|
| * |
3803477 |
KIT-OIL SEAL |
|
|
| N* |
3071643 |
SEAL-OIL |
|
NOT |
| N* |
3084713 |
SEAL-OIL |
|
NOT |
| *-14 |
4024808 |
KIT- FUEL SOLENOID |
|
|
| * |
129888 |
SEAL-RECT RING |
|
|
| N |
3408421 |
SOLENOID |
|
NOT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
NOT |
|
 |
