Номер |
Название |
|
|
| * |

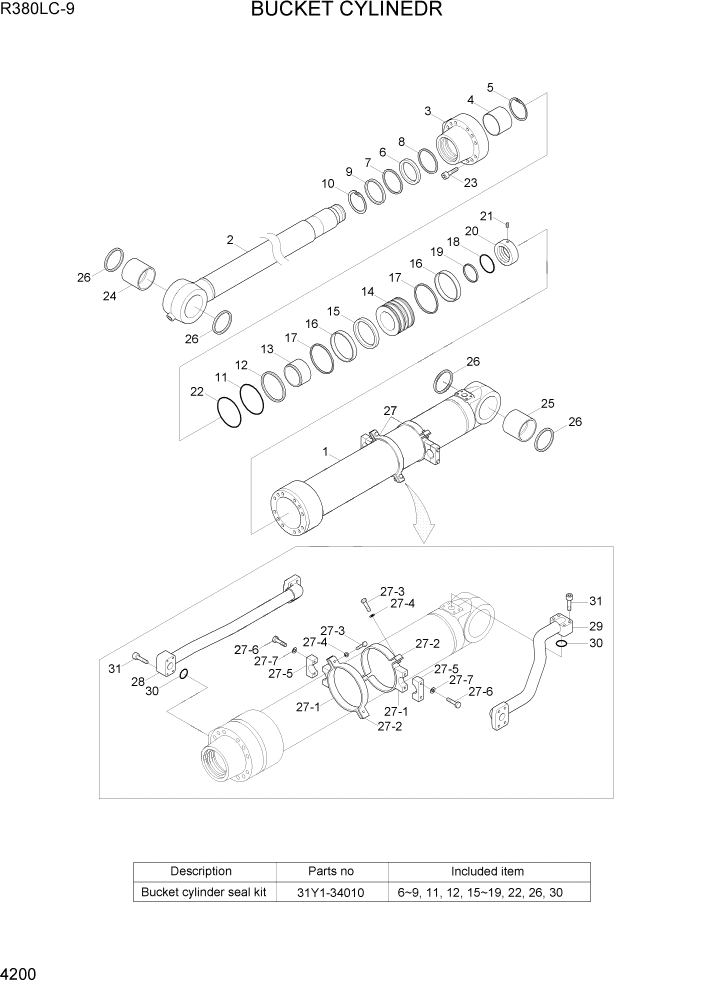

31QA-60110 |
BUCKET CYLINDER ASSY |
 |
| *-1 |
31Y1-33880 |
BUCKET CYL SUB ASSY |
| 1 |
31Y1-33890 |
TUBE ASSY |
| 2 |
31Y1-33930 |
ROD ASSY |
| 3 |
31Y1-33970 |
GLAND |
| 4 |
S732-105040 |
BUSHING-DD2 |
| 5 |
Y191-112000 |
RING-SNAP |
| K6 |
Y220-105013 |
SEAL-ROD |
| K7 |
Y180-105120 |
RING-BACK UP |
| K8 |
Y240-105012 |
RING-BUFFER |
| K9 |
Y110-105011 |
WIPER-DUST |
| 10 |
Y190-121000 |
RING-SNAP |
| K11 |
S631-140004 |
O-RING |
| K12 |
31YC-BP140 |
RING-BACK UP |
| K13 |
31YC-26090 |
RING-CUSHION |
| 14 |
31Y1-33310 |
PISTON |
| 15 |
Y420-150000 |
SEAL-PISTON |
| K16 |
Y310-150003 |
RING-WEAR |
| K17 |
Y440-150202 |
RING-DUST |
| K18 |
S632-080004 |
O-RING |
| K19 |
S642-080003 |
RING-BACK UP |
| K20 |
31YC-68090 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| 22 |
S632-145004 |
O-RING |
| 23 |
S109-240904 |
BOLT-SOCKET |
| 24 |
61Q6-05600 |
BUSHING |
| 25 |
61Q6-97420 |
BUSHING-PIN |
| 26 |
Y020-090100 |
SEAL-DUST,DLI,KPU |
| 27 |
31Y1-33980 |
BAND ASSY |
| 27-1 |
31Y1-33990 |
BAND SUB ASSY |
| 27-2 |
31YC-31420 |
BAND |
| 27-3 |
S015-120452 |
BOLT-HEX |
| 27-4 |
S411-120002 |
WASHER-SPRING |
| 27-5 |
31YC-37050 |
CLAMP-PIPE |
| 27-6 |
S015-120502 |
BOLT-HEX |
| 27-7 |
S411-120002 |
WASHER-SPRING |
| 28 |
31Y1-34000 |
PIPE ASSY-R |
| 29 |
31Y1-22710 |
PIPE ASSY-B |
| K30 |
Y171-024004 |
O-RING |
| 31 |
S107-120604 |
BOLT-SOCKET |
| K |
31Y1-34010 |
SEAL KIT |
|
|
