Номер |
Название |
|
|
| * |

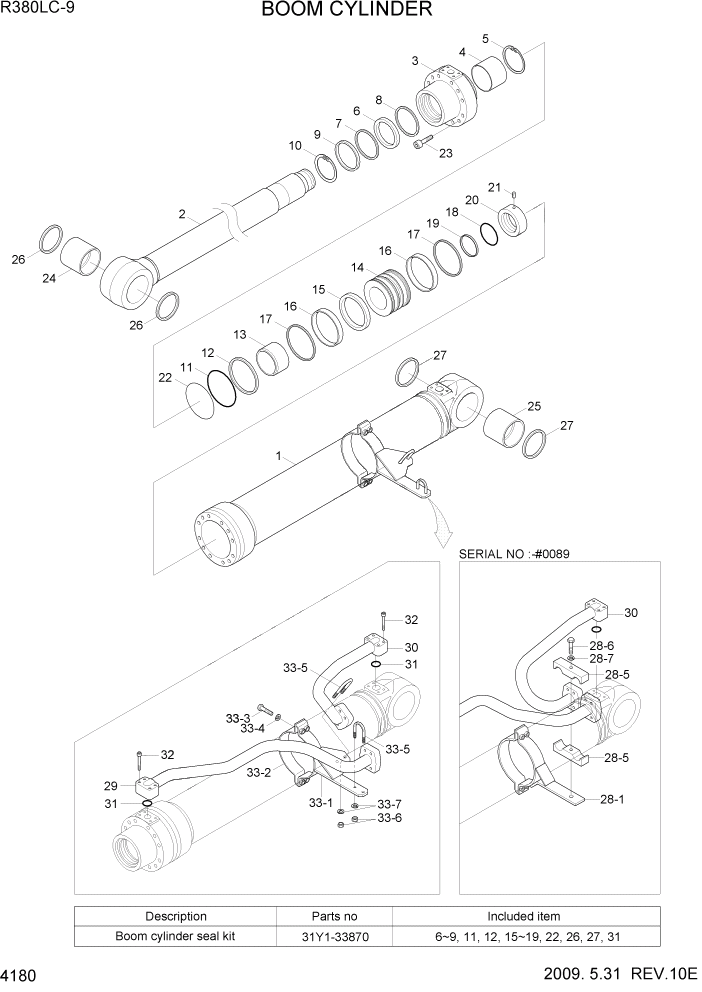

31QA-50110 |
BOOM CYLINDER ASSY-LH |
 |
| * |
31QA-50111 |
BOOM CYLINDER ASSY-LH |
| * |
31QA-50120 |
BOOM CYLINDER ASSY-RH |
| * |
31QA-50121 |
BOOM CYLINDER ASSY-RH |
| *-1 |
31Y1-33730 |
BOOM CYL SUB ASSY |
| 1 |
31Y1-33740 |
TUBE ASSY |
| 2 |
31Y1-33780 |
ROD ASSY |
| 3 |
31Y1-33820 |
GLAND |
| 4 |
S732-110045 |
BUSHING-DD2 |
| 5 |
Y191-117000 |
RING-SNAP |
| K6 |
Y220-110013 |
SEAL-ROD |
| K7 |
Y180-110020 |
RING-BACK UP |
| K8 |
Y240-110012 |
RING-BUFFER |
| K9 |
Y110-110011 |
WIPER-DUST |
| 10 |
Y190-126000 |
RING-SNAP |
| K11 |
S631-150004 |
O-RING |
| K12 |
31YC-BP150 |
RING-BACK UP |
| 13 |
31YC-26105 |
RING-CUSHION |
| 14 |
31Y1-33090 |
PISTON |
| K15 |
Y420-160000 |
SEAL-PISTON |
| K16 |
Y310-160203 |
RING-WEAR |
| K17 |
Y440-160102 |
RING-DUST |
| K18 |
S632-085004 |
O-RING |
| K19 |
31YC-CG085 |
RING-BACK UP |
| 20 |
31YC-68060 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| K22 |
31YC-99H80 |
O-RING |
| 23 |
S109-220904 |
BOLT-SOCKET |
| 24 |
61Q6-97810 |
BUSHING-PIN |
| 25 |
61Q6-97610 |
BUSHING-PIN |
| 25 |
61QH-96420 |
BUSHING-PIN |
| K26 |
Y020-110000 |
SEAL-DUST,DLI,KPU |
| K27 |
Y000-100100 |
SEAL-DUST,DLI,KPU |
| K27 |
Y020-100100 |
SEAL-DUST,DLI,KPU |
| 28 |
31Y1-33830 |
BAND ASSY |
| 28-1 |
31Y1-33840 |
BAND SUB ASSY |
| 28-2 |
31YC-32340 |
BAND |
| 28-3 |
S015-120452 |
BOLT-HEX |
| 28-4 |
S411-120002 |
WASHER-SPRING |
| 28-5 |
31YC-39031 |
CLAMP-PIPE |
| 28-6 |
S015-140602 |
BOLT-HEX |
| 28-7 |
S411-140002 |
WASHER-SPRING |
| 29 |
31Y1-33850 |
PIPE ASSY-R,LH |
| 29 |
31Y1-33851 |
PIPE ASSY-R,LH |
| 29 |
31Y1-33860 |
PIPE ASSY-R,RH |
| 30 |
31Y1-36061 |
PIPE ASSY-B,LH |
| 30 |
31Y1-36060 |
PIPE ASSY-B,LH |
| 30 |
31Y1-36071 |
PIPE ASSY-B,RH |
| K31 |
Y171-024004 |
O-RING |
| 32 |
S107-120604 |
BOLT-SOCKET |
| 33 |
31Y1-38040 |
BAND ASSY-LH |
| 33 |
31Y1-38050 |
BAND ASSY-RH |
| 33-1 |
31Y1-33840 |
BAND SUB ASSY |
| 33-1 |
31Y1-33840 |
BAND SUB ASSY |
| 33-2 |
31YC-32340 |
BAND |
| 33-3 |
S015-120452 |
BOLT-HEX |
| 33-4 |
S411-120002 |
WASHER-SPRING |
| 33-5 |
S070-053442 |
U-BOLT |
| 33-6 |
S205-101002 |
NUT-HEX |
| 33-7 |
S411-100002 |
WASHER-SPRING |
| K |
31Y1-33870 |
SEAL KIT |
|
|
