Номер |
Название |
|
|
| *-2 |
31QA-10140 |

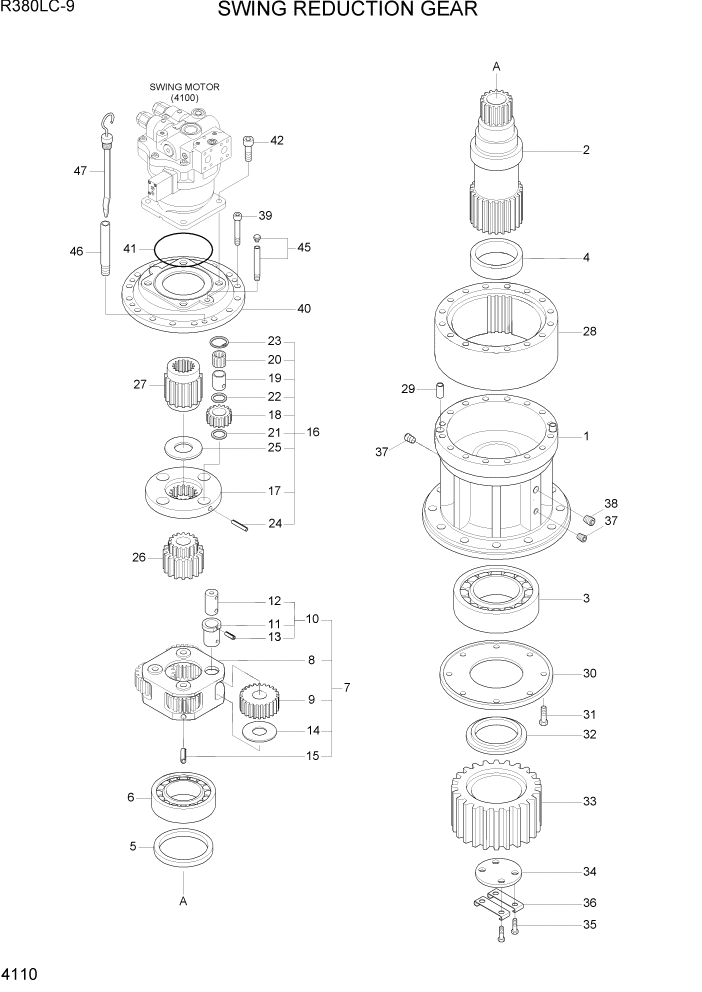

SWING REDUCTION GEAR |
 |
| 1 |
XKAQ-00738 |
CASING |
| 2 |
XKAQ-00739 |
SHAFT-DRIVE |
| 3 |
XKAQ-00146 |
BEARING-ROLLER |
| 4 |
XKAQ-00171 |
RING-SPACER |
| 5 |
XKAQ-00149 |
SEAL-OIL |
| 6 |
XKAQ-00027 |
BEARING-ROLLER |
| 7 |
XKAQ-00263 |
CARRIER ASSY 2 |
| 8 |
XKAQ-00740 |
CARRIER 2 |
| 9 |
XKAQ-00741 |
GEAR-PLANET 2 |
| 10 |
XKAQ-00742 |
PIN ASSY 2 |
| 11 |
XKAQ-00254 |
PIN 2 |
| N12 |
XKAQ-00255 |
BUSHING 2 |
| 13 |
XKAQ-00165 |
PIN-SPRING |
| 14 |
XKAQ-00156 |
WASHER |
| 15 |
XKAQ-00050 |
PIN-SPRING |
| 16 |
XKAQ-00412 |
CARRIER ASSY 1 |
| 17 |
XKAQ-00743 |
CARRIER 1 |
| 18 |
XKAQ-00414 |
GEAR-PLANET 1 |
| 19 |
XKAQ-00744 |
PIN 1 |
| 20 |
XKAQ-00030 |
CAGE-NEEDLE |
| 21 |
XKAQ-00417 |
PLATE-SIDE 1 |
| 22 |
XKAQ-00416 |
PLATE-SIDE 2 |
| 23 |
XKAQ-00041 |
RING-STOP |
| 24 |
XKAQ-00048 |
PIN-SPRING |
| 25 |
XKAQ-00260 |
RING-THRUST |
| 26 |
XKAQ-00745 |
GEAR-SUN 2 |
| 27 |
XKAQ-00746 |
GEAR-SUN 1 |
| 28 |
XKAQ-00420 |
GEAR-RING |
| 29 |
XKAQ-00072 |
PIN-KNOCK |
| 30 |
XKAQ-00747 |
PLATE-COVER |
| 31 |
XKAQ-00148 |
BOLT-HEX |
| 32 |
XKAQ-00748 |
SPACER |
| 33 |
XKAQ-00749 |
GEAR-PINION |
| 34 |
XKAQ-00299 |
PLATE-LOCK |
| 35 |
XKAQ-00042 |
BOLT-HEX |
| 36 |
XKAQ-00292 |
WASHER-LOCK |
| 37 |
XKAQ-00274 |
PLUG |
| 38 |
XKAQ-00049 |
PLUG |
| 39 |
XKAQ-00259 |
BOLT-SOCKET |
| 40 |
XKAQ-00750 |
COVER |
| 41 |
XKAQ-00751 |
O-RING |
| 42 |
XKAQ-00170 |
BOLT-HEX SOCKET |
| 43 |
XKAQ-00066 |
PLUG |
| 44 |
XKAQ-00155 |
PLUG-SOCKET |
| 45 |
XKAQ-00143 |
AIR BREATHER ASSY |
| 46 |
XKAQ-00167 |
PIPE-GAUGE |
| 47 |
XKAQ-00166 |
BAR-GAUGE |
|
|
