Номер |
Название |
|
|
| * |
@ |

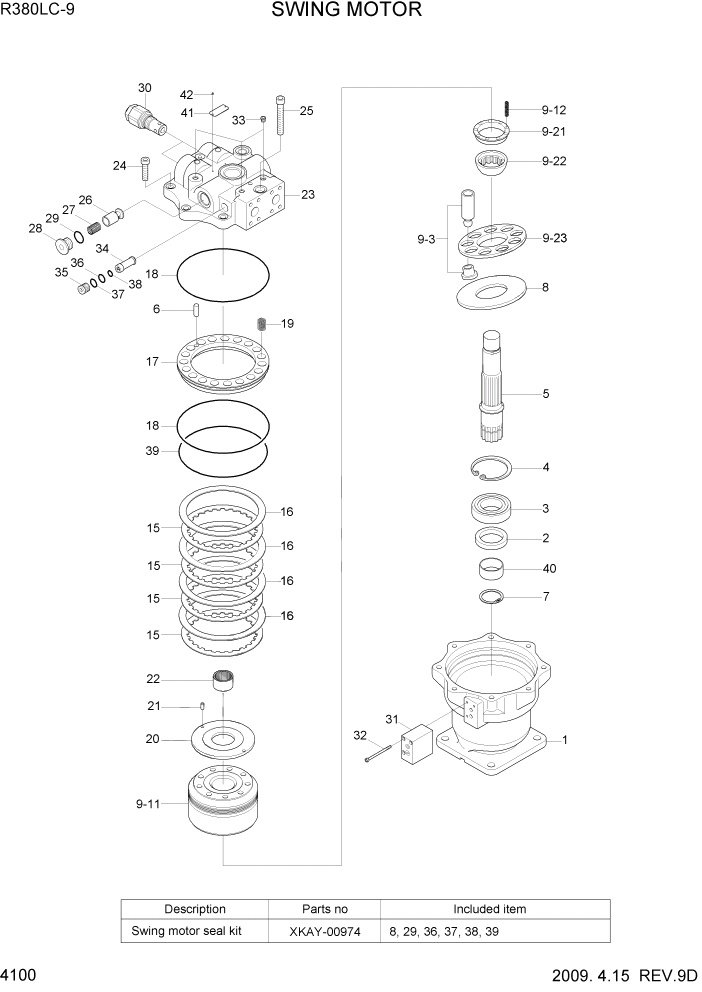

SWING MOTOR ASSY |
 |
| *-1 |
31QA-10130 |
SWING MOTOR |
| 1 |
XKAY-01143 |
BODY |
| 2 |
XKAY-00162 |
SEAL-OIL |
| 3 |
XKAY-00163 |
BEARING-ROLL |
| 4 |
XKAY-00164 |
RING-SNAP |
| 5 |
XKAY-00165 |
SHAFT |
| 6 |
XKAY-00166 |
PIN |
| 7 |
XKAY-00167 |
RING-STOP |
| K8 |
XKAY-00168 |
PLATE-SHOE |
| 9 |
XKAY-01473 |
ROTARY KIT |
| 9-1 |
XKAY-01474 |
CYLINDER BLOCK KIT |
| N9-11 |
XKAY-01146 |
CYLINDER BLOCK |
| N9-12 |
XKAY-00170 |
SPRING |
| 9-2 |
XKAY-01147 |
RETAINER KIT |
| N9-21 |
XKAY-00171 |
GUIDE SEAT-BALL |
| N9-22 |
XKAY-00172 |
GUIDE-BALL |
| N9-23 |
XKAY-00173 |
PLATE-SET |
| 9-3 |
XKAY-00174 |
PISTON ASSY |
| 15 |
XKAY-00175 |
PLATE-FRICTION |
| 16 |
XKAY-00176 |
PLATE |
| 17 |
XKAY-00177 |
PISTON-BRAKE |
| N18 |
XKAY-01446 |
O-RING |
| 19 |
XKAY-00179 |
SPRING |
| N20 |
XKAY-00180 |
PLATE-VALVE |
| 21 |
XKAY-00181 |
PIN |
| 22 |
XKAY-00182 |
BEARING-NEEDLE |
| 23 |
XKAY-01149 |
COVER-REAR |
| N24 |
XKAY-00184 |
BOLT-WRENCH |
| N25 |
XKAY-00185 |
BOLT-WRENCH |
| 26 |
XKAY-00186 |
POPPET |
| 27 |
XKAY-00187 |
SPRING |
| 28 |
XKAY-00188 |
PLUG |
| KN29 |
XKAY-01447 |
O-RING |
| 30 |
XKAY-01151 |
RELIEF VALVE ASSY |
| 31 |
XKAY-01470 |
TIME DELAY VALVE ASSY |
| N32 |
XKAY-00149 |
BOLT-SOCKET |
| N33 |
XKAY-00140 |
PLUG |
| 34 |
XKAY-00314 |
REACTIONLESS VLV ASSY |
| 35 |
XKAY-00322 |
PLUG |
| KN36 |
XKAY-00247 |
O-RING |
| KN37 |
XKAY-00605 |
RING-BACK UP |
| KN38 |
XKAY-00324 |
O-RING |
| K39 |
XKAY-01448 |
O-RING |
| 40 |
XKAY-00193 |
BUSHING |
| N41 |
XKAY-01154 |
NAME PLATE |
| N42 |
RO205 |
RIVET |
| *-2 |
@ |
TRAVEL REDUCTION GEAR |
| K |
XKAY-00974 |
SEAL KIT |
|
|
