Номер |
Название |
|
|
| * |
31NA-17110 |

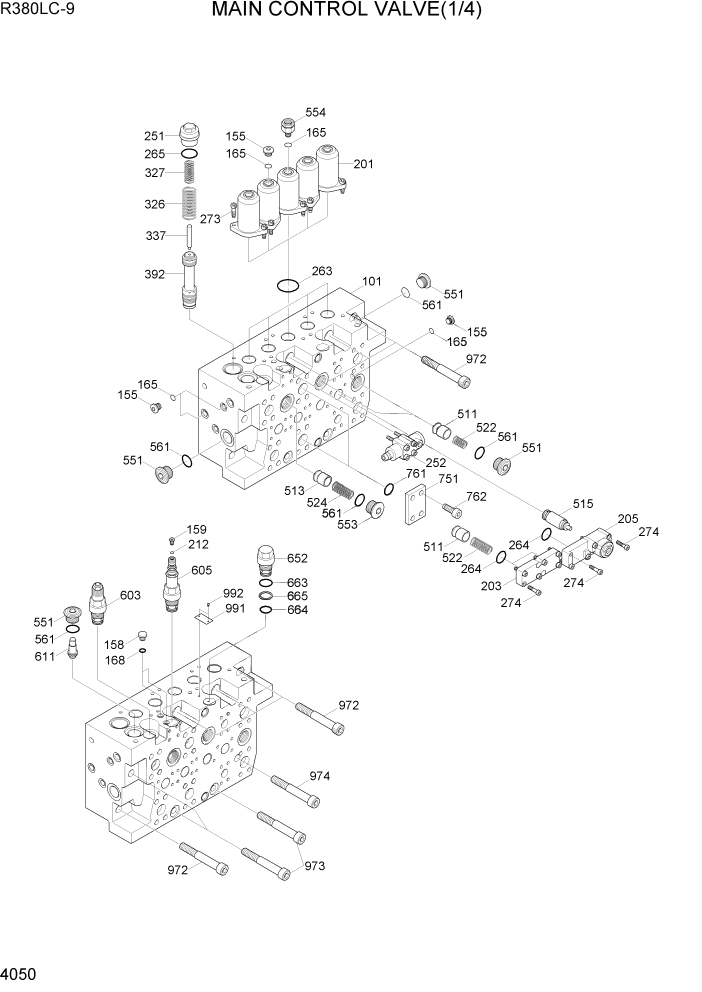

MAIN CONTROL VALVE |
 |
| 101 |
XJBN-01280 |
CASING A |
| 155 |
XJBN-00814 |
PLUG |
| 158 |
XJBN-01218 |
PLUG |
| 159 |
XJBN-00749 |
PLUG |
| 161 |
XJBN-01282 |
O-RING |
| 162 |
XJBN-01221 |
O-RING |
| 163 |
XJBN-00282 |
O-RING |
| 165 |
XJBN-00233 |
O-RING |
| 168 |
XJBN-00044 |
O-RING |
| 201 |
XJBN-01283 |
COVER-SPRING |
| 203 |
XJBN-01285 |
COVER-SPRING |
| 205 |
XJBN-01287 |
COVER SUB-B/PRIORITY |
| 212 |
XJBN-00045 |
O-RING |
| 251 |
XJBN-01291 |
PLUG |
| 252 |
XJBN-01355 |
LOCK VAVLE ASSY |
| 263 |
XJBN-01293 |
O-RING |
| 264 |
XJBN-00094 |
O-RING |
| 265 |
XJBN-01294 |
O-RING |
| 274 |
XJBN-00610 |
BOLT-SOCKET |
| 326 |
XJBN-01303 |
SPRING |
| 327 |
XJBN-01304 |
SPRING |
| 335 |
XJBN-01306 |
SHIM |
| 337 |
XJBN-01308 |
ROD |
| 392 |
XJBN-01316 |
SPOOL-BY PASS CUT |
| 511 |
XJBN-01320 |
POPPET |
| 513 |
XJBN-01321 |
POPPET |
| 515 |
XJBN-01323 |
BOOM PRIORITY VLV ASSY |
| 522 |
XJBN-01324 |
SPRING |
| 524 |
XJBN-01325 |
SPRING |
| 551 |
XJBN-01326 |
PLUG |
| 553 |
XJBN-01327 |
PLUG |
| 554 |
XJBN-01328 |
PLUG-STOPPER |
| 561 |
XJBN-01330 |
O-RING |
| 562 |
XJBN-00231 |
O-RING |
| 603 |
XJBN-01332 |
PORT RELIEF ASSY |
| 605 |
XJBN-01334 |
PORT RELIEF ASSY |
| 611 |
XJBN-01335 |
NEGATIVE RELIEF VLV ASSY |
| 652 |
XJBN-01336 |
PLUG |
| 663 |
XJBN-01223 |
O-RING |
| 664 |
XJBN-00477 |
O-RING |
| 665 |
XJBN-00474 |
RING-BACK UP |
| 751 |
XJBN-01337 |
FLANGE |
| 761 |
XJBN-00342 |
O-RING |
| 762 |
XJBN-01340 |
SCREW |
| 972 |
XJBN-01342 |
SCREW |
| 973 |
XJBN-01343 |
SCREW |
| 974 |
XJBN-01344 |
SCREW |
| 991 |
XJBN-00156 |
NAME PLATE |
| 992 |
XJBN-00455 |
PIN |
|
|
