Номер |
Название |
|
|
| * |

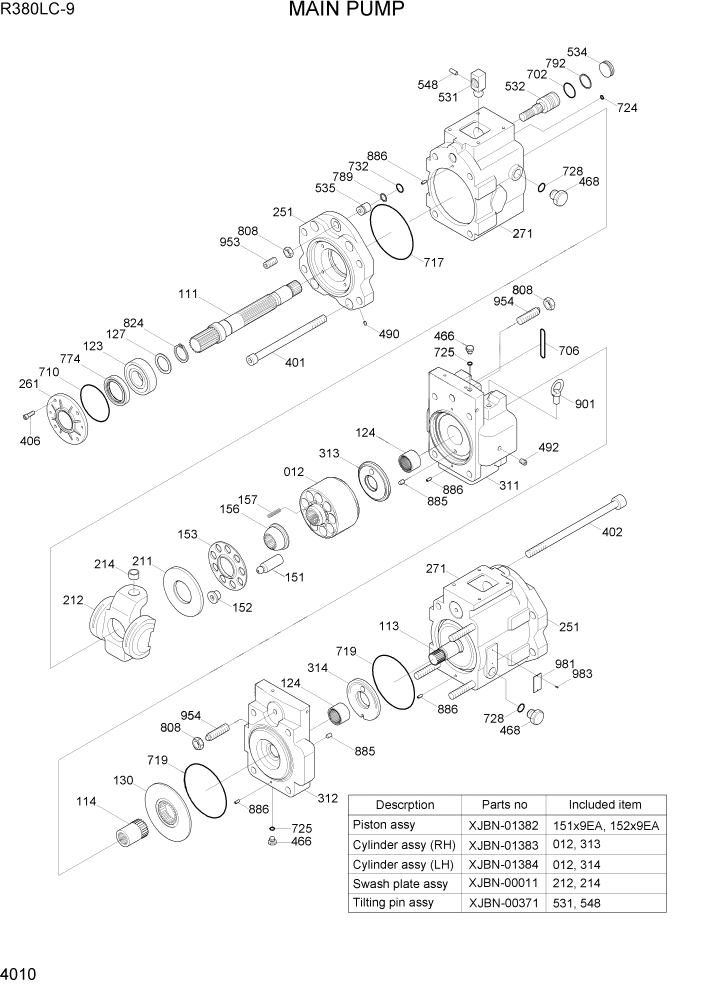

31QA-10010 |
PUMP ASSY |
 |
| *-1 |
@ |
MAIN PUMP UNIT |
| S012 |
XJBN-00680 |
BLOCK-CYLINDER |
| 111 |
XJBN-00574 |
SHAFT-DRIVE(F) |
| 113 |
XJBN-00573 |
SHAFT-DRIVE(R) |
| 114 |
XJBN-00572 |
COUPLING-SPLINE |
| 123 |
XJBN-00571 |
BEARING-ROLLER |
| 124 |
XJBN-00570 |
BEARING-NEEDLE |
| 127 |
XJBN-00569 |
SPACER-BEARING |
| 130 |
XJBN-00568 |
BOOSTER |
| S151 |
XJBN-00681 |
PISTON |
| S152 |
XJBN-01385 |
SHOE |
| 153 |
XJBN-00020 |
PLATE-SET |
| 156 |
XJBN-00564 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00541 |
SPRING-CYLINDER |
| 211 |
XJBN-00023 |
PLATE-SHOE |
| S212 |
XJBN-00012 |
PLATE-SWASH |
| S214 |
XJBN-00013 |
BUSHING-TILTING |
| 251 |
XJBN-00560 |
SUPPORT-S.P |
| 261 |
XJBN-00025 |
COVER(FR)-SEAL |
| 271 |
XJBN-01386 |
CASING-PUMP |
| 311 |
XJBN-00559 |
COVER-VALVE(F) |
| 312 |
XJBN-00558 |
COVER-VALVE(R) |
| S313 |
XJBN-01387 |
PLATE(R)-VALVE |
| S314 |
XJBN-01388 |
PLATE(L)-VALVE |
| 401 |
XJBN-00028 |
SCREW |
| 402 |
XJBN-00555 |
SCREW-HEX SOC HD |
| 406 |
XJBN-00029 |
SCREW-HEX |
| 466 |
XJBN-00030 |
PLUG |
| 468 |
XJBN-00031 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| 492 |
XJBN-00234 |
PLUG |
| S531 |
XJBN-00369 |
PIN-TILTING |
| 532 |
XJBN-00033 |
PISTON-SERVO |
| 534 |
XJBN-00034 |
STOPPER(L) |
| 535 |
XJBN-00035 |
STOPPER(S) |
| S548 |
XJBN-00360 |
PIN-FEED BACK |
| 702 |
XJBN-00040 |
O-RING |
| 706 |
XJBN-00554 |
O-RING |
| 710 |
XJBN-00041 |
O-RING |
| 717 |
XJBN-00042 |
O-RING |
| 719 |
XJBN-00043 |
O-RING |
| 724 |
XJBN-00361 |
O-RING |
| 725 |
XJBN-00362 |
O-RING |
| 728 |
XJBN-00363 |
O-RING |
| 732 |
XJBN-00047 |
O-RING |
| 774 |
XJBN-00906 |
SEAL-OIL |
| 789 |
XJBN-00049 |
RING-BACK UP |
| 792 |
XJBN-00050 |
RING-BACK UP |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00052 |
RING-SNAP |
| 885 |
XJBN-00053 |
PIN-2 |
| 886 |
XJBN-00054 |
PIN-SPRING |
| 901 |
XJBN-00055 |
BOLT-EYE |
| 953 |
XJBN-00056 |
SCREW-SET |
| 954 |
XJBN-00553 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 983 |
XJBN-00341 |
PIN |
| *-2 |
@ |
REGULATOR ASSY |
| *-3 |
@ |
REGULATOR ASSY |
| *-4 |
@ |
GEAR PUMP |
| S011 |
XJBN-01382 |
PISTON ASSY |
| S013 |
XJBN-01383 |
CYLINDER ASSY-RH |
| S014 |
XJBN-01384 |
CYLINDER ASSY-LH |
| S030 |
XJBN-00011 |
SWASH PLATE ASSY |
| S530 |
XJBN-00371 |
TILTING PIN ASSY |
|
|
