Номер |
Название |
|
|
| * |
@ |

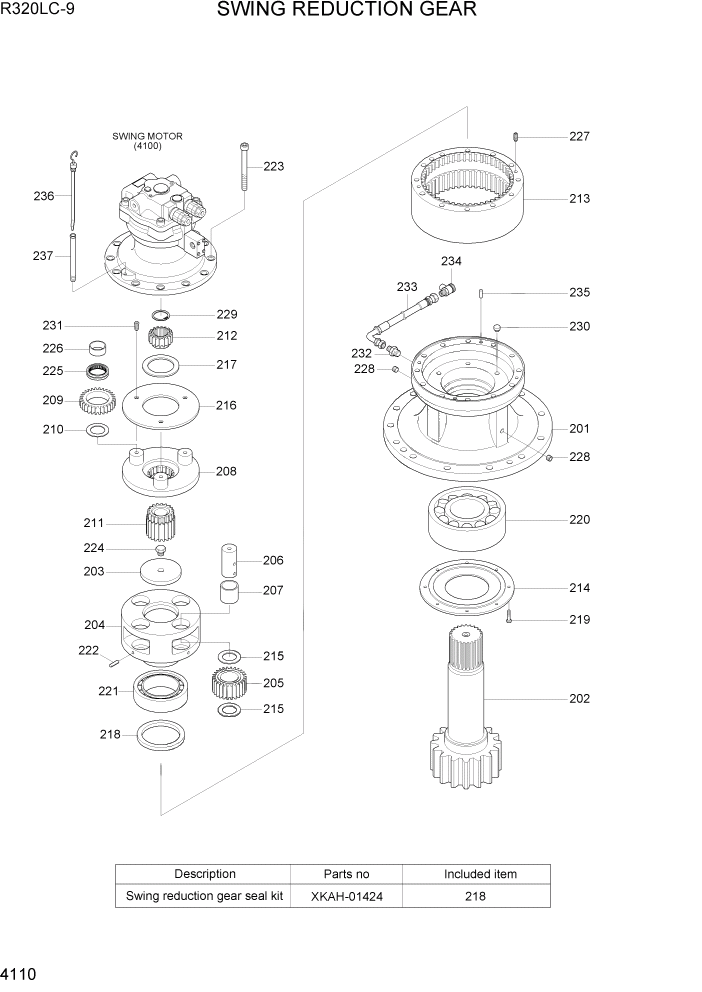

SWING MOTOR ASSY |
 |
| 201 |
XKAH-01425 |
CASING |
| 202 |
XKAH-01426 |
SHAFT-PINION |
| 203 |
XKAH-01240 |
PLATE-PRELOAD |
| 204 |
XKAH-01241 |
CARRIER 2 |
| 205 |
XKAH-01242 |
GEAR-PLANET 2 |
| 206 |
XKAH-01243 |
PIN |
| 207 |
XKAH-01244 |
BUSHING |
| 208 |
XKAH-01245 |
CARRIER 1 |
| 209 |
XKAH-01246 |
GEAR-PLANET 1 |
| 210 |
XKAH-01247 |
WASHER-THRUST 1 |
| 211 |
XKAH-01427 |
GEAR-SUN 2 |
| 212 |
XKAH-01249 |
GEAR-SUN 1 |
| 213 |
XKAH-01428 |
GEAR-RING |
| 214 |
XKAH-01251 |
COVER |
| 215 |
XKAH-01252 |
WASHER-THRUST 2 |
| 216 |
XKAH-01253 |
PLATE-THRUST |
| 217 |
XKAH-01254 |
WASHER-THRUST |
| K218 |
XKAH-01255 |
SEAL-OIL |
| 219 |
XKAH-01256 |
BOLT-SOCKET |
| 220 |
XKAH-01257 |
ROLLER BEARING |
| 221 |
XKAH-01429 |
ROLLER BEARING |
| 222 |
XKAH-01259 |
PIN-SPRING |
| 223 |
XKAH-01260 |
BOLT-SOCKET |
| 224 |
XKAH-01261 |
BOLT-HEX |
| 225 |
XKAH-01003 |
NEEDLE BEARING |
| 226 |
XKAH-01262 |
RING-INNER |
| 227 |
XKAH-01263 |
BOLT-SOCKET |
| 228 |
XKAH-00977 |
PLUG |
| 229 |
XKAH-00026 |
RING-SNAP |
| 230 |
XKAH-01264 |
MAGNET |
| 231 |
XKAH-01216 |
SCREW |
| 232 |
XKAH-01430 |
CONECTOR |
| 233 |
XKAH-01431 |
HOSE ASSY |
| 234 |
XKAH-01432 |
VALVE-DRAIN |
| 235 |
XKAH-01433 |
PIN |
| 236 |
XKAH-01266 |
LEVEL GAUGE ASSY |
| 237 |
XKAH-01267 |
AIR BREATHER ASSY |
| N |
XKAH-01424 |
SEAL KIT |
|
|
