Номер |
Название |
|
|
| *-2 |
31Q8-10140 |

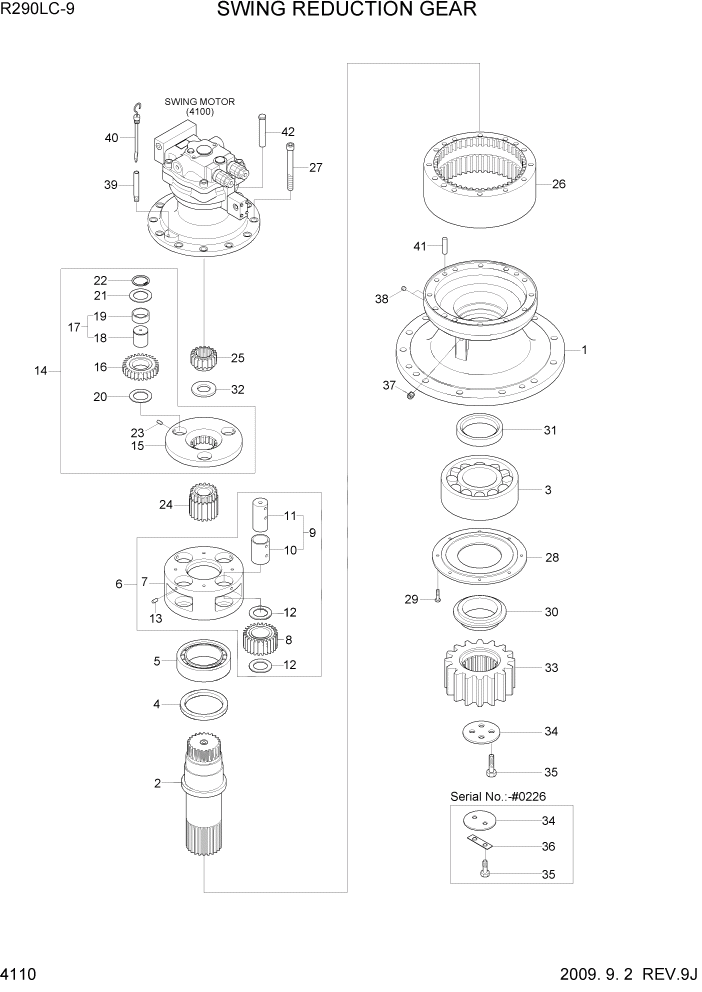

SWING REDUCTION GEAR |
 |
| *-2 |
31Q8-10141 |
SWING REDUCTION GEAR |
| 1 |
XKAQ-00451 |
CASING |
| 2 |
XKAQ-00452 |
SHAFT-DRIVE |
| 2 |
XKAQ-00760 |
SHAFT-DRIVE |
| 3 |
XKAQ-00146 |
BEARING-ROLLER |
| 4 |
XKAQ-00149 |
SEAL-OIL |
| 5 |
XKAQ-00027 |
BEARING-ROLLER |
| 6 |
XKAQ-00467 |
CARRIER ASSY 2 |
| 7 |
XKAQ-00468 |
CARRIER-2 |
| 8 |
XKAQ-00469 |
GEAR-PLANET 2 |
| 9 |
XKAQ-00470 |
PIN ASSY 2 |
| N10 |
XKAQ-00471 |
PIN-2 |
| N11 |
XKAQ-00472 |
BUSHING 2 |
| 12 |
XKAQ-00435 |
WASHER-THRUST |
| 13 |
XKAQ-00050 |
PIN-SPRING |
| 14 |
XKAQ-00473 |
CARRIER ASSY 1 |
| 15 |
XKAQ-00453 |
CARRIER-1 |
| 16 |
XKAQ-00454 |
GEAR-PLANET 1 |
| 17 |
XKAQ-00440 |
PIN ASSY 1 |
| N18 |
XKAQ-00441 |
PIN 1 |
| N19 |
XKAQ-00079 |
BUSHING-1 |
| 20 |
XKAQ-00417 |
PLATE-SIDE 1 |
| 21 |
XKAQ-00416 |
PLATE-SIDE 2 |
| 22 |
XKAQ-00041 |
RING-STOP |
| 23 |
XKAQ-00048 |
PIN-SPRING |
| 24 |
XKAQ-00455 |
GEAR-SUN 2 |
| 25 |
XKAQ-00456 |
GEAR-SUN 1 |
| 26 |
XKAQ-00457 |
RING-GEAR |
| 27 |
XKAQ-00466 |
BOLT-SOCKET |
| 28 |
XKAQ-00626 |
COVER PLATE |
| 29 |
XKAQ-00064 |
BOLT-HEX |
| 30 |
XKAQ-00627 |
SPACER |
| 31 |
XKAQ-00628 |
RING-SPACER |
| 32 |
XKAQ-00447 |
PLATE-THRUST 3 |
| 33 |
XKAQ-00629 |
GEAR-PINION |
| 34 |
XKAQ-00630 |
PLATE-LOCK |
| 34 |
XKAQ-00761 |
PLATE-LOCK |
| 35 |
XKAQ-00042 |
BOLT-HEX |
| 35 |
XKAQ-00756 |
BOLT-HEX |
| 36 |
XKAQ-00292 |
WASHER-LOCK |
| 37 |
XKAQ-00049 |
PLUG |
| 38 |
XKAQ-00066 |
PLUG |
| 39 |
XKAQ-00035 |
PIPE-GAUGE |
| 40 |
XKAQ-00034 |
BAR-GAUGE |
| 41 |
XKAQ-00072 |
PIN-KNOCK |
| 42 |
XKAQ-00143 |
AIR BREATHER ASSY |
| N |
@ |
NOT SUPPLIED PARTS |
|
|
