Номер |
Название |
|
|
| * |
31Q8-10010 |

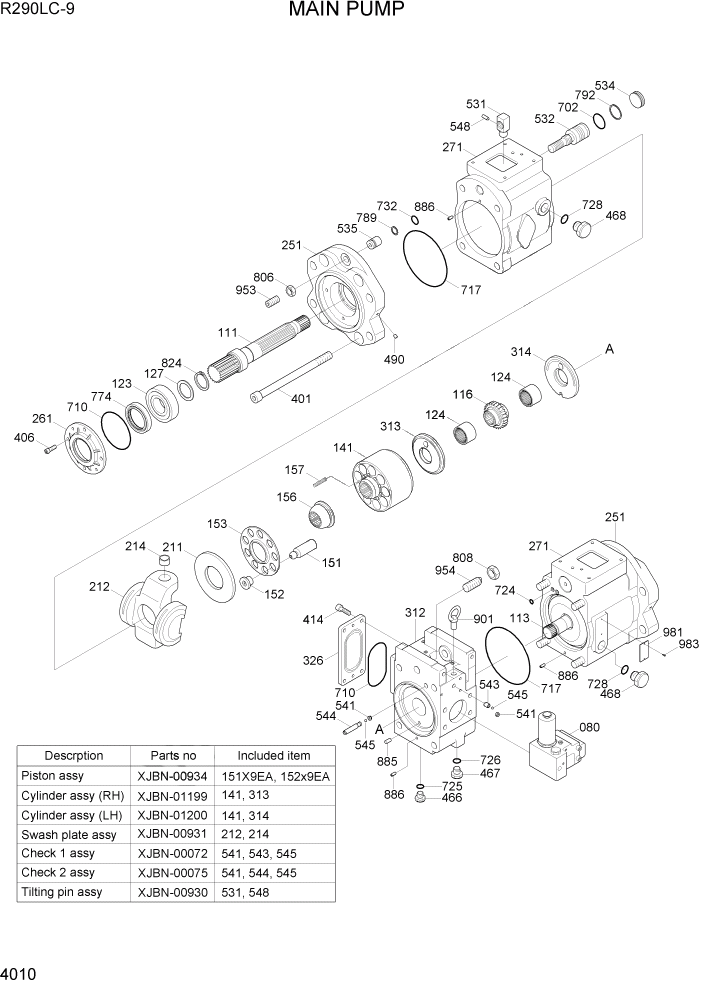

MAIN PUMP |
 |
| *-1 |
@ |
MAIN PUMP UNIT |
| 111 |
XJBN-00953 |
SHAFT(F)-DRIVE |
| 113 |
XJBN-00952 |
SHAFT(R)-DRIVE |
| 116 |
XJBN-00951 |
GEAR-1ST |
| 123 |
XJBN-00950 |
BEARING-ROLLER |
| 124 |
XJBN-00949 |
BEARING-NEEDLE |
| 127 |
XJBN-00081 |
SPACER-BEARING |
| NS141 |
XJBN-00948 |
BLOCK-CYLINDER |
| NS151 |
XJBN-00947 |
PISTON |
| NS152 |
XJBN-00946 |
SHOE |
| 153 |
XJBN-00945 |
PLATE-SET |
| 156 |
XJBN-00083 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00944 |
SPRING-CYLINDER |
| 211 |
XJBN-00085 |
PLATE-SHOE |
| NS212 |
XJBN-00943 |
PLATE-SWASH |
| NS214 |
XJBN-00071 |
BUSHING-TILTING |
| 251 |
XJBN-00942 |
SUPPORT-SP |
| 261 |
XJBN-00941 |
COVER(F)-SEAL |
| 271 |
XJBN-01034 |
CASING-PUMP |
| 312 |
XJBN-00940 |
BLOCK-VALVE |
| NS313 |
XJBN-01197 |
PLATE(R)-VALVE |
| NS314 |
XJBN-01198 |
PLATE(L)-VALVE |
| N326 |
XJBN-00937 |
COVER |
| 401 |
XJBN-00090 |
SCREW-HEX SOC HD |
| 406 |
XJBN-00355 |
SCREW-HEX SOC HD |
| 414 |
XJBN-00160 |
SCREW-SOCKET |
| 466 |
XJBN-00356 |
PLUG |
| 467 |
XJBN-00936 |
PLUG |
| 468 |
XJBN-00357 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| NS531 |
XJBN-00956 |
PIN-TILTING |
| 532 |
XJBN-00955 |
PISTON-SERVO |
| 534 |
XJBN-00092 |
STOPPER(L) |
| 535 |
XJBN-00093 |
STOPPER(S) |
| NS541 |
XJBN-00859 |
SEAT |
| NS543 |
XJBN-00860 |
STOPPER |
| NS544 |
XJBN-00861 |
STOPPER |
| NS545 |
XJBN-00359 |
BALL-STEEL |
| NS548 |
XJBN-00360 |
PIN-FEED BACK |
| 702 |
XJBN-00862 |
O-RING |
| 710 |
XJBN-00878 |
O-RING |
| 717 |
XJBN-00096 |
O-RING |
| 724 |
XJBN-00361 |
O-RING |
| 725 |
XJBN-00362 |
O-RING |
| 726 |
XJBN-00233 |
O-RING |
| 728 |
XJBN-00363 |
O-RING |
| 732 |
XJBN-00863 |
O-RING |
| 774 |
XJBN-00906 |
SEAL-OIL |
| 789 |
XJBN-00864 |
RING-BACK UP |
| 792 |
XJBN-00865 |
RING-BACK UP |
| 806 |
XJBN-00396 |
NUT-HEX |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00866 |
RING-SNAP |
| 885 |
XJBN-00103 |
PIN-VALVE PLATE |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00393 |
BOLT-EYE |
| 953 |
XJBN-00954 |
SCREW-SET |
| 954 |
XJBN-00106 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 983 |
XJBN-00341 |
PIN |
| *-2 |
@ |
REGULATOR |
| *-4 |
@ |
GEAR PUMP |
| 80 |
XJBN-00014 |
EPPR VALVE ASSY |
| S011 |
XJBN-00934 |
PISTON ASSY |
| S013 |
XJBN-01199 |
CYLINDER ASSY-RH |
| S014 |
XJBN-01200 |
CYLINDER ASSY-LH |
| S030 |
XJBN-00931 |
SWASH PLATE ASSY |
| S041 |
XJBN-00072 |
CHECK VALVE ASSY 1 |
| S042 |
XJBN-00075 |
CHECK VALVE ASSY 2 |
| S530 |
XJBN-00930 |
TILTING PIN ASSY |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
