Номер |
Название |
|
|
| * |

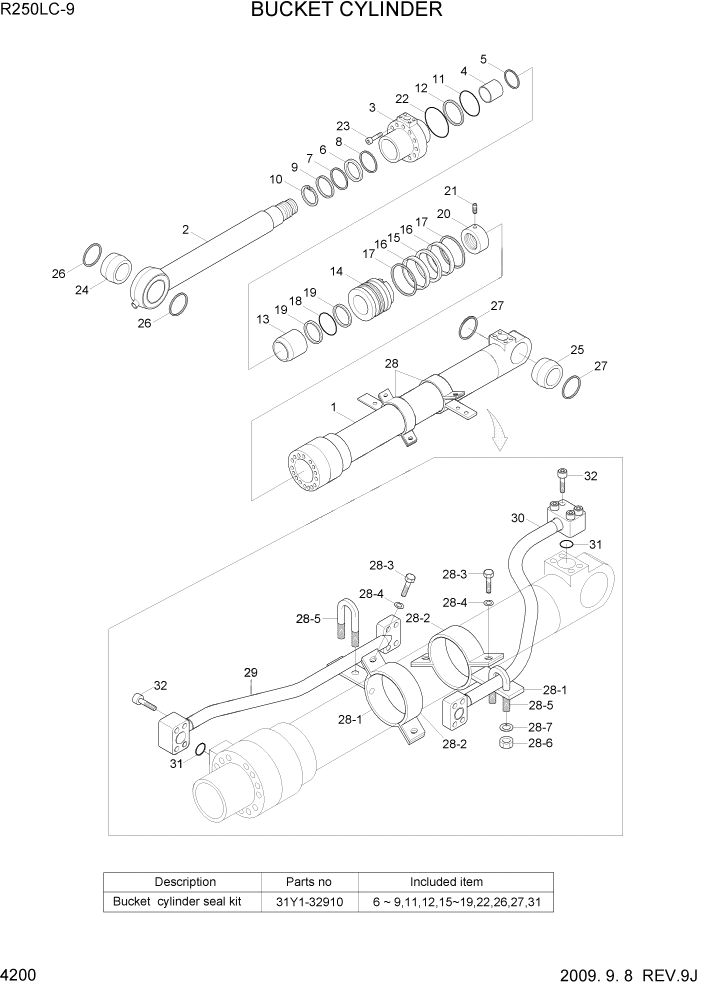

31Q7-60110 |
BUCKET CYLINDER ASSY |
 |
| *-1 |
31Y1-32680 |
BUCKET CYL SUB ASSY |
| 1 |
31Y1-32690 |
TUBE ASSY |
| 2 |
31Y1-32760 |
ROD ASSY |
| 3 |
31Y1-32810 |
GLAND |
| 4 |
S732-090030 |
BUSHING-DD2 |
| 5 |
Y191-097000 |
RING-SNAP |
| K6 |
Y220-090013 |
SEAL-ROD |
| K7 |
Y180-090020 |
RING-BACK UP |
| K8 |
Y240-090012 |
RING-BUFFER |
| K9 |
Y110-090011 |
WIPER-DUST |
| 10 |
Y190-104000 |
RING-SNAP |
| K11 |
S631-120004 |
O-RING |
| K12 |
31YC-BP120 |
RING-BACK UP |
| 13 |
31YC-26070 |
RING-CUSHION |
| 14 |
31Y1-32850 |
PISTON |
| K15 |
Y420-130000 |
SEAL-PISTON |
| K16 |
Y310-130203 |
RING-WEAR |
| K17 |
Y440-130002 |
RING-DUST |
| K18 |
S632-065004 |
O-RING |
| K19 |
S642-065003 |
RING-BACK UP |
| 20 |
31YC-68080 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| K22 |
S632-130004 |
O-RING |
| 23 |
S109-180854 |
BOLT-SOCKET |
| 24 |
61Q6-05580 |
BUSHING-PIN |
| 25 |
61Q6-97410 |
BUSHING-PIN |
| K26 |
Y020-080000 |
SEAL-DUST,DLI,KPU |
| K27 |
Y020-090100 |
SEAL-DUST,DLI,KPU |
| 28 |
31Y1-32870 |
BAND ASSY |
| 28-1 |
31Y1-32880 |
BAND SUB ASSY |
| 28-2 |
31YC-31520 |
BAND |
| 28-3 |
S011-100352 |
BOLT-HEX |
| 28-4 |
S411-100002 |
WASHER-SPRING |
| 28-5 |
S070-053442 |
U-BOLT |
| 28-6 |
S205-101002 |
NUT-HEX |
| 28-7 |
S411-100002 |
WASHER-SPRING |
| 29 |
31Y1-30950 |
PIPE ASSY-R |
| 30 |
31Y1-32900 |
PIPE ASSY-B |
| K31 |
Y171-024004 |
O-RING |
| 32 |
S107-120554 |
BOLT-SOCKET |
| K |
31Y1-32910 |
SEAL KIT |
|
|
