Номер |
Название |
|
|
| * |
@ |

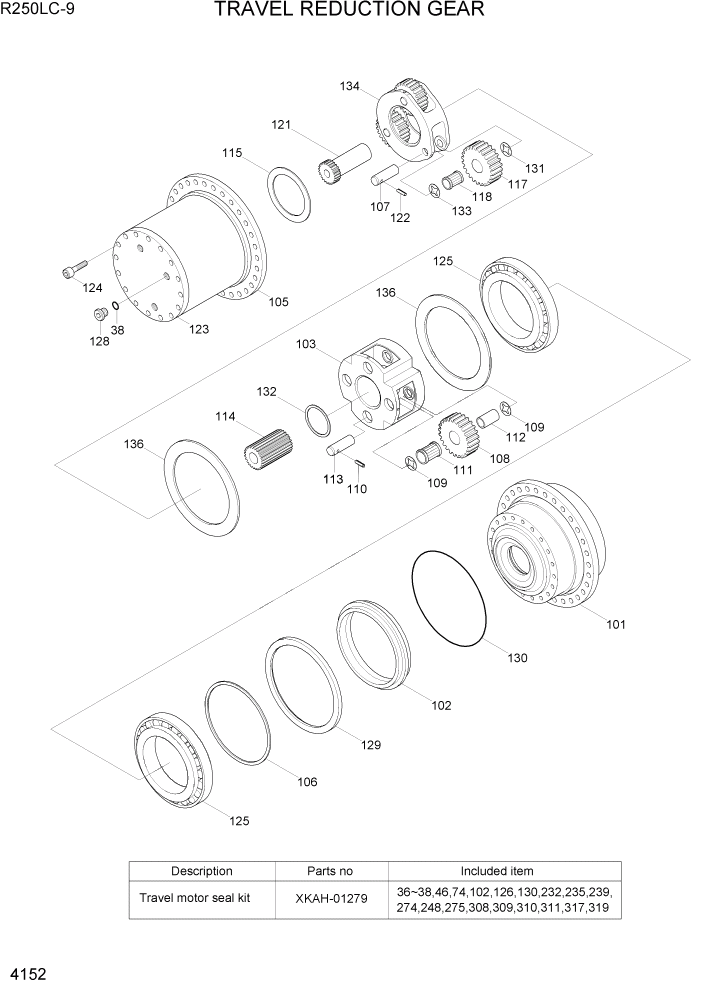

TRAVEL MOTOR ASSY |
 |
| *-1 |
XKAH-01095 |
REDUCTION PART |
| *-11 |
XKAH-01421 |
CARRIER ASSY-NO.1 |
| 107 |
XKAH-01110 |
SHAFT BEARING(R) |
| 117 |
XKAH-01109 |
PLANETARY GEAR(R) |
| 118 |
XKAH-01003 |
NEEDLE BEARING |
| 122 |
XKAH-01114 |
PIN SPRING |
| 131 |
XKAH-01111 |
THRUST WASHER(R) |
| N134 |
XKAH-01285 |
CARRIER NO1 |
| *-12 |
XKAH-01422 |
CARRIER ASSY-NO.2 |
| N103 |
XKAH-01282 |
CARRIER NO2 |
| 108 |
XKAH-01102 |
GEAR-PLANET 1 |
| 109 |
XKAH-01101 |
THRUST WASHER(F) |
| 110 |
XKAH-01113 |
PIN SPRING |
| 111 |
XKAH-01103 |
NEEDLE BEARING |
| 112 |
XKAH-01104 |
FLOATING BUSHING |
| 113 |
XKAH-01105 |
SHAFT BEARING(F) |
| *-13 |
XKAH-01420 |
PLUG ASSY-RO,PF1/2 |
| 38 |
XKAH-00035 |
O-RING |
| 128 |
XKAH-00032 |
PLUG-RO |
| 101 |
XKAH-01281 |
SPINDLE |
| 102 |
XKAH-00916 |
SEAL-FLOATING |
| 105 |
XKAH-01097 |
HUB |
| 106 |
XKAH-00348 |
PIECE-DISTANCE |
| 114 |
XKAH-01107 |
SUN GEAR |
| 115 |
XKAH-01108 |
SNAP RING |
| 121 |
XKAH-01116 |
DRIVE GEAR |
| 123 |
XKAH-01117 |
COVER |
| 124 |
XKAH-00755 |
BOLT-SOCKET |
| 125 |
XKAH-01099 |
A/BALL BEARING |
| 126 |
XKAH-00028 |
O-RING |
| 129 |
XKAH-01283 |
SEAL RING |
| 130 |
XKAH-00335 |
O-RING |
| 132 |
XKAH-01284 |
THRUST WASHER(M) |
| 133 |
XKAH-00344 |
PLATE-THRUST |
| 136 |
XKAH-01286 |
SHIM PLATE |
| *-2 |
@ |
CONTROL PART ASSY |
| *-3 |
@ |
HYD MOTOR ASSY |
| *-4 |
@ |
RELIEF VALVE ASSY |
| K |
XKAH-01279 |
SEAL KIT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
