Номер |
Название |
|
|
| * |
@ |
SWING MOTOR ASSY |
 |
| *-2 |
31EN-10071 |

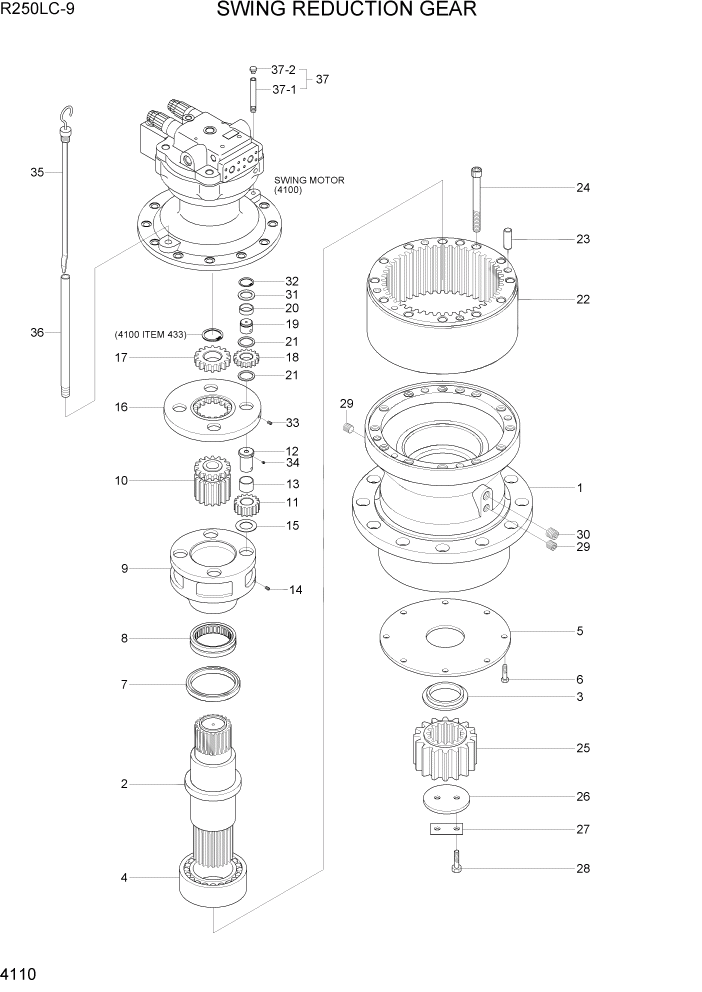

SWING REDUCTION GEAR |
| 1 |
XKAQ-00633 |
CASING |
| 2 |
XKAQ-00115 |
SHAFT |
| 3 |
XKAQ-00116 |
SPACER |
| 4 |
XKAQ-00117 |
BEARING-ROLLER |
| 5 |
XKAQ-00118 |
PLATE-COVER |
| 6 |
XKAQ-00064 |
BOLT-HEX |
| 7 |
XKAQ-00119 |
SEAL-OIL |
| 8 |
XKAQ-00120 |
BEARING-ROLLER |
| 9 |
XKAQ-00121 |
CARRIER 2 |
| 10 |
XKAQ-00634 |
GEAR-SUN 2 |
| 11 |
XKAQ-00123 |
GEAR-PLANET 2 |
| 12 |
XKAQ-00124 |
PIN 2 |
| N13 |
XKAQ-00533 |
BUSHING 2 |
| N34 |
@ |
PIN-SPRING |
| 14 |
XKAQ-00050 |
PIN-SPRING |
| 15 |
XKAQ-00071 |
WASHER-THRUST |
| 16 |
XKAQ-00126 |
CARRIER 1 |
| 17 |
XKAQ-00127 |
GEAR-SUN 1 |
| 18 |
XKAQ-00128 |
GEAR-PLANET 1 |
| 19 |
XKAQ-00019 |
PIN 1 |
| 20 |
XKAQ-00030 |
CAGE-NEEDLE |
| 21 |
XKAQ-00129 |
NEEDLE CAGE |
| 22 |
XKAQ-00635 |
GEAR-RING |
| 23 |
XKAQ-00072 |
PIN-KNOCK |
| 24 |
XKAQ-00131 |
BOLT-SOCKET |
| 25 |
XKAQ-00132 |
GEAR-PINION |
| 26 |
XKAQ-00043 |
PLATE-LOCK |
| 27 |
XKAQ-00292 |
WASHER-LOCK |
| 28 |
XKAQ-00042 |
BOLT-HEX |
| 29 |
XKAQ-00066 |
PLUG |
| 30 |
XKAQ-00049 |
PLUG |
| 31 |
XKAQ-00040 |
PLATE-SIDE 2 |
| 32 |
XKAQ-00041 |
RING-STOP |
| 33 |
XKAQ-00048 |
PIN-SPRING |
| 34 |
XKAQ-00133 |
PIN-SPRING |
| 35 |
XKAQ-00034 |
BAR-GAUGE |
| 36 |
XKAQ-00035 |
PIPE-GAUGE |
| 37 |
XKAQ-00143 |
AIR BREATHER ASSY |
| 37-1 |
@ |
POST |
| 37-2 |
XKAQ-00324 |
CAP BREATHER |
| *-1 |
@ |
SWING MOTOR UNIT |
| N |
@ |
NOT SUPPLIED PARTS |
|
|
