Номер |
Название |
|
|
| * |

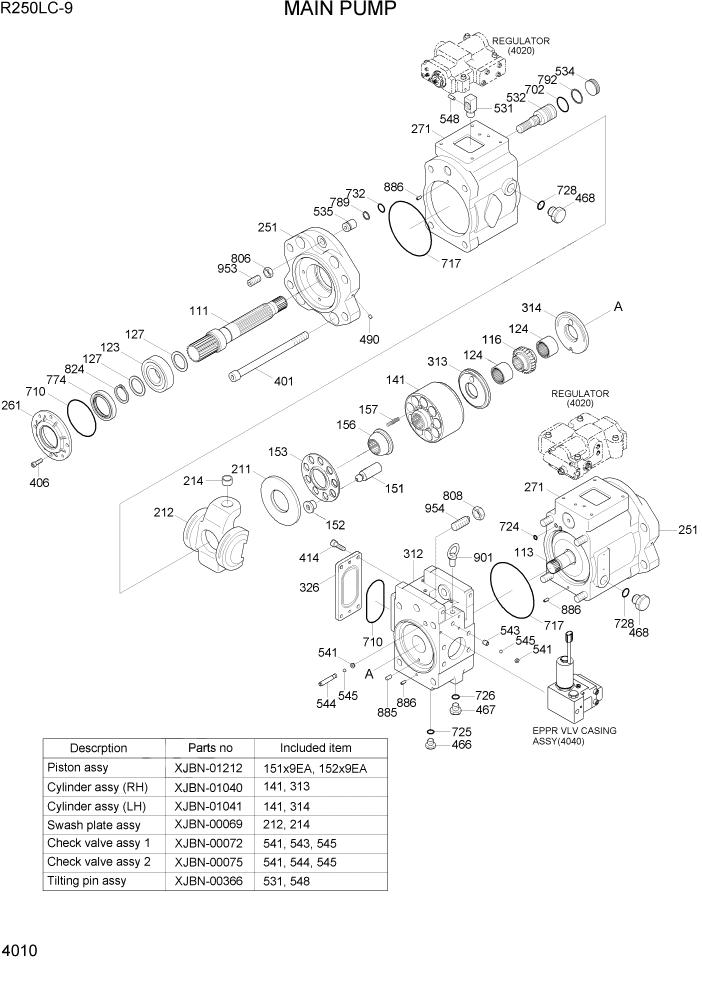

31Q7-10010 |
MAIN PUMP ASSY |
 |
| *-1 |
@ |
MAIN PUMP UNIT |
| 111 |
XJBN-00077 |
DRIVE SHAFT(F) |
| 113 |
XJBN-00078 |
DRIVE SHAFT(R) |
| 116 |
XJBN-01213 |
GEAR-1ST |
| 123 |
XJBN-00950 |
BEARING-ROLLER |
| 124 |
XJBN-00786 |
BEARING-NEEDLE |
| 127 |
XJBN-00081 |
SPACER-BEARING |
| S141 |
XJBN-00067 |
BLOCK-CYLINDER |
| S151 |
XJBN-01032 |
PISTON |
| S152 |
XJBN-01214 |
SHOE |
| 153 |
XJBN-00945 |
PLATE-SET |
| 156 |
XJBN-00083 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00084 |
SPRING-CYLINDER |
| 211 |
XJBN-00085 |
PLATE-SHOE |
| S212 |
XJBN-00070 |
PLATE-SWASH |
| S214 |
XJBN-00071 |
BUSHING-TILTING |
| 251 |
XJBN-00086 |
SUPPORT |
| 261 |
XJBN-00087 |
COVER(F)-SEAL |
| 271 |
XJBN-01034 |
CASING-PUMP |
| 312 |
XJBN-00940 |
BLOCK-VALVE |
| S313 |
XJBN-01035 |
PLATE-VALVE(R) |
| S314 |
XJBN-01036 |
PLATE-VALVE(L) |
| 326 |
XJBN-00937 |
COVER |
| 401 |
XJBN-00090 |
SCREW-HEX SOC HD |
| 406 |
XJBN-00355 |
SCREW-HEX SOC HD |
| 414 |
XJBN-00160 |
SCREW-SOCKET |
| 466 |
XJBN-00356 |
PLUG |
| 467 |
XJBN-00936 |
PLUG |
| 468 |
XJBN-00031 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| S531 |
XJBN-00358 |
PIN-TILTING |
| 532 |
XJBN-00955 |
PISTON-SERVO |
| 534 |
XJBN-01037 |
STOPPER(L) |
| 535 |
XJBN-00093 |
STOPPER(S) |
| S541 |
XJBN-00859 |
SEAT |
| S543 |
XJBN-00860 |
STOPPER |
| S544 |
XJBN-00861 |
STOPPER |
| S545 |
XJBN-00038 |
BALL-STEEL |
| S548 |
XJBN-00360 |
PIN-FEED BACK |
| 702 |
XJBN-00862 |
O-RING |
| 710 |
XJBN-00878 |
O-RING |
| 717 |
XJBN-00096 |
O-RING |
| 724 |
XJBN-00361 |
O-RING |
| 725 |
XJBN-00362 |
O-RING |
| 726 |
XJBN-00233 |
O-RING |
| 728 |
XJBN-00363 |
O-RING |
| 732 |
XJBN-00863 |
O-RING |
| 774 |
XJBN-01579 |
OIL SEAL |
| 789 |
XJBN-00864 |
RING-BACK UP |
| 792 |
XJBN-00865 |
RING-BACK UP |
| 806 |
XJBN-00396 |
NUT-HEX |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00866 |
RING-SNAP |
| 885 |
XJBN-00103 |
PIN-VALVE PLATE |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00393 |
BOLT-EYE |
| 953 |
XJBN-00105 |
SCREW-SET |
| 954 |
XJBN-00106 |
SCREW-SET |
| *-2 |
@ |
REGULATOR |
| *-3 |
@ |
GEAR PUMP |
| 80 |
@ |
EPPR VALVE |
| 11 |
XJBN-01212 |
PISTON SUB ASSY |
| 13 |
XJBN-01040 |
CYLINDER SUB ASSY-RH |
| 14 |
XJBN-01041 |
CYLINDER SUB ASSY-LH |
| 30 |
XJBN-00069 |
SWASH PLATE SUB ASSY |
| 41 |
XJBN-00072 |
CHECK VALVE ASSY 1 |
| 42 |
XJBN-00075 |
CHECK VALVE ASSY 2 |
| 42 |
XJBN-00075 |
CHECK VALVE ASSY 2 |
| 530 |
XJBN-00366 |
TILTING PIN ASSY |
|
|
