Номер |
Название |
|
|
| * |

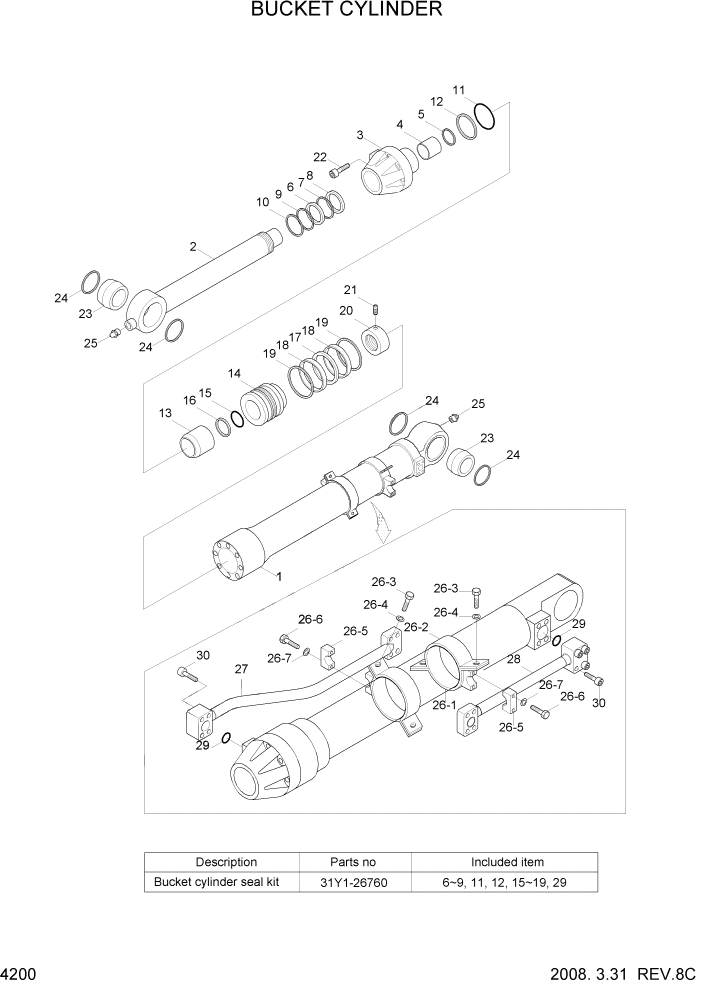

33NB-60130 |
BUCKET CYLINDER ASSY |
 |
| *-1 |
31Y1-26590 |
BUCKET CYL SUB ASSY |
| 1 |
31Y1-26600 |
TUBE ASSY |
| 2 |
31Y1-26680 |
ROD ASSY |
| 3 |
31Y1-26710 |
GLAND |
| 4 |
S732-115045 |
BUSHING-DD2 |
| 5 |
Y191-123000 |
RING-SNAP |
| K6 |
Y220-115111 |
SEAL-ROD |
| K7 |
Y180-115020 |
RING-BACK UP |
| K8 |
Y240-115013 |
RING-BUFFER |
| K9 |
Y110-115011 |
WIPER-DUST |
| 10 |
Y190-131000 |
RING-SNAP |
| K11 |
S632-160004 |
O-RING |
| K12 |
S642-161003 |
RING-BACK UP |
| 13 |
31YC-26120 |
RING-CUSHION |
| 14 |
31Y1-26490 |
PISTON |
| K15 |
S632-090004 |
O-RING |
| K16 |
S642-090003 |
RING-BACK UP |
| K17 |
Y420-170000 |
SEAL-PISTON |
| K18 |
Y310-170200 |
RING-WEAR |
| K19 |
Y440-170102 |
RING-DUST |
| 20 |
31YC-64080 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| 22 |
S109-220954 |
BOLT-SOCKET |
| 23 |
31YC-11200 |
BUSHING-PIN |
| 24 |
Y000-110100 |
SEAL-DUST |
| 25 |
S651-810002 |
NIPPLE-GREASE |
| 26 |
31Y1-26720 |
BAND ASSY |
| 26-1 |
31Y1-26730 |
BAND SUB ASSY |
| 26-2 |
31YC-31260 |
BAND |
| 26-3 |
S015-120452 |
BOLT-HEX |
| 26-4 |
S411-120002 |
WASHER-SPRING |
| 26-5 |
31YC-37050 |
CLAMP-PIPE |
| 26-6 |
S011-100452 |
BOLT-HEX |
| 26-7 |
S411-100002 |
WASHER-SPRING |
| 27 |
31Y1-26740 |
PIPE ASSY-R |
| 28 |
31Y1-24660 |
PIPE ASSY-B |
| K29 |
Y171-024004 |
O-RING |
| 30 |
S107-120604 |
BOLT-SOCKET |
| K |
31Y1-26760 |
SEAL KIT |
|
|
