Номер |
Название |
|
|
| * |
@ |
SWING MOTOR ASSY |
 |
| *-2 |
31QB-10140 |

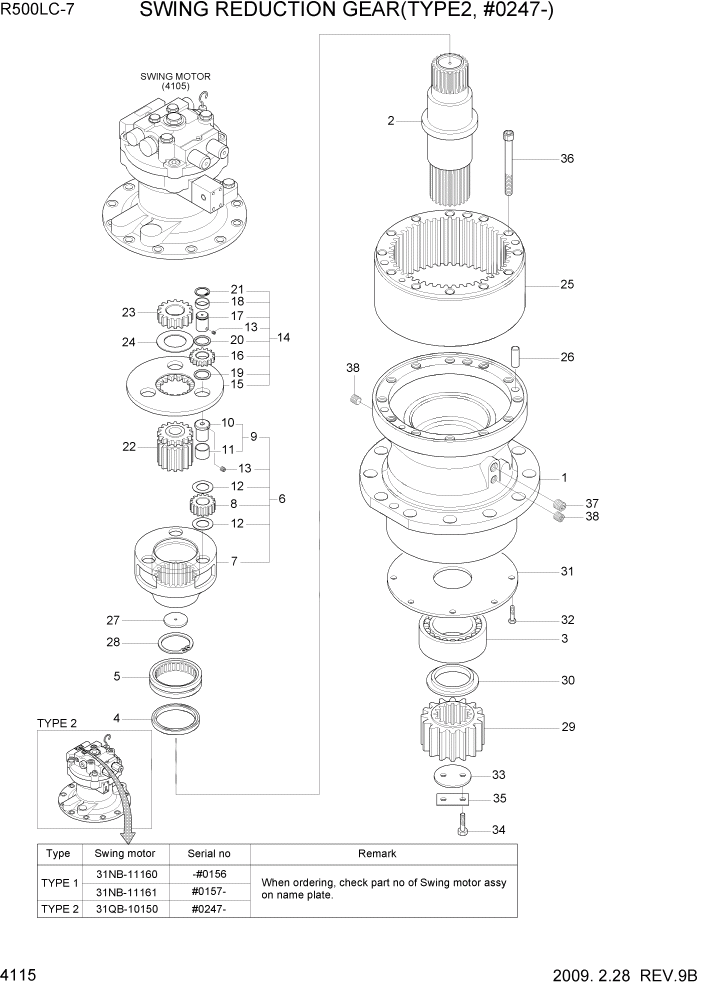

SWING REDUCTION GEAR |
| 1 |
XKAQ-00637 |
CASING |
| 2 |
XKAQ-00752 |
SHAFT-DRIVE |
| 3 |
XKAQ-00026 |
BEARING-ROLLER |
| 4 |
XKAQ-00032 |
SEAL-OIL |
| 5 |
XKAQ-00029 |
BEARING-ROLLER |
| 6 |
XKAQ-00753 |
CARRIER ASSY 2 |
| 7 |
XKAQ-00075 |
CARRIER 2 |
| 8 |
XKAQ-00023 |
GEAR-PLANET 2 |
| 9 |
XKAQ-00643 |
PIN ASSY 2 |
| 10 |
XKAQ-00070 |
PIN |
| 11 |
XKAQ-00291 |
BUSHING 2 |
| 12 |
XKAQ-00644 |
WASHER-THRUST |
| 13 |
XKAQ-00048 |
PIN-SPRING |
| 14 |
XKAQ-00754 |
CARRIER ASSY 1 |
| 15 |
XKAQ-00531 |
CARRIER 1 |
| 16 |
XKAQ-00646 |
PLANET GEAR 1 |
| 17 |
XKAQ-00415 |
PIN 1 |
| 18 |
XKAQ-00030 |
CAGE-NEEDLE |
| 19 |
XKAQ-00417 |
PLATE-SIDE 1 |
| 20 |
XKAQ-00416 |
PLATE-SIDE 2 |
| 21 |
XKAQ-00041 |
RING-STOP |
| 22 |
XKAQ-00755 |
SUN GEAR 2 |
| 23 |
XKAQ-00648 |
SUN GEAR 1 |
| 24 |
XKAQ-00534 |
PLATE-SIDE 3 |
| 25 |
XKAQ-00649 |
GEAR-RING |
| 26 |
XKAQ-00072 |
PIN-KNOCK |
| 27 |
XKAQ-00404 |
PLATE-THRUST |
| 28 |
XKAQ-00074 |
RING-STOP |
| 29 |
XKAQ-00287 |
GEAR-PINION |
| 30 |
XKAQ-00018 |
SPACER |
| 31 |
XKAQ-00031 |
PLATE-COVER |
| 32 |
XKAQ-00064 |
BOLT-HEX |
| 33 |
XKAQ-00043 |
PLATE-LOCK |
| 34 |
XKAQ-00042 |
BOLT-HEX |
| 35 |
XKAQ-00029 |
BEARING-ROLLER |
| 36 |
XKAQ-00065 |
BOLT-SOCKET |
| 37 |
XKAQ-00049 |
PLUG |
| 38 |
XKAQ-00274 |
PLUG |
| 37 |
XKAQ-00273 |
PLUG |
| 38 |
XKAQ-00274 |
PLUG |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
