Номер |
Название |
|
|
| * |
@ |
SWING MOTOR ASSY |
 |
| *-2 |
31NB-11150 |

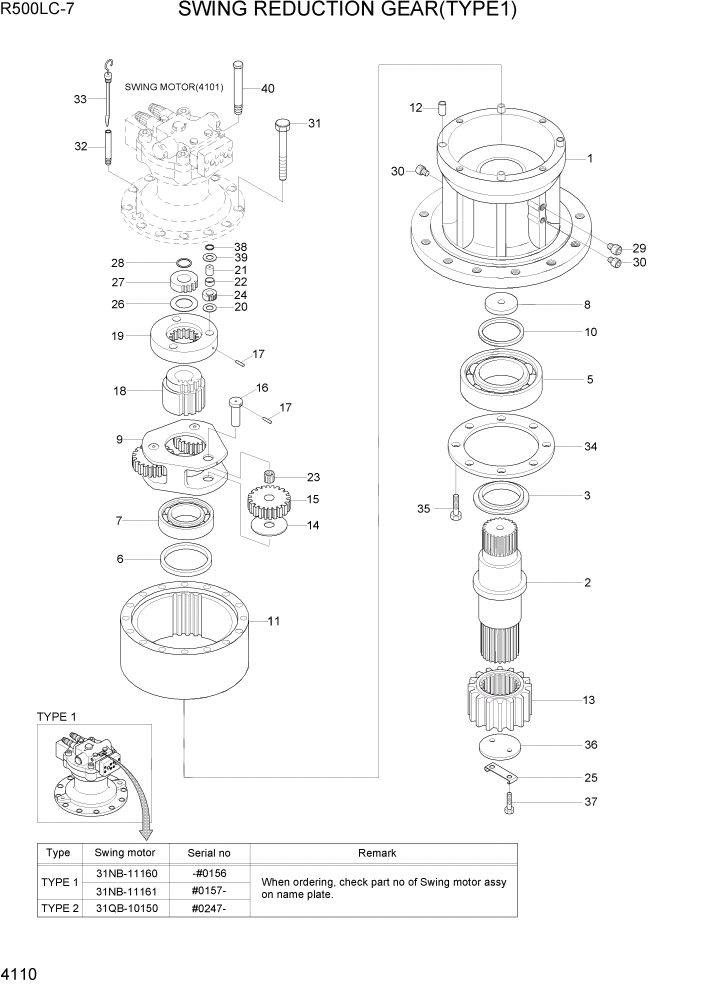

SWING REDUCTION GEAR |
| 1 |
XKAQ-00297 |
CASING |
| 2 |
XKAQ-00282 |
SHAFT-DRIVE |
| 3 |
XKAQ-00018 |
SPACER |
| 5 |
XKAQ-00026 |
BEARING-ROLLER |
| 6 |
XKAQ-00032 |
SEAL-OIL |
| 7 |
XKAQ-00029 |
BEARING-ROLLER |
| 8 |
XKAQ-00283 |
PLATE-THRUST 3 |
| 9 |
XKAQ-00075 |
CARRIER 2 |
| 10 |
XKAQ-00074 |
RING-STOP |
| 11 |
XKAQ-00284 |
GEAR-RING |
| 12 |
XKAQ-00286 |
PIN-KNOCK |
| 13 |
XKAQ-00287 |
GEAR-PINION |
| 14 |
XKAQ-00288 |
WASHER-THRUST |
| 15 |
XKAQ-00023 |
GEAR-PLANET 2 |
| 16 |
XKAQ-00070 |
PIN |
| 17 |
XKAQ-00048 |
PIN-SPRING |
| 18 |
XKAQ-00289 |
GEAR-SUN 2 |
| 19 |
XKAQ-00290 |
CARRIER 1 |
| 20 |
XKAQ-00057 |
PLATE-SIDE 1 |
| 21 |
XKAQ-00019 |
PIN 1 |
| 22 |
XKAQ-00030 |
CAGE-NEEDLE |
| N23 |
@ |
BUSHING 2 |
| 24 |
XKAQ-00025 |
GEAR-PLANET 1 |
| 25 |
XKAQ-00292 |
WASHER-LOCK |
| 26 |
XKAQ-00293 |
PLATE-SIDE 3 |
| 27 |
XKAQ-00294 |
GEAR-SUN 1 |
| 28 |
XKAQ-00047 |
RING-STOP |
| 29 |
XKAQ-00273 |
PLUG |
| 30 |
XKAQ-00274 |
PLUG |
| 31 |
XKAQ-00065 |
BOLT-SOCKET |
| 32 |
XKAQ-00167 |
PIPE-GAUGE |
| 33 |
XKAQ-00295 |
GAUGE-BAR |
| 34 |
XKAQ-00031 |
PLATE-COVER |
| 35 |
XKAQ-00064 |
BOLT-HEX |
| 36 |
XKAQ-00296 |
PLATE-LOCK |
| 37 |
HHI45-WP37 |
BOLT-HEX |
| 38 |
XKAQ-00041 |
RING-STOP |
| 39 |
XKAQ-00040 |
PLATE-SIDE 2 |
| 40 |
XKAQ-00143 |
AIR BREATHER ASSY |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
