Номер |
Название |
|
|
| * |

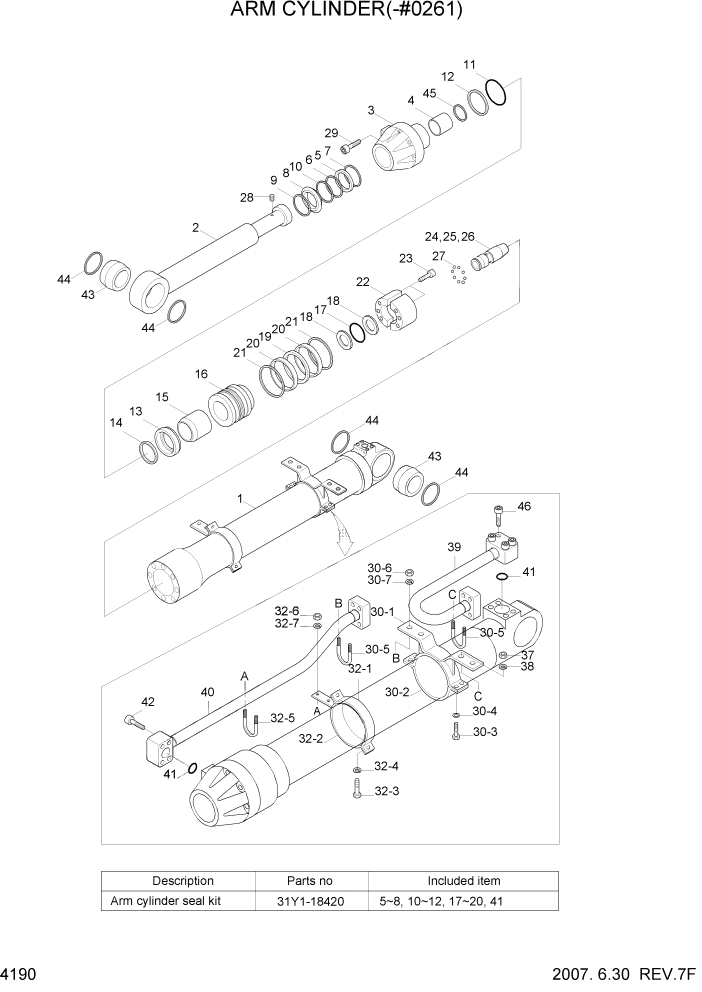

31NB-50240 |
ARM CYLINDER ASSY |
 |
| * |
31NB-50241 |
ARM CYLINDER ASSY |
| *-1 |
31Y1-18400 |
ARM CYLINDER SUB |
| *-1 |
31Y1-23870 |
ARM CYLINDER SUB |
| 1 |
31Y1-09070 |
TUBE ASSY |
| 2 |
31Y1-09121 |
ROD ASSY |
| 3 |
31Y1-09151Y |
GLAND |
| 3 |
31Y1-23650 |
GLAND |
| 4 |
S732-125050 |
BUSHING-DD2 |
| K5 |
Y220-125011 |
SEAL-ROD |
| K6 |
Y180-125020 |
RING-BACK UP |
| K7 |
Y240-125013 |
RING-BUFFER |
| K8 |
Y110-125011 |
WIPER-DUST |
| 9 |
Y190-141000 |
RING-SNAP |
| K10 |
Y320-125000 |
RING-WEAR |
| K11 |
S632-180004 |
O-RING |
| K12 |
S642-180003 |
RING-BACK UP |
| 13 |
31Y1-09161 |
COLLAR |
| 14 |
31Y1-09171 |
RING |
| 15 |
31YC-24011 |
RING-CUSHION |
| 16 |
31Y1-09181 |
PISTON |
| K17 |
S632-100004 |
O-RING |
| K18 |
S642-100002 |
RING-BACK UP |
| K19 |
Y420-185000 |
SEAL-PISTON |
| K20 |
Y310-185100 |
RING-WEAR |
| 21 |
31Y1-09190 |
RING-PISTON |
| 22 |
31Y1-09200 |
SPACER |
| 23 |
S109-180554 |
BOLT-SOCKET |
| 24 |
31YC-27020 |
SPACER-CUSHION |
| 25 |
31YC-2A030 |
VALVE-CHECK |
| 26 |
31YC-99070 |
SPRING-COIL |
| 27 |
Y890-015011 |
BALL-STEEL |
| 28 |
S114-080124 |
SCREW-SET |
| 29 |
S109-301004 |
BOLT-SOCKET HEAD |
| 43 |
31YC-11201 |
BUSHING-PIN |
| 44 |
Y000-110100 |
SEAL-DUST |
| 45 |
Y191-133000 |
RING-SNAP |
| 30 |
31Y1-09230 |
BAND ASSY-B |
| 30 |
31Y1-22060 |
BAND ASSY-B |
| 30-1 |
31Y1-09240 |
BAND SUB ASS'Y |
| 30-1 |
31Y1-22070 |
BAND SUB ASSY |
| 30-2 |
31YC-32140 |
BAND |
| 30-3 |
S015-120452 |
BOLT-HEX |
| 30-4 |
S411-120002 |
WASHER-SPRING |
| 30-5 |
S071-023430 |
U-BOLT |
| 30-5 |
S071-024330 |
U-BOLT |
| 30-6 |
S201-101002 |
NUT-HEX |
| 30-7 |
S411-100002 |
WASHER-SPRING |
| 32 |
31Y1-09210 |
BAND ASSY-R |
| 32 |
31Y1-22040 |
BAND ASSY-R |
| 32-1 |
31Y1-09220 |
BAND SUB ASS'Y |
| 32-1 |
31Y1-22050 |
BAND SUB ASSY |
| 32-2 |
31YC-32140 |
BAND |
| 32-2 |
31YC-31270 |
BAND |
| 32-3 |
S015-120452 |
BOLT-HEX |
| 32-4 |
S411-120002 |
WASHER-SPRING |
| 32-5 |
S071-023430 |
U-BOLT |
| 32-5 |
S071-024330 |
U-BOLT |
| 32-6 |
S201-101002 |
NUT-HEX |
| 32-7 |
S411-100002 |
WASHER-SPRING |
| 39 |
31Y1-09260 |
PIPE ASSY-B |
| 39 |
31Y1-21970 |
PIPE ASSY-B |
| 40 |
31Y1-09250 |
PIPE ASSY-R |
| 40 |
31Y1-22750 |
PIPE ASSY-R |
| K41 |
Y171-024004 |
O-RING |
| 42 |
S107-100554 |
BOLT-SOCKET |
| 42 |
S107-120604 |
BOLT-SOCKET |
| 46 |
S107-100604 |
BOLT-SOCKET |
| K |
31Y1-18420 |
SEAL KIT |
|
|
