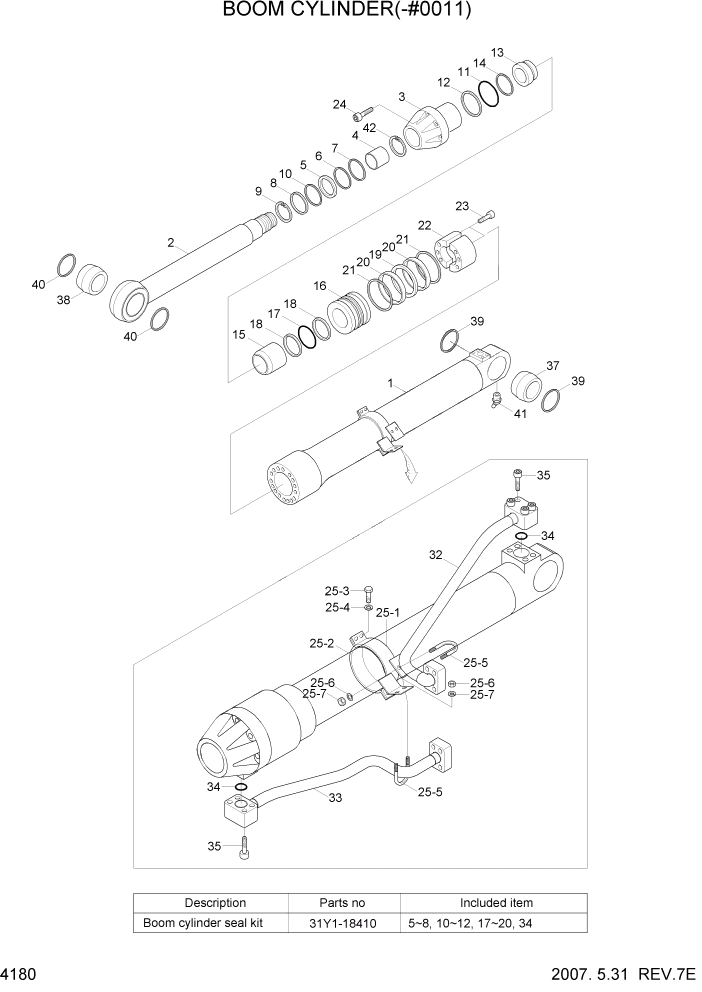

Номер |
Название |
|
|
| * |
31NB-50220 |
BOOM CYL ASSY-LH |
 |
| * |
31NB-50230 |
BOOM CYL ASSY-RH |
| *-1 |
31Y1-18390 |
BOOM CYLINDER SUB |
| 1 |
31Y1-08840 |
TUBE ASSY |
| 2 |
31Y1-08890 |
ROD ASS'Y |
| 3 |
31Y1-08920 |
GLAND |
| 4 |
S732-110045 |
DU BUSH |
| K5 |
Y220-110111 |
SEAL-ROD |
| K6 |
Y180-110120 |
RING-BACK UP |
| K7 |
Y240-110013 |
RING-BUFFER |
| K8 |
Y110-110011 |
WIPER-DUST |
| 9 |
Y190-126000 |
RING-SNAP |
| K10 |
Y320-110000 |
RING-WEAR |
| K11 |
S632-155004 |
O-RING |
| K12 |
S642-155003 |
RING-BACK UP |
| 13 |
31Y1-08930 |
COLLAR |
| 14 |
31Y1-08940 |
RING |
| 15 |
31YC-24020 |
RING-CUSHION |
| 16 |
31Y1-08950 |
PISTON |
| K17 |
S632-090004 |
O-RING |
| K18 |
S642-090003 |
RING-BACK UP |
| K19 |
Y420-160000 |
SEAL-PISTON |
| K20 |
Y310-160000 |
RING-WEAR |
| 21 |
31Y1-08960 |
RING-PISTON |
| 22 |
31Y1-08970 |
SPACER |
| 23 |
S109-140504 |
BOLT-SOCKET |
| 24 |
S109-240904 |
BOLT-SOCKET |
| 37 |
31YC-11405 |
BUSHING |
| 38 |
31YC-11205 |
BUSHING-PIN |
| 39 |
Y000-100100 |
SEAL-DUST |
| 40 |
Y000-110100 |
SEAL-DUST |
| 41 |
S652-810002 |
NIPPLE-GREASE |
| 42 |
Y191-117000 |
RING-SNAP |
| 25 |
31Y1-09630 |
BAND ASSY-LH |
| 25 |
31Y1-09640 |
BAND ASSY-RH |
| 25-1 |
31Y1-09650 |
BAND SUB ASS'Y,LH |
| 25-1 |
31Y1-09660 |
BAND SUB ASSY-RH |
| 25-2 |
31YC-32120 |
BAND |
| 25-3 |
S015-120452 |
BOLT-HEX |
| 25-4 |
S411-120002 |
WASHER-SPRING |
| 25-5 |
S071-023430 |
U-BOLT |
| 25-6 |
S201-101002 |
NUT-HEX |
| 25-7 |
S411-100002 |
WASHER-SPRING |
| 32 |
31Y1-09041 |
PIPE ASSY-LH |
| 32 |
31Y1-09051 |
PIPE ASSY-RH |
| 33 |
31Y1-09021 |
PIPE ASSY-LH |
| 33 |
31Y1-09031 |
PIPE ASSY-RH |
| K34 |
Y171-024004 |
O-RING |
| 35 |
S107-100554 |
BOLT-SOCKET |
| K |
31Y1-18410 |
SEAL KIT |
|
|
