Номер |
Название |
|
|
| *-2 |
XKAH-01061 |

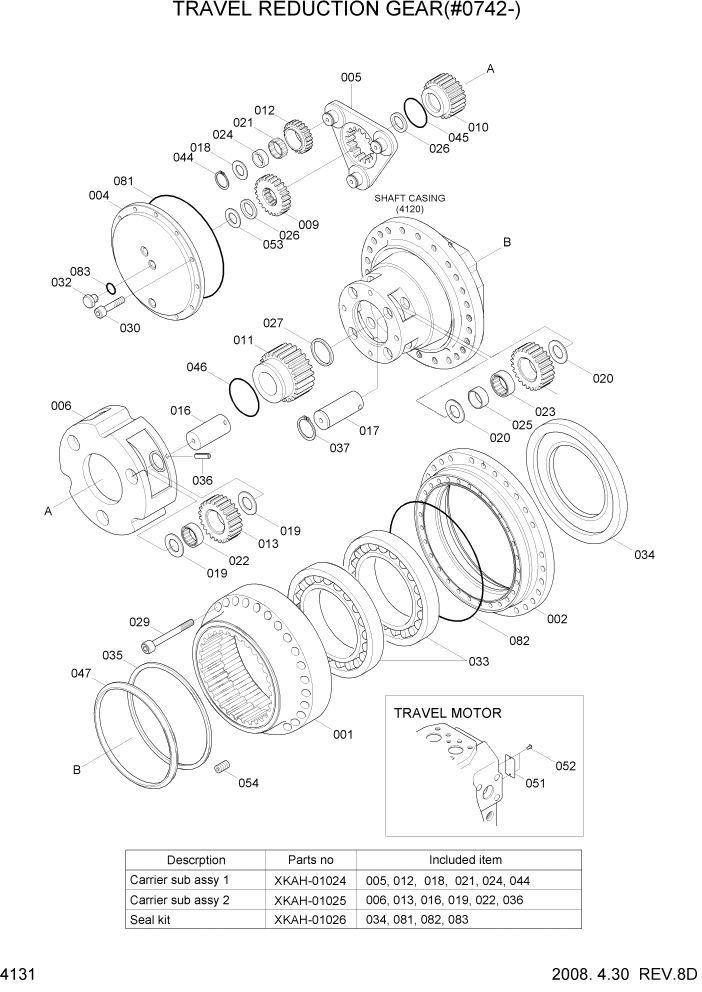

T/REDUCTION GEAR |
 |
| 1 |
XKAH-00987 |
GEAR-RING |
| 2 |
XKAH-00988 |
HOUSING |
| 4 |
XKAH-00989 |
COVER-SIDE |
| S005 |
XKAH-00990 |
CARRIER NO.1 |
| S006 |
XKAH-00991 |
CARRIER NO.2,B |
| 9 |
XKAH-00992 |
SUN GEAR NO.1 |
| 10 |
XKAH-00993 |
SUN GEAR NO.2 |
| 11 |
XKAH-00994 |
SUN GEAR NO.3 |
| S012 |
XKAH-00995 |
PLANETARY GEAR NO.1 |
| S013 |
XKAH-00996 |
PLANETARY GEAR B NO.2 |
| S014 |
XKAH-00997 |
PLANETARY GEAR NO.3 |
| S016 |
XKAH-00998 |
PIN NO.2,B |
| S017 |
XKAH-00999 |
PIN NO.3 |
| S018 |
XKAH-01000 |
SIDE PLATE E |
| S019 |
XKAH-01001 |
SIDE PLATE A |
| S020 |
XKAH-01002 |
SIDE PLATE F |
| S021 |
XKAH-01003 |
NEEDLE BEARING |
| S022 |
XKAH-01004 |
CAGE-NEEDLE |
| S023 |
XKAH-01005 |
CAGE-NEEDLE |
| 24 |
XKAH-01006 |
RING-INNER |
| 25 |
XKAH-01007 |
BUSHING-FLOATING |
| 26 |
XKAH-01008 |
THRUST RING 60 |
| S027 |
XKAH-01009 |
THRUST RING 90 |
| 29 |
XKAH-01010 |
BOLT-SOCKET |
| 30 |
XKAH-00210 |
BOLT-SOCKET |
| 32 |
XKAH-00032 |
PLUG-RO |
| 33 |
XKAH-01011 |
BEARING-ANGULAR |
| 34 |
XKAH-01012 |
SEAL-FLOATING |
| 35 |
XKAH-01013 |
SHIM |
| S036 |
XKAH-01014 |
PIN-SPRING |
| S037 |
XKAH-01015 |
RING-SNAP |
| S044 |
XKAH-01016 |
RING-SNAP |
| 45 |
XKAH-01017 |
CLIP |
| 46 |
XKAH-01018 |
CLIP |
| 47 |
XKAH-01019 |
RING-NUT |
| 51 |
XKAH-00985 |
NAME PLATE |
| 52 |
XKAH-00986 |
RIVET SCREW |
| 81 |
XKAH-01020 |
O-RING |
| 82 |
XKAH-01021 |
O-RING |
| 83 |
XKAH-00035 |
O-RING |
| 53 |
XKAH-01022 |
WASHER |
| 54 |
XKAH-01023 |
SCREW-SET |
| 11 |
XKAH-01024 |
SUB ASSY-NO.1 CARRIER |
| 12 |
XKAH-01025 |
SUB ASSY-NO.2 CARRIER |
| 13 |
XKAH-01026 |
SUB ASSY-SEAL |
|
|
