Номер |
Название |
|
|
| * |

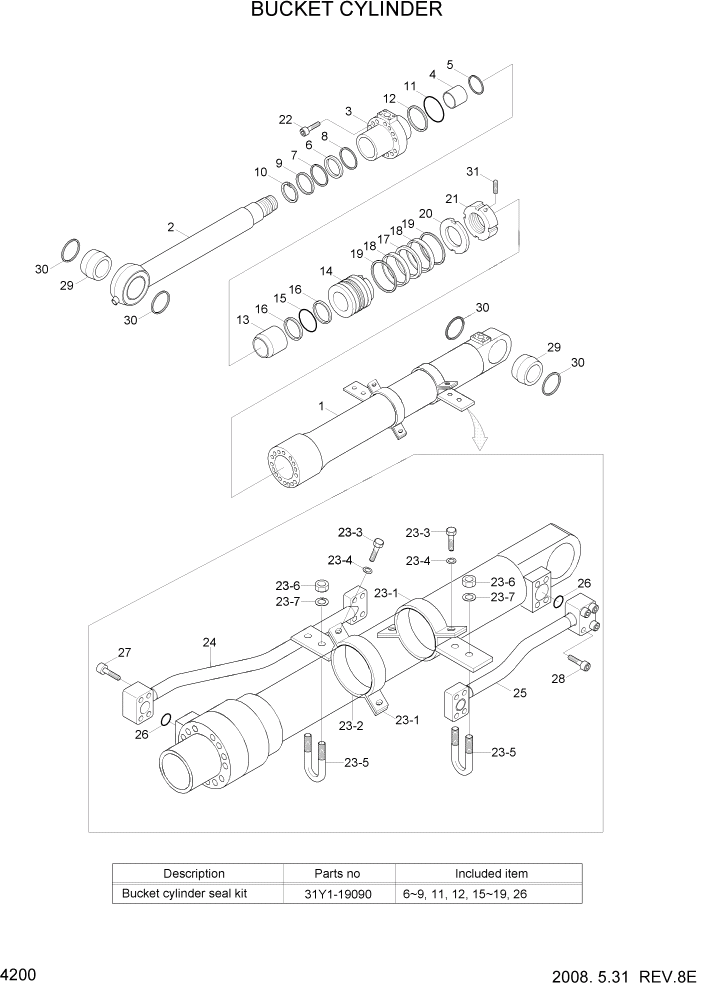

31N9-60110 |
BUCKET CYLINDER ASSY |
 |
| * |
31N9-60111 |
BUCKET CYLINDER ASSY |
| *-1 |
31Y1-19060 |
BUCKET CYLINDER SUB |
| *-1 |
31Y1-19061 |
BUCKET CYLINDER SUB |
| 1 |
31Y1-19370 |
TUBE ASSY |
| 2 |
31Y1-19270 |
ROD ASSY |
| 3 |
31Y1-15150 |
GLAND |
| 4 |
S732-100040 |
BUSHING-DD2 |
| 5 |
Y191-107000 |
RING-SNAP |
| K6 |
Y220-100011 |
SEAL-ROD |
| K7 |
Y180-100020 |
RING-BACK UP |
| K8 |
Y240-100013 |
RING-BUFFER |
| K9 |
Y110-100011 |
WIPER-DUST |
| 10 |
Y190-114000 |
RING-SNAP |
| K11 |
S631-130004 |
O-RING |
| K12 |
S641-130003 |
RING-BACK UP |
| 13 |
31YC-23040 |
RING-CUSHION |
| 14 |
31Y1-15160 |
PISTON |
| K15 |
S632-085004 |
O-RING |
| K16 |
S642-085003 |
RING-BACK UP |
| K17 |
Y420-140000 |
SEAL-PISTON |
| K18 |
Y310-140000 |
RING-WEAR |
| K19 |
Y440-140000 |
RING-DUST |
| 20 |
31YC-66061 |
WASHER-LOCK |
| 21 |
31YC-61132 |
NUT-LOCK |
| 21 |
31YC-61134 |
NUT-LOCK |
| 22 |
S109-180904 |
BOLT-SOCKET |
| 29 |
31YC-11390 |
BUSHING-PIN |
| 30 |
Y000-090000 |
SEAL-DUST |
| 30 |
S114-080184 |
SCREW-SET,HEX |
| 23 |
31Y1-19410 |
BAND ASSY |
| 23-1 |
31Y1-19420 |
BAND SUB ASSY |
| 23-2 |
31YC-31220 |
BAND |
| 23-3 |
S015-120452 |
BOLT-HEX |
| 23-4 |
S411-120002 |
WASHER-SPRING |
| 23-5 |
S071-023430 |
U-BOLT |
| 23-6 |
S201-101002 |
NUT-HEX |
| 23-7 |
S411-100002 |
WASHER-SPRING |
| 24 |
31Y1-19430 |
PIPE ASSY-R |
| 25 |
31Y1-08360 |
PIPE ASSY-B |
| K26 |
Y171-024004 |
O-RING |
| 27 |
S107-120554 |
BOLT-SOCKET |
| 28 |
S107-100554 |
BOLT-SOCKET |
| K |
31Y1-19090 |
SEAL KIT |
|
|
