Номер |
Название |
|
|
| * |

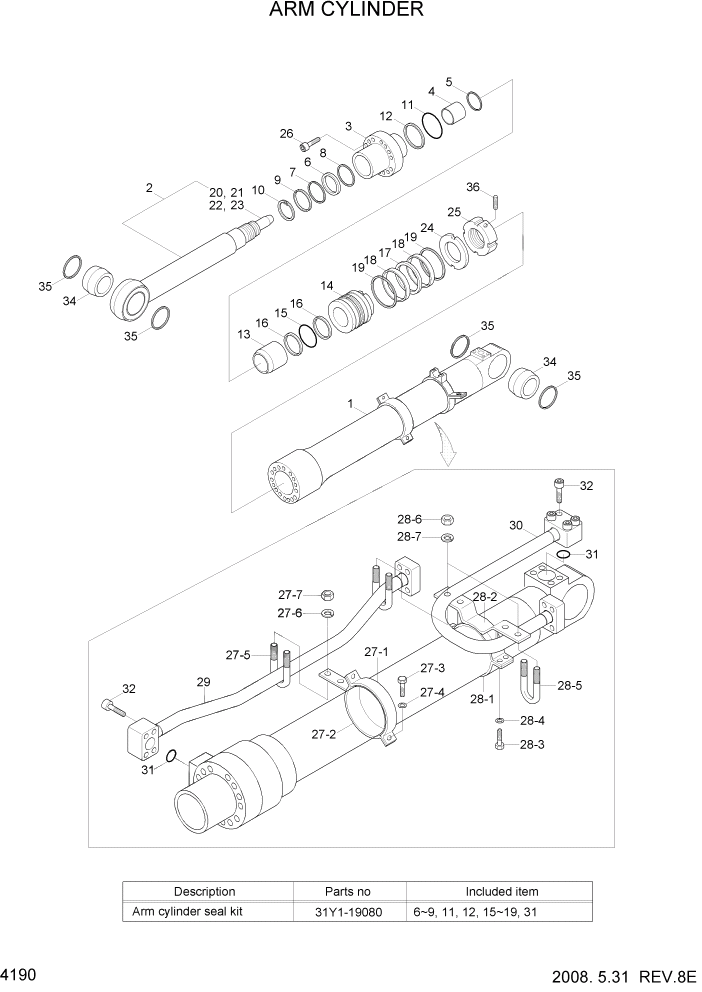

31N9-50130 |
CYLINDER ASS'Y |
|
| * |
31N9-50131 |
CYLINDER ASS'Y |
| *-1 |
31Y1-19050 |
ARM CYLINDER SUB |
| *-1 |
31Y1-19051 |
CYLINDER W/O PIPE |
| 1 |
31Y1-19210 |
TUBE ASSY |
| 2 |
31Y1-19230 |
ROD ASSY |
| N20 |
@ |
SPEAR-CUSHION |
| N21 |
@ |
VALVE-CHECK |
| N22 |
@ |
SPRING-COIL |
| N23 |
@ |
RING-STOP |
| 3 |
31Y1-19190 |
GLAND |
| 4 |
S732-110045 |
BUSHING-DD2 |
| 5 |
Y191-117000 |
RING-SNAP |
| K6 |
Y220-110011 |
SEAL-ROD |
| K7 |
Y180-110020 |
RING-BACK UP |
| K8 |
Y240-110013 |
RING-BUFFER |
| K9 |
Y110-110011 |
WIPER-DUST |
| 10 |
Y190-126000 |
RING-SNAP |
| K11 |
S631-150004 |
O-RING |
| K12 |
S641-150003 |
RING-BACK UP |
| 13 |
31YC-23050 |
RING-CUSHION |
| 14 |
31Y1-08172 |
PISTON |
| K15 |
S632-095004 |
O-RING |
| K16 |
S642-095003 |
RING-BACK UP |
| K17 |
Y420-160000 |
SEAL-PISTON |
| K18 |
Y310-160200 |
RING-WEAR |
| K19 |
Y440-160002 |
RING-DUST |
| 24 |
31YC-66081 |
WASHER-LOCK |
| 25 |
31YC-61142 |
NUT-LOCK |
| 25 |
31YC-61144 |
NUT-LOCK |
| 26 |
S109-200904 |
BOLT-SOCKET |
| 34 |
31YC-11401 |
BUSHING-PIN |
| 35 |
Y000-100100 |
SEAL-DUST |
| 36 |
S114-080204 |
SCREW-SET |
| 27 |
31Y1-19480 |
BAND ASSY |
| 27-1 |
31Y1-19490 |
BAND SUB ASSY |
| 27-2 |
31YC-31240 |
BAND |
| 27-3 |
S015-120452 |
BOLT-HEX |
| 27-4 |
S411-120002 |
WASHER-SPRING |
| 27-5 |
S071-023430 |
U-BOLT |
| 27-6 |
S201-101002 |
NUT-HEX |
| 27-7 |
S411-100002 |
WASHER-SPRING |
| 28 |
31Y1-08200 |
BAND ASSY-B |
| 28-1 |
31Y1-08210 |
BAND SUB ASSY-B |
| 28-2 |
31YC-32120 |
BAND |
| 28-3 |
S015-120452 |
BOLT-HEX |
| 28-4 |
S411-120002 |
WASHER-SPRING |
| 28-5 |
S071-023430 |
U-BOLT |
| 28-6 |
S201-101002 |
NUT-HEX |
| 28-7 |
S411-100002 |
WASHER-SPRING |
| 29 |
31Y1-19160 |
PIPE ASSY-R |
| 30 |
31Y1-08230 |
PIPE ASSY-B |
| K31 |
Y171-024004 |
O-RING |
| 32 |
S107-120554 |
BOLT-SOCKET |
| 33 |
S107-100554 |
BOLT-SOCKET |
| K |
31Y1-19080 |
SEAL KIT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
