Номер |
Название |
|
|
| * |

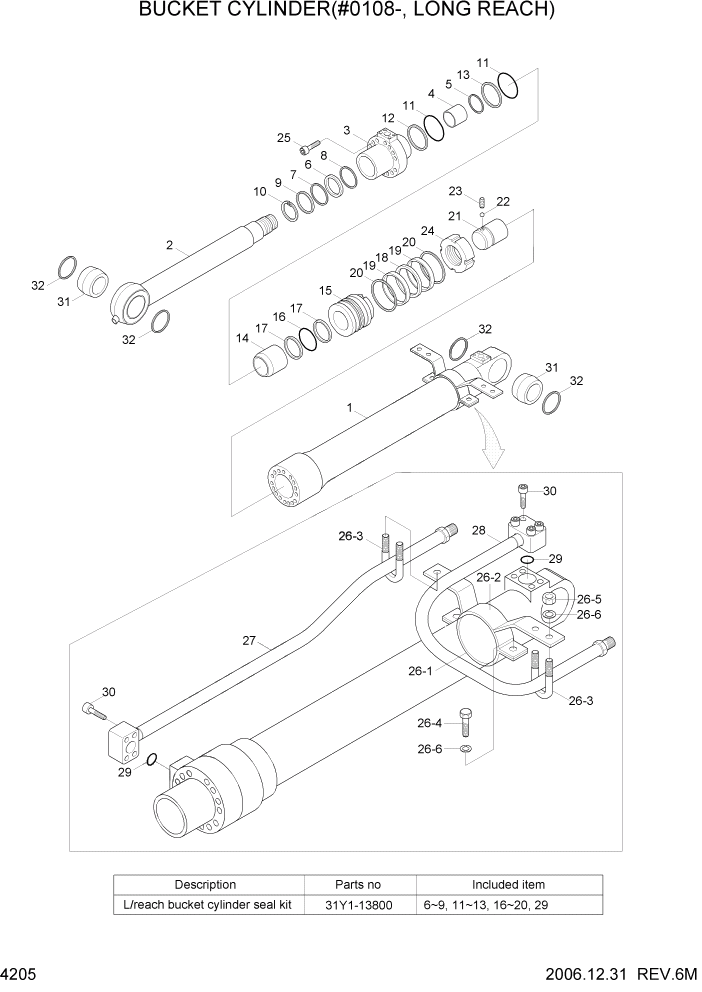

31N6-66101 |
BUCKET CYLINDER ASSY |
 |
| *-1 |
31Y1-13690 |
BUCKET CYL SUB ASSY |
| 1 |
31Y1-13700 |
TUBE ASSY |
| 2 |
31Y1-13750 |
ROD ASSY |
| 3 |
31Y1-14720 |
GLAND |
| 4 |
S732-070040 |
BUSHING-DU |
| 5 |
Y191-076000 |
RING-SNAP |
| K6 |
Y220-070011 |
SEAL-ROD |
| K7 |
Y180-070020 |
RING-BACK UP |
| K8 |
Y240-070011 |
RING-BUFFER |
| K9 |
Y110-070011 |
WIPER-DUST |
| 10 |
Y190-084000 |
RING-SNAP |
| K11 |
S631-090004 |
O-RING |
| K12 |
S641-090002 |
RING-BACK UP |
| K13 |
S641-090003 |
RING-BACK UP |
| 14 |
31YC-21030 |
RING-CUSHION |
| 15 |
31Y1-03810 |
PISTON |
| K16 |
S632-060004 |
O-RING |
| K17 |
S642-060003 |
RING-BACK UP |
| K18 |
Y420-100000 |
SEAL-PISTON |
| K19 |
Y310-100200 |
RING-WEAR |
| K20 |
Y440-100000 |
RING-DUST |
| 21 |
31YC-29060 |
SPEAR-CUSHION |
| 22 |
Y890-013011 |
BALL-STEEL |
| 23 |
S114-060064 |
SCREW-SET |
| 24 |
31YC-61191 |
NUT-LOCK |
| 25 |
S109-160552 |
BOLT-SOCKET |
| 31 |
31YC-11021 |
BUSHING-PIN |
| 32 |
Y010-065080 |
SEAL-DUST |
| 26 |
31Y1-03362 |
BAND ASSY |
| 26-1 |
31Y1-03372 |
BAND SUB ASSY |
| 26-2 |
31YC-31040 |
BAND |
| 26-3 |
S071-022230 |
U-BOLT |
| 26-4 |
S011-100352 |
BOLT-HEX |
| 26-5 |
S201-101002 |
NUT-HEX |
| 26-6 |
S411-100002 |
WASHER-SPRING |
| 27 |
31Y1-25030 |
PIPE ASSY-R |
| 28 |
31Y1-25040 |
PIPR ASSY-B |
| K29 |
Y171-015004 |
O-RING |
| 30 |
S107-080404 |
BOLT-SOCKET |
| K |
31Y1-13800 |
SEAL KIT |
|
|
