Номер |
Название |
|
|
| * |
31N8-10011 |

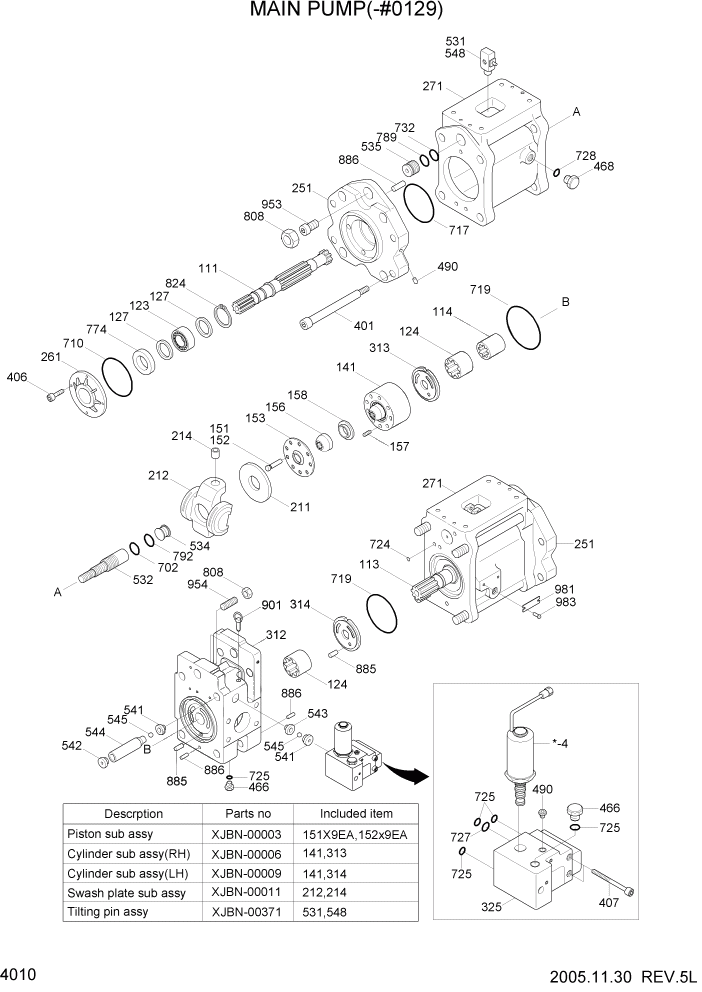

MAIN PUMP |
 |
| *-1 |
XJBN-00996 |
MAIN PUMP UNIT |
| 111 |
XJBN-00015 |
SHAFT-DRIVE(F) |
| 113 |
XJBN-00153 |
SHAFT-DRIVE(R) |
| 114 |
XJBN-00367 |
COUPLING-SPLINE |
| 123 |
XJBN-00017 |
BEARING-ROLLER |
| 124 |
XJBN-00018 |
BEARING-NEEDLE |
| 127 |
XJBN-00019 |
SPACER-BEARING |
| NS141 |
XJBN-00007 |
BLOCK-CYLINDER |
| NS151 |
XJBN-00004 |
PISTON |
| NS152 |
XJBN-00748 |
SHOE |
| 153 |
XJBN-00020 |
PLATE-SET |
| 156 |
XJBN-00021 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00022 |
SPRING-CYLINDER |
| 211 |
XJBN-00023 |
PLATE-SHOE |
| NS212 |
XJBN-00012 |
PLATE-SWASH |
| NS214 |
XJBN-00013 |
BUSHING-TILTING |
| 251 |
XJBN-00024 |
SUPPORT |
| 261 |
XJBN-00025 |
COVER(FR)-SEAL |
| 271 |
XJBN-00026 |
CASING-PUMP |
| 312 |
XJBN-00027 |
BLOCK-VALVE |
| NS313 |
XJBN-00008 |
PLATE(R)-VALVE |
| NS314 |
XJBN-00010 |
PLATE(L)-VALVE |
| N325 |
XJBN-00380 |
CASING-VALVE |
| 401 |
XJBN-00028 |
SCREW |
| 406 |
XJBN-00355 |
SCREW-HEX SOC HD |
| 407 |
XJBN-00381 |
SCREW |
| 466 |
XJBN-00356 |
PLUG |
| 468 |
XJBN-00357 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| NS531 |
XJBN-00369 |
PIN-TILTING |
| 532 |
XJBN-00033 |
PISTON-SERVO |
| 534 |
XJBN-00034 |
STOPPER(L) |
| 535 |
XJBN-00035 |
STOPPER(S) |
| N541 |
XJBN-00036 |
SEAT |
| N543 |
XJBN-00037 |
STOPPER 1 |
| N544 |
XJBN-00039 |
STOPPER 2 |
| N545 |
XJBN-00359 |
BALL-STEEL |
| NS548 |
XJBN-00360 |
PIN-FEED BACK |
| 702 |
XJBN-00040 |
O-RING |
| 710 |
XJBN-00041 |
O-RING |
| 717 |
XJBN-00042 |
O-RING |
| 719 |
XJBN-00043 |
O-RING |
| 724 |
XJBN-00361 |
O-RING |
| 725 |
XJBN-00362 |
O-RING |
| 727 |
XJBN-00283 |
O-RING |
| 728 |
XJBN-00363 |
O-RING |
| 732 |
XJBN-00047 |
O-RING |
| 774 |
XJBN-00048 |
SEAL-OIL |
| 789 |
XJBN-00049 |
RING-BACK UP |
| 792 |
XJBN-00050 |
RING-BACK UP |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00052 |
RING-SNAP |
| 885 |
XJBN-00053 |
PIN-2 |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00055 |
BOLT-EYE |
| 953 |
XJBN-00056 |
SCREW-SET |
| 954 |
XJBN-00057 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 983 |
XJBN-00341 |
PIN |
| *-2 |
XJBN-00001 |
REGULATOR |
| *-3 |
XJBN-00002 |
GEAR PUMP |
| *-4 |
XJBN-00014 |
CASING ASSY-EPPR VLV |
| 11 |
XJBN-00003 |
PISTON SUB ASSY |
| 13 |
XJBN-00006 |
CYLINDER ASSY-RH |
| 14 |
XJBN-00009 |
CYLINDER ASSY-LH |
| 30 |
XJBN-00011 |
SWASH PLATE ASSY |
| 53 |
XJBN-00371 |
TILTING PIN ASSY |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
