Номер |
Название |
|
|
| * |
31N8-50138 |

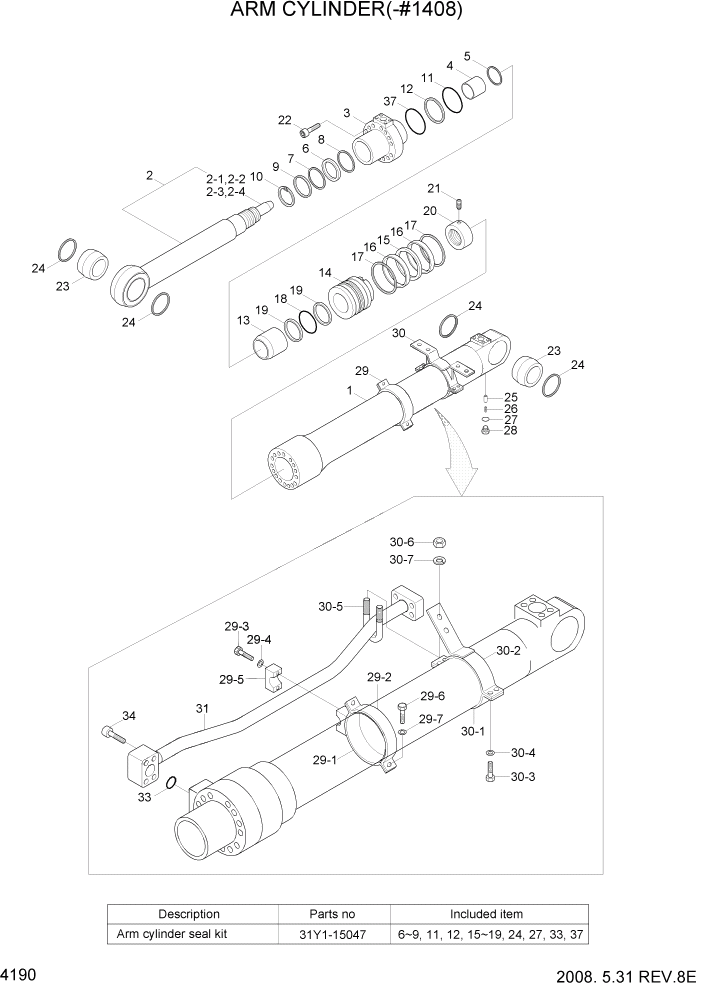

ARM CYLINDER ASSY |
 |
| *-1 |
31Y1-14907 |
ARM CYL SUB ASSY |
| 1 |
31Y1-14916 |
TUBE ASSY |
| 2 |
31Y1-14966 |
ROD ASSY |
| N2-1 |
@ |
SPEAR-CUSHION |
| N2-2 |
@ |
VALVE-CHECK |
| N2-3 |
@ |
SPRING-COIL |
| N2-4 |
@ |
RING-STOP |
| 3 |
31Y1-14995 |
GLAND |
| 4 |
S732-110045 |
BUSHING-DD2 |
| 5 |
Y191-117000 |
RING-SNAP |
| K6 |
Y220-110011 |
SEAL-ROD |
| K7 |
Y180-110020 |
RING-BACK UP |
| K8 |
Y240-110013 |
RING-BUFFER |
| K9 |
Y110-110011 |
WIPER-DUST |
| 10 |
Y190-126000 |
RING-SNAP |
| K11 |
31YC-99H70 |
O-RING |
| K12 |
31YC-CP140 |
RING-BACK UP |
| 13 |
31YC-26100 |
RING-CUSHION |
| 14 |
31Y1-15006 |
PISTON |
| K15 |
Y420-150000 |
SEAL-PISTON |
| K16 |
Y310-150003 |
RING-WEAR |
| K17 |
Y440-150002 |
RING-DUST |
| K18 |
S632-085004 |
O-RING |
| K19 |
31YC-CG085 |
RING-BACK UP |
| 20 |
31YC-68060 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| 22 |
S109-200904 |
BOLT-SOCKET |
| 23 |
31YC-11161 |
BUSHING-PIN |
| K24 |
Y000-090000 |
SEAL-DUST |
| 25 |
31YC-2A070 |
VALVE-CHECK |
| 26 |
31YC-99071 |
SPRING-COIL |
| K27 |
S631-014004 |
O-RING |
| 28 |
P220-110103 |
PLUG-HEX |
| 29 |
31Y1-15015 |
BAND ASSY-R |
| 29-1 |
31Y1-15050 |
BAND SUB ASSY |
| 29-2 |
31YC-31420 |
BAND |
| 29-3 |
S015-120452 |
BOLT-HEX |
| 29-4 |
S411-120002 |
WASHER-SPRING |
| 29-5 |
31YC-37040 |
CLAMP-PIPE |
| 29-6 |
S015-120402 |
BOLT-HEX |
| 29-7 |
S411-120002 |
WASHER-SPRING |
| 30 |
31Y1-21926 |
BAND ASSY-B |
| 30-1 |
31Y1-21935 |
BAND SUB ASSY |
| 30-2 |
31YC-32280 |
BAND |
| 30-3 |
S015-120452 |
BOLT-HEX |
| 30-4 |
S411-120002 |
WASHER-SPRING |
| 30-5 |
S071-023430 |
U-BOLT |
| 30-6 |
S201-101002 |
NUT-HEX |
| 30-7 |
S411-100002 |
WASHER-SPRING |
| 31 |
31Y1-15026 |
PIPE ASSY-R |
| K33 |
Y171-024004 |
O-RING |
| 34 |
S107-120554 |
BOLT-SOCKET |
| K37 |
S632-145001 |
O-RING |
| K |
31Y1-15047 |
SEAL KIT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
