Номер |
Название |
|
|
| * |

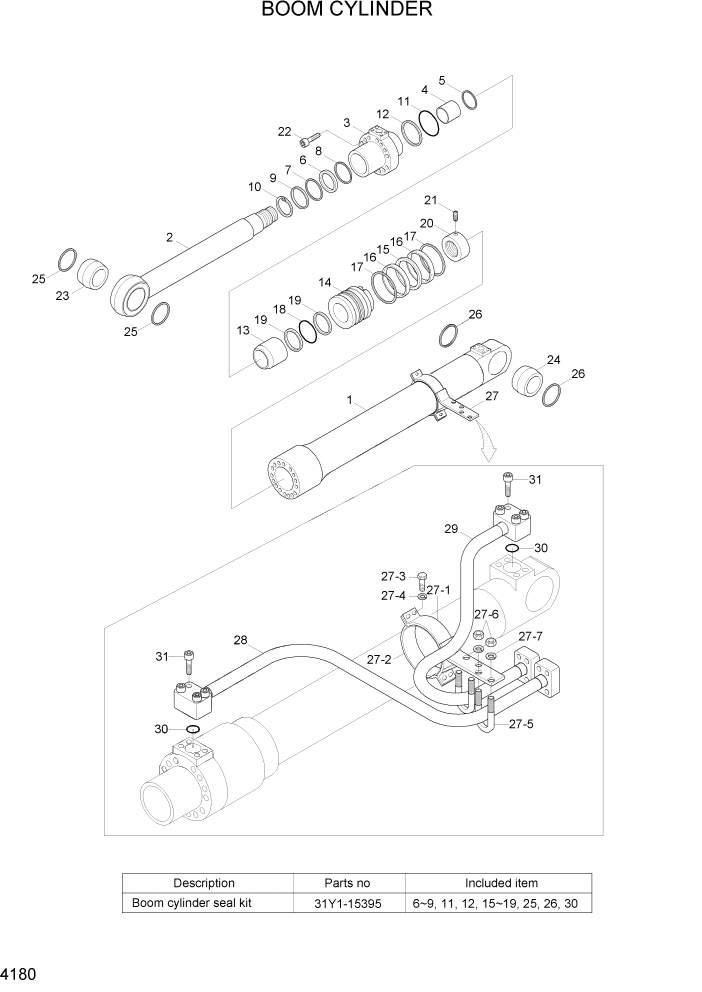

31N8-50125 |
CYLINDER ASS'Y,LH |
 |
| * |
31N8-50115 |
CYLINDER ASS'Y,RH |
| *-1 |
31Y1-15245 |
BOOM CYL SUB ASSY |
| 1 |
31Y1-15255 |
TUBE ASSY |
| 2 |
31Y1-15295 |
ROD ASSY |
| 3 |
31Y1-15325 |
GLAND |
| 4 |
S732-100040 |
BUSHING-DD2 |
| 5 |
Y191-107000 |
RING-SNAP |
| K6 |
Y220-100011 |
SEAL-ROD |
| K7 |
Y180-100020 |
RING-BACK UP |
| K8 |
Y240-100013 |
RING-BUFFER |
| K9 |
Y110-100011 |
WIPER-DUST |
| 10 |
Y190-114000 |
RING-SNAP |
| K11 |
S631-130004 |
O-RING |
| K12 |
31YC-BP130 |
RING-BACK UP |
| 13 |
31YC-26010 |
RING-CUSHION |
| 14 |
31Y1-15165 |
PISTON |
| K15 |
Y420-140000 |
SEAL-PISTON |
| K16 |
Y310-140000 |
RING-WEAR |
| K17 |
Y440-140000 |
RING-DUST |
| K18 |
S632-075004 |
O-RING |
| K19 |
S642-075003 |
RING-BACK UP |
| 20 |
31YC-64060 |
NUT-LOCK |
| 21 |
S114-100164 |
SCREW-SET |
| 22 |
S109-180904 |
BOLT-SOCKET |
| 23 |
31YC-11405 |
BUSHING |
| 24 |
31YC-11155 |
BUSHING-PIN |
| K25 |
Y000-100100 |
SEAL-DUST |
| K26 |
Y000-090000 |
SEAL-DUST |
| 27 |
31Y1-15335 |
BAND ASSY |
| 27-1 |
31Y1-15345 |
BAND SUB ASSY |
| 27-2 |
31YC-32100 |
BAND |
| 27-3 |
S015-120452 |
BOLT-HEX |
| 27-4 |
S411-120002 |
WASHER-SPRING |
| 27-5 |
S071-023430 |
U-BOLT |
| 27-6 |
S201-101002 |
NUT-HEX |
| 27-7 |
S411-100002 |
WASHER-SPRING |
| 28 |
31Y1-15355 |
PIPE ASSY-R,LH |
| 28 |
31Y1-15365 |
PIPE ASSY-R,RH |
| 29 |
31Y1-15371 |
PIPE ASSY-B,LH |
| 29 |
31Y1-15381 |
PIPE ASSY-B,RH |
| K30 |
Y171-024004 |
O-RING |
| 31 |
S107-120554 |
BOLT-SOCKET |
| K |
31Y1-15395 |
SEAL KIT |
|
|
