Номер |
Название |
|
|
| * |
@ |
SWING MOTOR ASSY |
 |
| *-2 |
31N8-10180 |

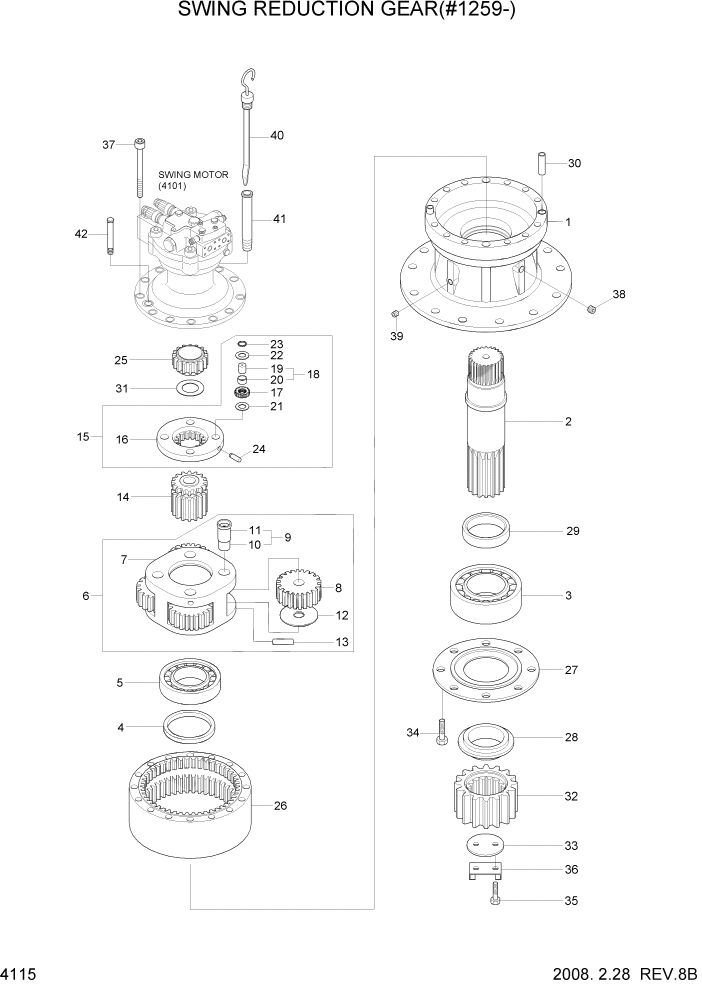

SWING REDUCTION GEAR |
| 1 |
XKAQ-00427 |
CASING |
| 2 |
XKAQ-00428 |
SHAFT-DRIVE |
| 3 |
XKAQ-00117 |
BEARING-ROLLER |
| 4 |
XKAQ-00119 |
SEAL-OIL |
| 5 |
XKAQ-00120 |
BEARING-ROLLER |
| 6 |
XKAQ-00429 |
CARRIER ASSY-2 |
| 7 |
XKAQ-00430 |
CARRIER-2 |
| 8 |
XKAQ-00431 |
GEAR-PLANET,2 |
| 9 |
XKAQ-00432 |
PIN ASSY-2 |
| 10 |
XKAQ-00433 |
PIN-2 |
| 11 |
XKAQ-00434 |
BUSHING-2 |
| 12 |
XKAQ-00435 |
WASHER-THRUST |
| 13 |
XKAQ-00050 |
PIN-SPRING |
| 14 |
XKAQ-00436 |
GEAR-SUN,2 |
| 15 |
XKAQ-00437 |
CARRIER ASSY-1 |
| 16 |
XKAQ-00438 |
CARRIER-1 |
| 17 |
XKAQ-00439 |
GEAR-PLANET,1 |
| 18 |
XKAQ-00440 |
PIN ASSY 1 |
| 19 |
XKAQ-00441 |
PIN 1 |
| 20 |
XKAQ-00079 |
BUSHING-1 |
| 21 |
XKAQ-00417 |
PLATE-SIDE 1 |
| 22 |
XKAQ-00416 |
PLATE-SIDE 2 |
| 23 |
XKAQ-00041 |
RING-STOP |
| 24 |
XKAQ-00048 |
PIN-SPRING |
| 25 |
XKAQ-00442 |
GEAR-SUN,1 |
| 26 |
XKAQ-00444 |
GEAR-RING |
| 27 |
XKAQ-00443 |
PLATE-COVER |
| 28 |
XKAQ-00445 |
SPACER |
| 29 |
XKAQ-00446 |
RING-SPACER |
| 30 |
XKAQ-00072 |
PIN-KNOCK |
| 31 |
XKAQ-00447 |
PLATE-THRUST 3 |
| 32 |
XKAQ-00013 |
GEAR-PINION |
| 33 |
XKAQ-00043 |
PLATE-LOCK |
| 34 |
XKAQ-00064 |
BOLT-HEX |
| 35 |
XKAQ-00042 |
BOLT-HEX |
| 36 |
XKAQ-00292 |
WASHER-LOCK |
| 37 |
XKAQ-00448 |
BOLT-SOCKET |
| 38 |
XKAQ-00049 |
PLUG |
| 39 |
XKAQ-00066 |
PLUG |
| 40 |
XKAQ-00167 |
PIPE-GAUGE |
| 41 |
XKAQ-00449 |
BAR-GAGE |
| 42 |
XKAQ-00143 |
AIR BREATHER ASSY |
|
|
