Номер |
Название |
|
|
| *-2 |
31E9-01052 |

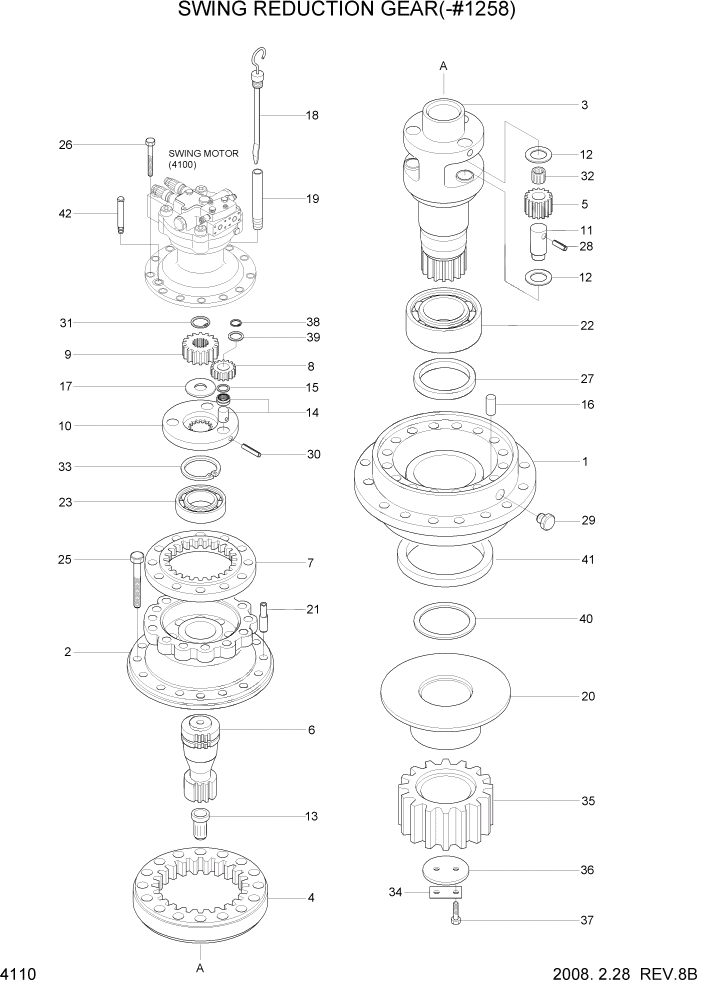

SWING REDUCTION GEAR |
 |
| 1 |
XKAQ-00329 |
CASING-FRONT |
| 2 |
XKAQ-00003 |
CASING-MIDDLE |
| 3 |
XKAQ-00328 |
SHAFT-DRIVE |
| 4 |
XKAQ-00006 |
GEAR-RING 2 |
| 5 |
XKAQ-00022 |
GEAR-PLANET 2 |
| 6 |
XKAQ-00012 |
GEAR-2 SUN |
| 7 |
XKAQ-00008 |
GEAR-RING 1 |
| 8 |
XKAQ-00137 |
GEAR-PLANET 1 |
| 9 |
XKAQ-00061 |
GEAR-1 SUN |
| 10 |
XKAQ-00016 |
CARRIER |
| * |
XKAQ-00021 |
PIN ASSY NO.2 |
| N11 |
XKAQ-00060 |
PIN ASSY-2 |
| N32 |
XKAQ-00046 |
BUSHING 2 |
| 12 |
XKAQ-00059 |
WASHER-THRUST |
| 13 |
XKAQ-00058 |
BUTTON-THRUST |
| 14 |
XKAQ-00136 |
PIN ASSY 1 |
| 15 |
XKAQ-00057 |
PLATE-SIDE 1 |
| 16 |
XKAQ-00056 |
MAGNET |
| 17 |
XKAQ-00055 |
PLATE-SIDE 3 |
| 18 |
XKAQ-00034 |
BAR-GAUGE |
| 19 |
XKAQ-00035 |
PIPE-GAUGE |
| 20 |
XKAQ-00111 |
RING-SPACER |
| 21 |
XKAQ-00053 |
PIN-KNOCK |
| 22 |
XKAQ-00028 |
BEARING-ROLLER |
| 23 |
XKAQ-00027 |
BEARING-ROLLER |
| 25 |
XKAQ-00052 |
BOLT-SOCKET |
| 26 |
XKAQ-00051 |
BOLT-SOCKET |
| 27 |
XKAQ-00330 |
SEAL-OIL |
| 28 |
XKAQ-00050 |
PIN-SPRING |
| 29 |
XKAQ-00049 |
PLUG-PRESSURE |
| 30 |
XKAQ-00048 |
PIN-SPRING |
| 31 |
XKAQ-00047 |
RING-STOP |
| 33 |
XKAQ-00045 |
RING-STOP |
| 34 |
XKAQ-00292 |
WASHER-LOCK |
| 35 |
XKAQ-00013 |
GEAR-PINION |
| 36 |
XKAQ-00296 |
PLATE-LOCK |
| 37 |
XKAQ-00042 |
BOLT-HEX |
| 38 |
XKAQ-00041 |
RING-STOP |
| 39 |
XKAQ-00040 |
PLATE-SIDE 2 |
| 40 |
XKAQ-00109 |
CIRCLIP |
| 41 |
XKAQ-00110 |
V-SEAL |
| 42 |
XKAQ-00143 |
AIR BREATHER ASSY |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
