Номер |
Название |
|
|
| * |

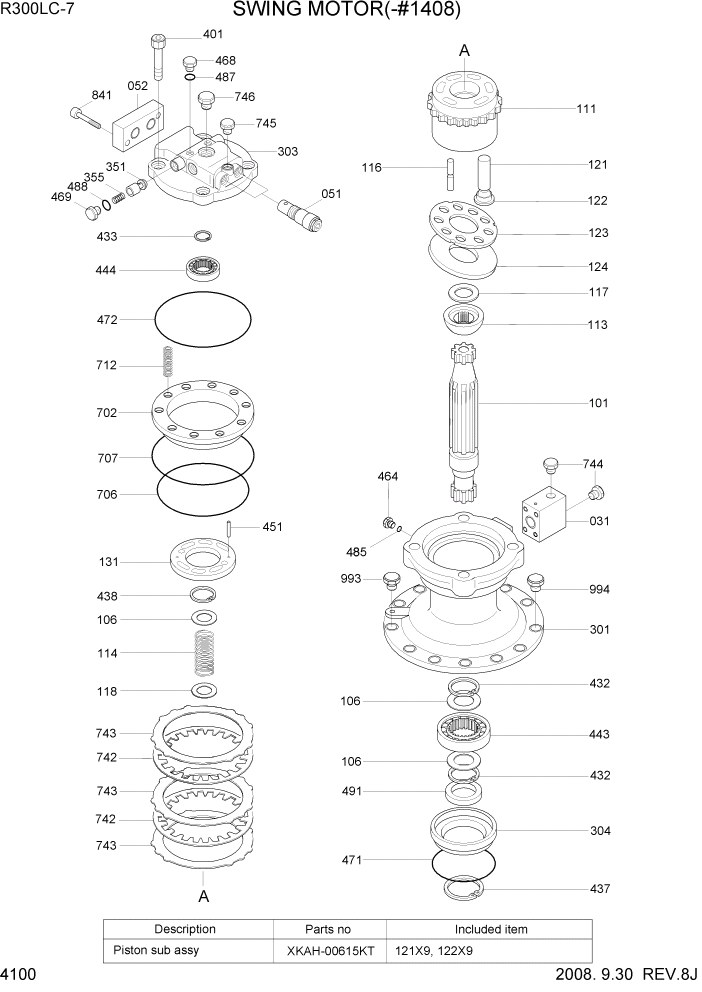

31N8-10122 |
SWING MOTOR ASSY |
 |
| * |
31N8-10123 |
SWING MOTOR ASSY |
| *-1 |
31N8-12010 |
SWING MOTOR UNIT |
| 31 |
XKAH-00121 |
VALVE-BRAKE |
| 51 |
XKAH-00122 |
VALVE-RELIEF |
| 52 |
XKAH-00115 |
BLOCK |
| 101 |
XKAH-00162 |
SHAFT-DRIVE |
| 106 |
XKAH-00161 |
SPACER |
| 111 |
XKAH-00160 |
BLOCK-CYLINDER |
| 113 |
XKAH-00159 |
BUSHING-SPHERICAL |
| 114 |
XKAH-00158 |
SPRING |
| 116 |
XKAH-00157 |
ROD-PUSH |
| 117 |
XKAH-00156 |
SPACER F |
| 118 |
XKAH-00155 |
SPACER R |
| NS121 |
XKAH-00154 |
PISTON |
| NS122 |
XKAH-00153 |
SHOE |
| 123 |
XKAH-00152 |
RETAINER |
| 124 |
XKAH-00151 |
PLATE-SHOE |
| 131 |
XKAH-00150 |
PLATE-VALVE |
| 301 |
XKAH-00149 |
CASING |
| 303 |
XKAH-00546 |
CASING-VALVE |
| 304 |
XKAH-00930 |
COVER-FRONT |
| 351 |
XKAH-00146 |
PLUNGER |
| 355 |
XKAH-00145 |
SPRING |
| 401 |
XKAH-00144 |
BOLT-SOCKET |
| 432 |
XKAH-00143 |
RING-SNAP |
| 433 |
XKAH-00142 |
RING-SNAP |
| 437 |
XKAH-00141 |
RING-SNAP |
| 438 |
XKAH-00140 |
RING-SNAP |
| 443 |
XKAH-00139 |
BEARING-ROLLER |
| 444 |
XKAH-00138 |
BEARING-ROLLER |
| 451 |
XKAH-00137 |
PIN-SPRING |
| 464 |
XKAH-00136 |
PLUG-VP |
| 468 |
XKAH-00136 |
PLUG-VP |
| 469 |
XKAH-00135 |
PLUG |
| 471 |
XKAH-00134 |
O-RING |
| 472 |
XKAH-00133 |
O-RING |
| 485 |
XKAH-00052 |
O-RING |
| 487 |
XKAH-00052 |
O-RING |
| 488 |
XKAH-00132 |
O-RING |
| 491 |
XKAH-00929 |
SEAL-OIL |
| 702 |
XKAH-00130 |
PISTON-BRAKE |
| 706 |
XKAH-00129 |
O-RING |
| 707 |
XKAH-00128 |
O-RING |
| 712 |
XKAH-00127 |
SPRING-BRAKE |
| 742 |
XKAH-00126 |
PLATE-FRICTION |
| 743 |
XKAH-00125 |
PLATE-SEPERATION |
| 744 |
XKAH-00120 |
PLUG |
| 745 |
XKAH-00119 |
PLUG |
| 746 |
XKAH-00118 |
PLUG |
| 841 |
XKAH-00114 |
BOLT-SOCKET |
| 993 |
XKAH-00124 |
PLUG |
| 994 |
XKAH-00123 |
PLUG |
| *-2 |
@ |
SWING REDUCTION GEAR |
| S |
XKAH-00615KT |
PISTON ASSY |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
