Номер |
Название |
|
|
| * |

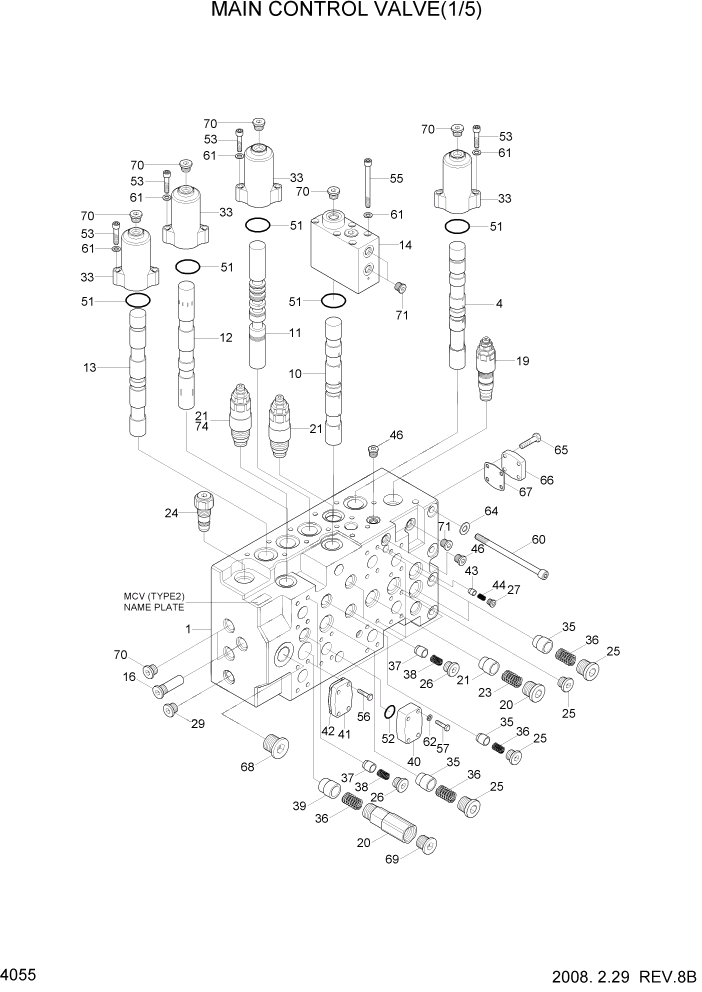

31N8-17000 |
MAIN CONTROL V/V |
 |
| * |
31N8-19000 |
MAIN CONTROL V/V |
| N1 |
31N8-17601 |
HOUSING-P1 |
| 4 |
31N8-17220 |
SPOOL ASSY-TR |
| 10 |
31N8-17280 |
SPOOL ASSY-BOOM |
| 11 |
31N8-17290 |
SPOOL ASSY-ARM 2 |
| 12 |
31N8-17300 |
SPOOL ASSY-ARM REGEN |
| 13 |
31N8-17310 |
SPOOL ASSY-BUCKET |
| 16 |
31N8-17360 |
BUCKET ORIFICE ASSY |
| 19 |
31N8-17390 |
MAIN RELIEF VALVE |
| 20 |
31N8-17420 |
VALVE-CHECK |
| 21 |
31N8-17430 |
OVERLOAD RELIEF VALVE |
| 24 |
31N8-17460 |
NEGACON VLV ASSY |
| 25 |
31N8-17510 |
PLUG-LOAD CHECK |
| 26 |
31N8-17520 |
PLUG-LOAD CHECK |
| 27 |
31N4-17900 |
PLUG KIT(PF1/8) |
| 29 |
31N8-17550 |
PLUG KIT(PF3/8) |
| 33 |
31N8-18140 |
COVER B1-PILOT |
| 35 |
31N8-18190 |
POPPET 1-L/C |
| 36 |
31N8-18200 |
SPRING 1-L/C |
| 37 |
31N8-18220 |
POPPET 2-L/C |
| 38 |
31N8-18230 |
SPRING 2-L/C |
| 39 |
31N8-18370 |
POPPET-BKT L/C |
| 40 |
31N8-18970 |
FLANGE-PORT PLUG |
| N41 |
31N8-18980 |
COVER-PORT PLUG |
| N42 |
31N8-18990 |
GASKET-PORT PLUG |
| 43 |
31N8-18530 |
POPPET-SIGNAL |
| 45 |
31N8-18650 |
SPRING-BC SPOOL |
| 46 |
31N8-18680 |
PLUG |
| 51 |
31N8-19630 |
O-RING |
| 52 |
31N8-19640 |
O-RING |
| 53 |
S107-080454 |
BOLT-SOCKET |
| 55 |
S107-081054 |
BOLT-SOCKET |
| N56 |
S017-100456 |
BOLT-HEX |
| 57 |
S107-100354 |
BOLT-SOCKET |
| N60 |
S107-161704 |
BOLT-SOCKET |
| 61 |
S411-080006 |
WASHER-SPRING |
| 62 |
S411-100006 |
WASHER-SPRING |
| N64 |
S411-160006 |
WASHER-SPRING |
| N65 |
S017-120156 |
BOLT-HEX |
| N66 |
31N8-19260 |
COVER-TANK PORT |
| N67 |
31N8-19270 |
GASKET-TANK PORT |
| N68 |
31N8-19430 |
CAP-DUST |
| N69 |
31N8-19440 |
CAP-DUST |
| N70 |
31N8-19450 |
CAP-DUST |
| N71 |
31N8-19460 |
CAP-DUST |
| 74 |
31N8-17470 |
OVERLOAD RELIEF VALVE |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
