Номер |
Название |
|
|
| * |

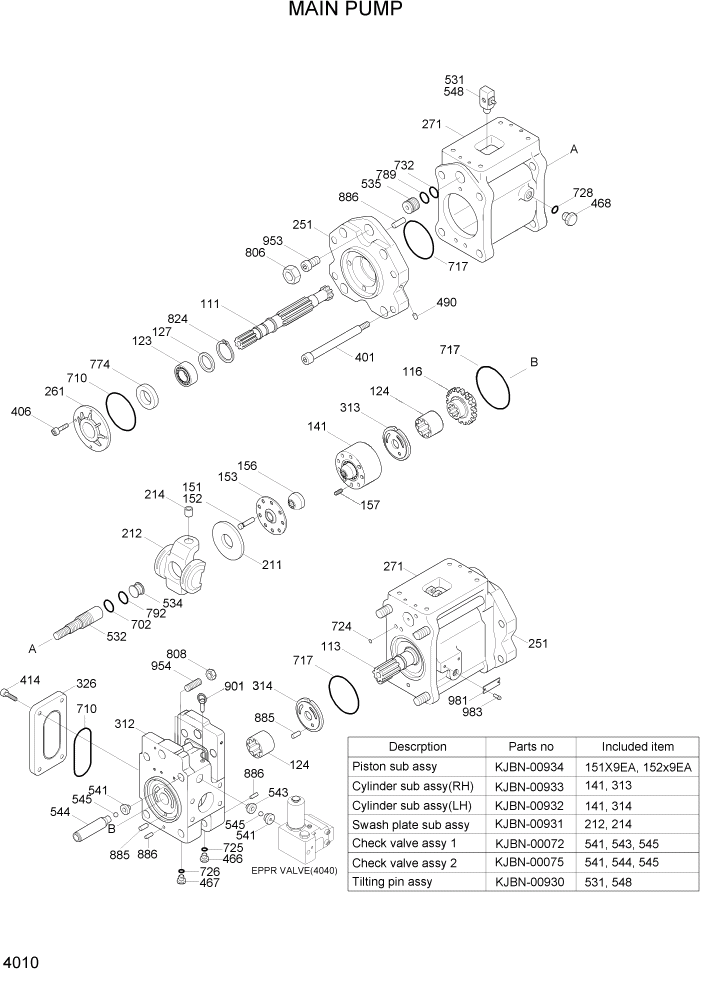

31N8-10030 |
MAIN PUMP |
 |
| *-1 |
XJBN-00961 |
MAIN PUMP UNIT |
| 111 |
XJBN-00953 |
SHAFT(F)-DRIVE |
| 113 |
XJBN-00952 |
SHAFT(R)-DRIVE |
| 116 |
XJBN-00951 |
GEAR-1ST |
| 123 |
XJBN-00950 |
BEARING-ROLLER |
| 124 |
XJBN-00949 |
BEARING-NEEDLE |
| 127 |
XJBN-00081 |
SPACER-BEARING |
| 141 |
XJBN-00948 |
BLOCK-CYLINDER |
| 151 |
XJBN-00947 |
PISTON |
| 152 |
XJBN-00946 |
SHOE |
| 153 |
XJBN-00945 |
PLATE-SET |
| 156 |
XJBN-00083 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00944 |
SPRING-CYLINDER |
| 211 |
XJBN-00085 |
PLATE-SHOE |
| 212 |
XJBN-00943 |
PLATE-SWASH |
| 214 |
XJBN-00071 |
BUSHING-TILTING |
| 251 |
XJBN-00942 |
SUPPORT-SP |
| 261 |
XJBN-00941 |
COVER(F)-SEAL |
| 271 |
XJBN-00088 |
CASING-PUMP |
| 312 |
XJBN-00940 |
BLOCK-VALVE |
| 313 |
XJBN-00939 |
PLATE(R)-VALVE |
| 314 |
XJBN-00938 |
PLATE(L)-VALVE |
| 326 |
XJBN-00937 |
COVER |
| 401 |
XJBN-00090 |
SCREW-HEX SOC HD |
| 406 |
XJBN-00355 |
SCREW-HEX SOC HD |
| 414 |
XJBN-00160 |
SCREW-SOCKET |
| 466 |
XJBN-00356 |
PLUG |
| 467 |
XJBN-00936 |
PLUG |
| 468 |
XJBN-00357 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| 531 |
XJBN-00956 |
PIN-TILTING |
| 532 |
XJBN-00955 |
PISTON-SERVO |
| 534 |
XJBN-00092 |
STOPPER(L) |
| 535 |
XJBN-00093 |
STOPPER(S) |
| 541 |
XJBN-00859 |
SEAT |
| 543 |
XJBN-00860 |
STOPPER |
| 544 |
XJBN-00861 |
STOPPER |
| 545 |
XJBN-00359 |
BALL-STEEL |
| 548 |
XJBN-00360 |
PIN-FEED BACK |
| 702 |
XJBN-00862 |
O-RING |
| 710 |
XJBN-00878 |
O-RING |
| 717 |
XJBN-00096 |
O-RING |
| 724 |
XJBN-00361 |
O-RING |
| 725 |
XJBN-00362 |
O-RING |
| 726 |
XJBN-00233 |
O-RING |
| 728 |
XJBN-00363 |
O-RING |
| 732 |
XJBN-00863 |
O-RING |
| 774 |
XJBN-00906 |
SEAL-OIL |
| 789 |
XJBN-00864 |
RING-BACK UP |
| 792 |
XJBN-00865 |
RING-BACK UP |
| 806 |
XJBN-00396 |
NUT-HEX |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00866 |
RING-SNAP |
| 885 |
XJBN-00103 |
PIN-VALVE PLATE |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00393 |
BOLT-EYE |
| 953 |
XJBN-00954 |
SCREW-SET |
| 954 |
XJBN-00106 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 683 |
XJBN-00341 |
PIN |
| *-2 |
XJBN-00958 |
REGULATOR ASSY |
| *-3 |
XJBN-00935 |
PUMP-GEAR |
| *-4 |
XJBN-00014 |
EPPR VALVE ASSY |
| 11 |
XJBN-00934 |
PISTON ASSY |
| 13 |
XJBN-00933 |
CYLINDER(R) ASSY |
| 14 |
XJBN-00932 |
CYLINDER(L) ASSY |
| 30 |
XJBN-00931 |
SWASH PLATE ASSY |
| 41 |
XJBN-00072 |
CHECK VALVE ASSY 1 |
| 42 |
XJBN-00075 |
CHECK VALVE ASSY 2 |
| 530 |
XJBN-00930 |
TILTING PIN ASSY |
|
|
