Номер |
Название |
|
|
| * |

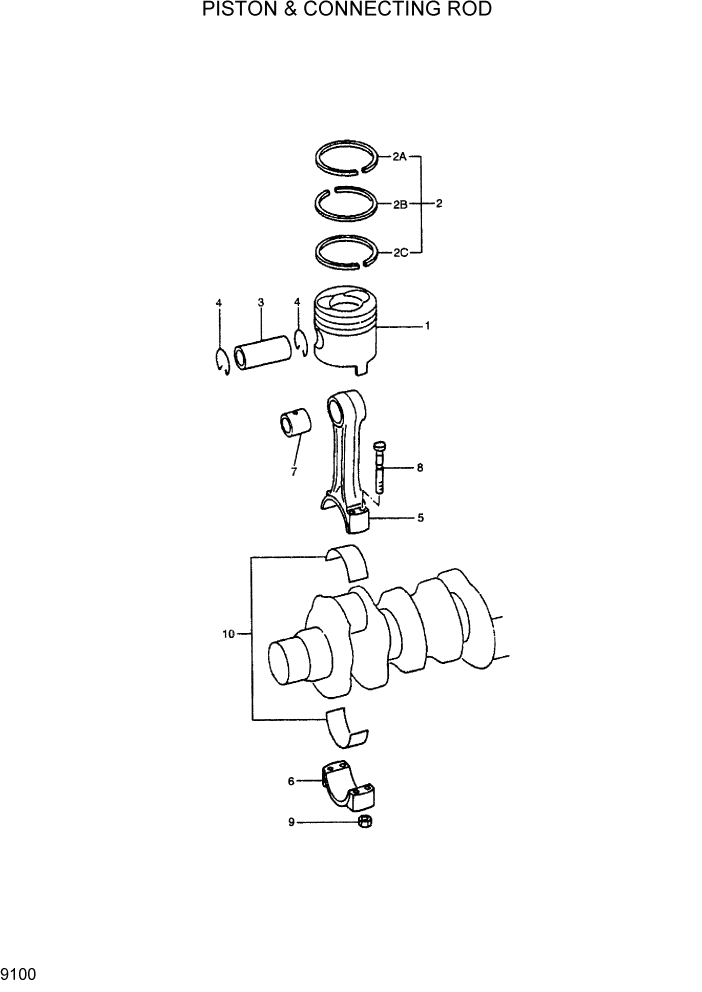

23400-83411 |
PISTON ASSY |
 |
| 1 |
23411-83411 |
PISTON,STD |
| 1 |
23411-83894 |
PISTON,OS0.50 |
| 1 |
23411-83895 |
PISTON,OS0.75 |
| 1 |
23411-83896 |
PISTON,OS1.00 |
| 2 |
23040-8303 |
RING SET-PISTON,STD |
| 2 |
23040-83931 |
RING SET-PISTON,OS0.50 |
| 2 |
23040-83932 |
RING SET-PISTON,OS0.75 |
| 2 |
23040-83933 |
RING SET-PISTON,OS1.00 |
| 0-08333333 |
23431-83 |
RING-COMP NO.1 STD |
| 2B |
23432-836 |
RING-COMP NO.2 STD |
| 2C |
23433-8302 |
RING-OIL,STD |
| 3 |
23412-83 |
PIN-PISTON |
| 4 |
23414-72 |
RING-SNAP |
| * |
23510-834 |
CONNECTING ROD ASSY |
| 5 |
23511-8381 |
ROD-CONNECTION |
| 6 |
23512-8301 |
CAP-CONNECTION ROD |
| 7 |
23518-834 |
BUSHING |
| 8 |
23513-83001 |
BOLT-CONNECTING ROD |
| 9 |
23514-83 |
NUT |
| 10 |
23060-83 |
BEARING SET-C/R,STD |
| 10 |
23611-834 |
BEARING-C/R,STD(LOW) |
| 10 |
23612-834 |
BEARING-C/R,SYD(UPP) |
| 10 |
23060-83901 |
BEARING SET-C/R,US0.25 |
| 10 |
23060-83902 |
BEARING SET-C/R,US0.50 |
| 10 |
23060-83903 |
BEARING SET-C/R,US0.75 |
| 10 |
23060-83904 |
BEARING SET-C/R,US1.00 |
| 10 |
23060-83905 |
BEARING SET-C/R,US1.25 |
| 10 |
23060-83906 |
BEARING SET-C/R,US1.50 |
|
|
