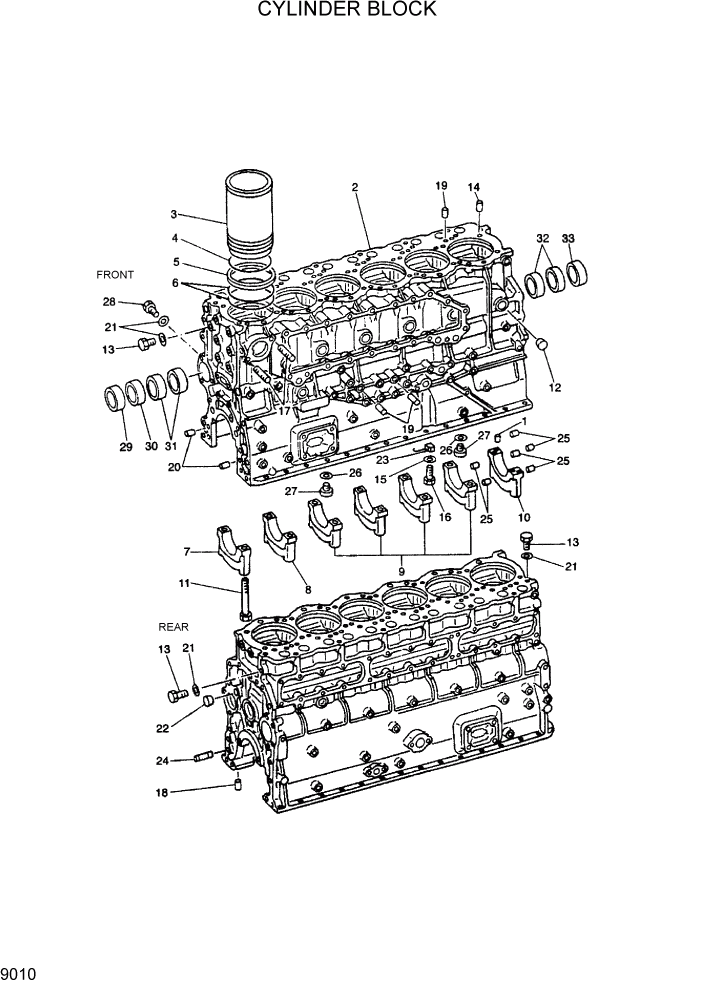

Номер |
Название |
|
|
| * |
21101-8366 |
CRANKCASE ASSY |
 |
| 1 |
21135-72001 |
PIN-DOWEL |
| 2 |
21111-83661 |
CRANK CASE |
| 3 |
21131-83002 |
LINER-CYLINDER |
| 4 |
21193-83002 |
O-RING |
| 5 |
21138-83 |
PACKING-RUBBER |
| 6 |
21139-83001 |
PACKING-RUBBER |
| 7 |
21112-830002 |
CAP-BEARING,FRONT |
| 8 |
21117-830002 |
CAP-BEARING,NO.2 |
| 9 |
21113-830002 |
CAP-BEARING,MIDDLE |
| 10 |
21118-830002 |
CAP-BEARING,REAR |
| 11 |
21114-83 |
BOLT |
| 12 |
15733-25 |
CAP-SEALING |
| 13 |
21194-83 |
PLUG |
| 14 |
21195-83 |
PLUG |
| 15 |
21196-83 |
WASHER-LOCK |
| 16 |
21140-83003 |
VALVE-CHECK |
| 17 |
11545-10301 |
STUD |
| 18 |
14303-0818 |
PIN-DOWEL |
| 19 |
14303-102 |
PIN-DOWEL |
| 20 |
14303-1224 |
PIN-DOWEL |
| 21 |
17512-1 |
GASKET |
| 22 |
15732-28001 |
CAP-SEALING |
| 23 |
21151-838 |
BODY-OIL JET |
| 24 |
21192-72 |
PIN-DOWEL |
| 25 |
24622-72 |
PIN-DOWEL |
| 26 |
21195-72 |
GASKET |
| 27 |
21188-72 |
PLUG-SCREW |
| 28 |
21186-83 |
SCREW SET |
| 29 |
21181-83 |
BUSHING-CAM SHAFT 1 |
| 30 |
21182-83 |
BUSHING-CAM SHAFT 2 |
| 31 |
21183-83 |
BUSHING-CAM SHAFT 3 |
| 32 |
21184-83 |
BUSHING-CAM SHAFT 4 |
| 33 |
21185-83 |
BUSHING-CAM SHAFT 5 |
|
|
