Номер |
Название |
|
|
| * |

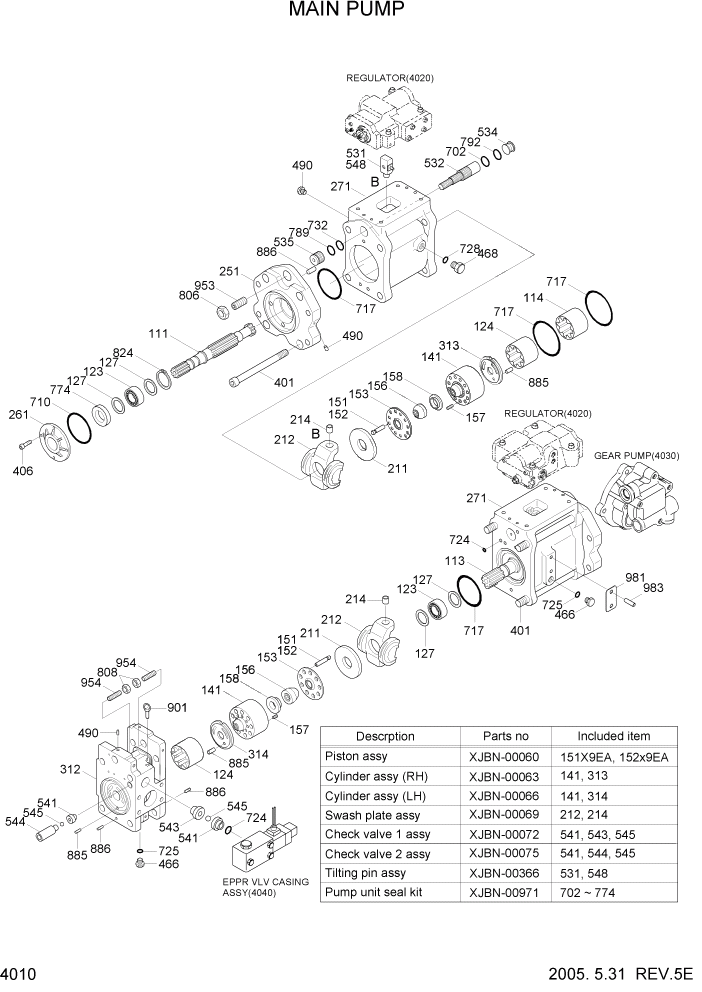

31N6-10010 |
MAIN PUMP ASSY |
 |
| * |
31N6-10050 |
MAIN PUMP ASSY |
| * |
31N6-10051 |
MAIN PUMP ASSY |
| *-1 |
@ |
MAIN PUMP UNIT |
| 111 |
XJBN-00077 |
DRIVE SHAFT(F) |
| 113 |
XJBN-00078 |
DRIVE SHAFT(R) |
| 114 |
XJBN-00351 |
COUPLING-SPLINE |
| 123 |
XJBN-00079 |
BEARING-ROLLER |
| 123 |
XJBN-00950 |
BEARING-ROLLER |
| 124 |
XJBN-00080 |
BEARING-NEEDLE |
| 127 |
XJBN-00081 |
SPACER-BEARING |
| S141 |
XJBN-00067 |
BLOCK-CYLINDER |
| S151 |
XJBN-00061 |
PISTON |
| S152 |
XJBN-00062 |
SHOE |
| *-11 |
XJBN-01116 |
SET PLATE KIT |
| 153 |
XJBN-00082 |
PLATE-SET |
| 156 |
XJBN-00353 |
BUSHING-SPHERICAL |
| 156 |
XJBN-00083 |
BUSHING-SPHERICAL |
| 158 |
XJBN-00354 |
SPACER |
| 157 |
XJBN-00084 |
SPRING-CYLINDER |
| 211 |
XJBN-00085 |
PLATE-SHOE |
| S212 |
XJBN-00070 |
PLATE-SWASH |
| S214 |
XJBN-00071 |
BUSHING-TILTING |
| 251 |
XJBN-00086 |
SUPPORT |
| 261 |
XJBN-00087 |
COVER(F)-SEAL |
| 271 |
XJBN-00088 |
CASING-PUMP |
| 312 |
XJBN-00089 |
BLOCK-VALVE |
| S313 |
XJBN-00065 |
PLATE-VALVE(R) |
| S314 |
XJBN-00068 |
PLATE-VALVE(L) |
| 401 |
XJBN-00090 |
SCREW-HEX SOC HD |
| 406 |
XJBN-00355 |
SCREW-HEX SOC HD |
| 466 |
XJBN-00356 |
PLUG |
| 468 |
XJBN-00357 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| S531 |
XJBN-00358 |
PIN-TILTING |
| 532 |
XJBN-00091 |
PISTON-SERVO |
| 534 |
XJBN-00092 |
STOPPER(L) |
| 535 |
XJBN-00093 |
STOPPER(S) |
| S541 |
XJBN-00073 |
SEAT |
| S541 |
XJBN-00859 |
SEAT |
| S543 |
XJBN-00074 |
STOPPER 1 |
| S543 |
XJBN-00860 |
STOPPER |
| S544 |
XJBN-00076 |
STOPPER 2 |
| S544 |
XJBN-00861 |
STOPPER |
| S545 |
XJBN-00359 |
BALL-STEEL |
| S548 |
XJBN-00360 |
PIN-FEED BACK |
| K702 |
XJBN-00918 |
O-RING |
| K710 |
XJBN-00095 |
O-RING |
| K717 |
XJBN-00096 |
O-RING |
| K724 |
XJBN-00361 |
O-RING |
| K725 |
XJBN-00362 |
O-RING |
| K728 |
XJBN-00363 |
O-RING |
| K732 |
XJBN-00912 |
O-RING |
| K774 |
XJBN-00098 |
SEAL-OIL |
| 789 |
XJBN-00099 |
RING-BACK UP |
| 792 |
XJBN-00100 |
BACK-UP RING |
| 806 |
XJBN-00101 |
NUT |
| 808 |
XJBN-00364 |
NUT |
| 824 |
XJBN-00102 |
RING-SNAP |
| 885 |
XJBN-00103 |
PIN-VALVE PLATE |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00104 |
BOLT-EYE |
| 953 |
XJBN-00105 |
SCREW-SET |
| 954 |
XJBN-00106 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 981 |
XJBN-00391 |
NAME PLATE |
| 983 |
XJBN-00341 |
PIN |
| *-2 |
@ |
REGULATOR |
| *-3 |
@ |
GEAR PUMP |
| *-4 |
@ |
EPPR VALVE |
| 11 |
XJBN-00060 |
PISTON SUB ASSY |
| 13 |
XJBN-00063 |
CYLINDER ASSY(RH) |
| 14 |
XJBN-00066 |
CYLINDER ASSY(LH) |
| 30 |
XJBN-00069 |
SWASH PLATE SUB ASSY |
| 41 |
XJBN-00072 |
CHECK VALVE ASSY 1 |
| 42 |
XJBN-00075 |
CHECK VALVE ASSY 2 |
| 530 |
XJBN-00366 |
TILTING PIN ASSY |
| K |
XJBN-00971 |
PUMP UNIT SEAL KIT |
|
|
