Номер |
Название |
|
|
| * |
11N6-90021 |

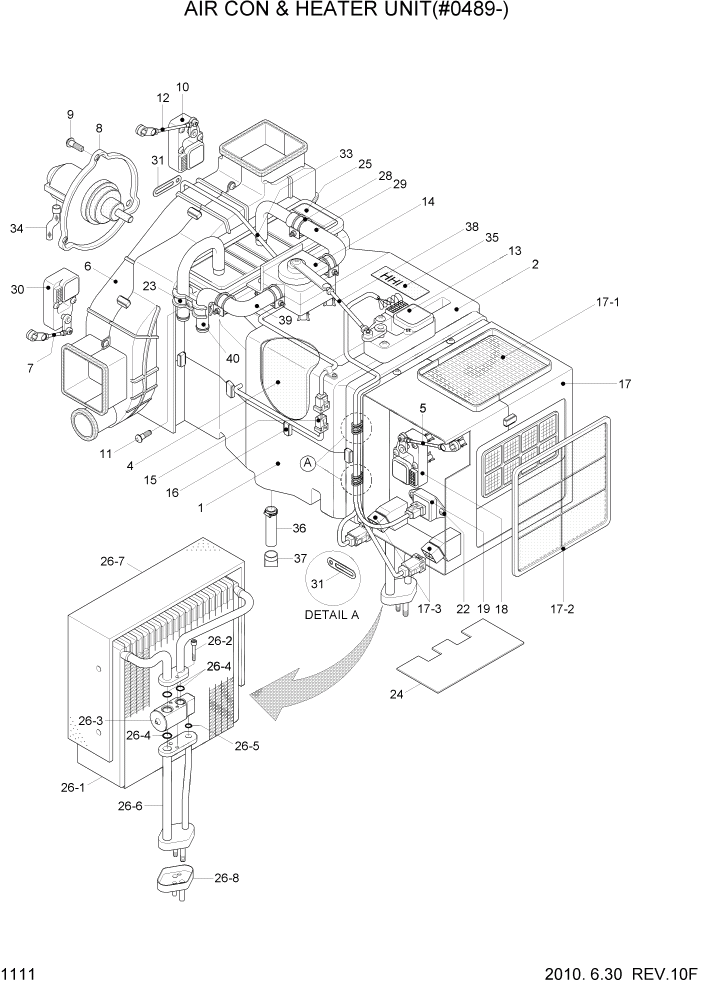

AIRCON & HEATER UNIT |
 |
| 1 |
AM12101400-0 |
HVAC CASE-LOW |
| 2 |
AH000089 |
HVAC CASE-UPP |
| 4 |
AM75001000-2 |
EVAC INSULATION-LOW |
| 5 |
AM52300100-4 |
ROD-INTAKE |
| 6 |
AH000106 |
BLOWER CASE ASSY |
| 7 |
AW70002400-4 |
ROD-DEF/FOOT |
| 8 |
11N6-90700 |
FAN & MOTOR |
| 8-1 |
AW22000800-2 |
FAN |
| 8-2 |
AW21002500-1 |
MOTOR |
| 9 |
AH000866 |
SCREW |
| 10 |
11N6-90710 |
MOTOR ACT-VENT |
| 11 |
K500531 |
SCREW |
| 12 |
AW70002300-4 |
ROD-VENT |
| 13 |
AH100311 |
MOTOR ACT-TEMP |
| 14 |
AH001160 |
VLAVE-WATER |
| 15 |
A165400100-2 |
SENSOR-DUCT |
| 16 |
4AH-0688 |
CLIP-CASE |
| 17 |
AH000055 |
INTAKE CASE ASSY |
| 17-1 |
11N6-90760 |
AIR FILTER-FRESH |
| 17-2 |
11N6-90770 |
AIR FILTER-REFRESH |
| 17-3 |
11N6-90820 |
RELAY |
| 18 |
11N6-90740 |
MOTOR ACT-INTAKE |
| 19 |
AM86000601-2 |
RESISTOR ASSY |
| 22 |
K500533 |
SCREW |
| 23 |
AH000314 |
CLAMP-H/RAD PIPE |
| 24 |
A112050700-3 |
PLATE-SIDE |
| 25 |
11N6-90780 |
HEATER CORE |
| 26 |
11N6-90790 |
EVAP CORE ASSY |
| 26 |
11N6-90791 |
EVAP CORE ASSY |
| 26-1 |
A111056400-1 |
CORE ASSY-LAMI |
| 26-2 |
A111750100-4 |
BOLT-WRENCH,HEX |
| 26-3 |
11N6-90800 |
VALVE-EXPANSION |
| 26-4 |
A305000212-2 |
O-RING |
| 26-5 |
A305000211-2 |
O-RING |
| 26-6 |
A112059600-2 |
PIPE ASSY |
| 26-7 |
A115004900-2 |
INSULATION-CORE |
| 26-8 |
A306201301-3 |
CAP-FLANGE |
| 28 |
AM27000201-3 |
CLAMP-WATER HOSE |
| 29 |
AH001288 |
HOSE-OUTLET,WATER |
| 30 |
11N6-90810 |
MOTOR ACT-FOOT/DEF |
| 31 |
4AH-0643 |
HOLDER-WIRE |
| 33 |
11N6-90830 |
WIRING ASSY |
| 34 |
A710051601-3 |
HOSE-DRAIN |
| 35 |
AM99001201-3 |
NAME PLATE |
| 36 |
AM800-001-04-3 |
HOSE-DRAIN |
| 37 |
4CC-3354Z |
VALVE-VACUUM |
| 38 |
AH000856 |
ROD-TEMP |
| 39 |
AH001287 |
HOSE-INLET,WATER |
| 40 |
AH001415 |
HEATER PIPE-INLET |
|
|
