Номер |
Название |
|
|
| * |
31N5-50131 |

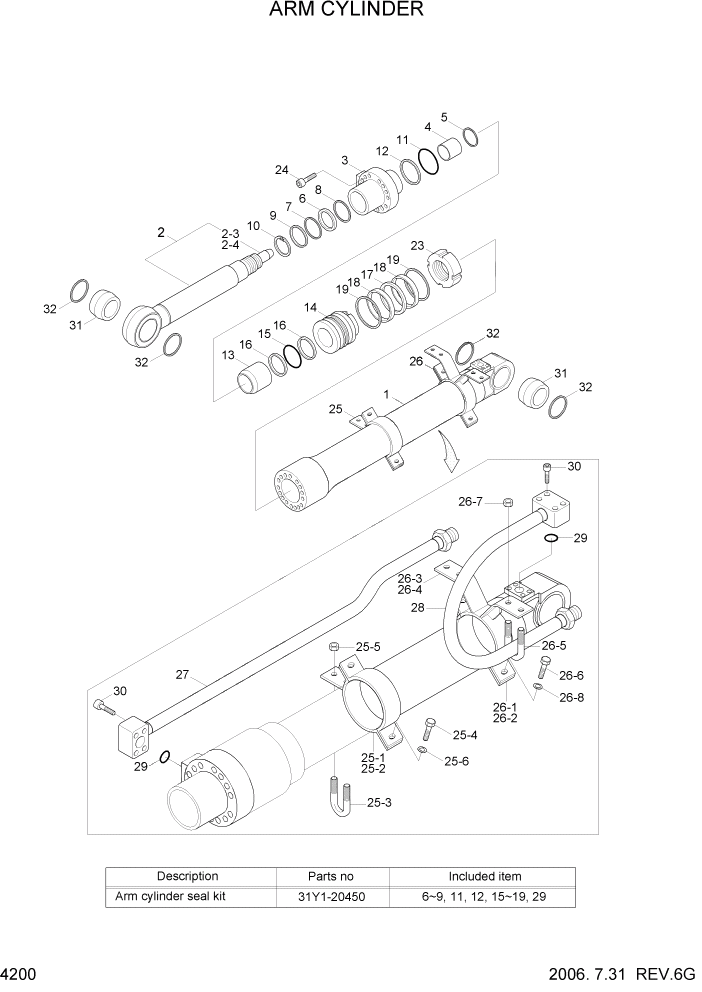

CYLINDER ASS'Y |
 |
| *-1 |
31Y1-20200 |
ARM CYL SUB ASSY |
| 1 |
31Y1-20210 |
TUBE ASSY |
| 2 |
31Y1-23200 |
ROD ASSY |
| N2-3 |
@ |
SPEAR-CUSHION |
| N2-4 |
@ |
RING-STOP |
| 3 |
31Y1-15800 |
GLAND |
| 4 |
S732-085030 |
BUSHING-DU |
| 5 |
Y191-092000 |
RING-SNAP |
| K6 |
Y220-085011 |
SEAL-ROD |
| K7 |
Y180-085020 |
RING-BACK UP |
| K8 |
Y240-085013 |
RING-BUFFER |
| K9 |
Y110-085011 |
WIPER-DUST |
| 10 |
Y190-099000 |
RING-SNAP |
| K11 |
S631-110004 |
O-RING |
| K12 |
S641-110003 |
RING-BACK UP |
| 13 |
31YC-23020 |
RING-CUSHION |
| 14 |
31Y1-04290 |
PISTON |
| K15 |
S632-075004 |
O-RING |
| K16 |
S642-075003 |
RING-BACK UP |
| K17 |
Y420-120000 |
SEAL-PISTON |
| K18 |
Y310-120203 |
RING-WEAR |
| K19 |
Y440-120000 |
RING-DUST |
| 23 |
31YC-61060 |
NUT-LOCK |
| 24 |
S109-160804 |
BOLT-SOCKET |
| 31 |
31YC-11081 |
BUSHING-PIN |
| 32 |
Y000-070200 |
SEAL-DUST |
| 25 |
31Y1-04300 |
BAND ASSY-R |
| 25-1 |
31Y1-04310 |
BAND SUB ASS'Y |
| 25-2 |
31YC-31080 |
BAND |
| 25-3 |
S071-022730 |
U-BOLT |
| 25-4 |
S011-100352 |
BOLT-HEX |
| 25-5 |
S201-101002 |
NUT-HEXAGON HEAD |
| 25-6 |
S411-100002 |
WASHER-SPRING |
| 26 |
31Y1-22720 |
BAND ASSY-B |
| 26-1 |
31Y1-04330 |
BAND SUB ASS'Y |
| 26-2 |
31Y1-22730 |
BAND SUB ASS'Y |
| 26-3 |
31YC-31080 |
BAND |
| 26-4 |
31YC-32030 |
BAND |
| 26-5 |
S071-022730 |
U-BOLT |
| 26-6 |
S011-100352 |
BOLT-HEX |
| 26-7 |
S201-101002 |
NUT-HEXAGON HEAD |
| 26-8 |
S411-100002 |
WASHER-SPRING |
| 27 |
31Y1-20441 |
PIPE ASSY-R |
| 28 |
31Y1-20371 |
PIPE ASSY-B |
| K29 |
Y171-019004 |
O-RING |
| 30 |
S107-100454 |
BOLT-SOCKET HEAD |
| K |
31Y1-20450 |
SEAL KIT |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
|
|
