Номер |
Название |
|
|
| * |

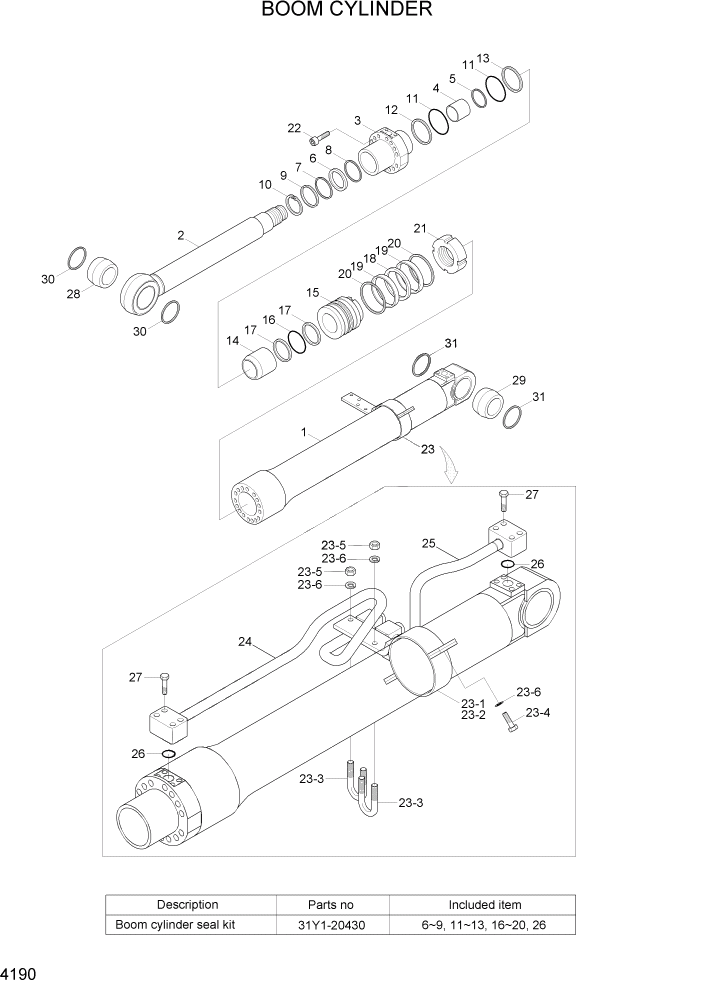

31N5-50110 |
CYLINDER ASS'Y,LH |
 |
| * |
31N5-50120 |
CYLINDER ASS'Y,RH |
| *-1 |
31Y1-20380 |
BOOM CYL SUB ASSY |
| 1 |
31Y1-20350 |
TUBE ASSY |
| 2 |
31Y1-04090 |
ROD ASSY |
| 3 |
31Y1-04120 |
GLAND |
| 4 |
S732-080040 |
BUSHING |
| 5 |
Y191-086000 |
RING-SNAP |
| K6 |
Y200-080011 |
SEAL-ROD |
| K7 |
Y180-080020 |
RING-BACK UP |
| K8 |
Y240-080011 |
RING-BUFFER |
| K9 |
Y110-080011 |
WIPER-DUST |
| 10 |
Y190-094000 |
RING-SNAP |
| K11 |
S631-105004 |
O-RING |
| K12 |
S641-105002 |
RING-BACK UP |
| K13 |
S641-105003 |
RING-BACK UP |
| 14 |
31YC-21050 |
RING-CUSHION |
| 15 |
31Y1-03660 |
PISTON |
| K16 |
S632-070004 |
O-RING |
| K17 |
S642-070003 |
RING-BACK UP |
| K18 |
Y420-115000 |
SEAL-PISTON |
| K19 |
Y310-115000 |
RING-WEAR |
| K20 |
Y440-115000 |
RING-DUST |
| 21 |
31YC-61050 |
NUT-LOCK |
| 22 |
S109-180604 |
BOLT-SOCKET |
| 28 |
31YC-11075 |
BUSHING-PIN |
| 29 |
31YC-11085 |
BUSHING-PIN |
| 30 |
S700-075205 |
SEAL-DUST |
| 31 |
Y000-070200 |
SEAL-DUST |
| 23 |
31Y1-04130 |
BAND ASSY-LH |
| 23 |
31Y1-04020 |
BAND ASSY-RH |
| 23-1 |
31Y1-04140 |
BAND SUB ASS'Y,LH |
| 23-1 |
31Y1-041R0 |
BAND SUB ASSY-RH |
| 23-2 |
31YC-32020 |
BAND |
| 23-3 |
S071-022730 |
U-BOLT |
| 23-4 |
S011-100352 |
BOLT-HEX |
| 23-5 |
S201-101002 |
NUT-HEXAGON HEAD |
| 23-6 |
S411-100002 |
WASHER-SPRING |
| 24 |
31Y1-20390 |
PIPE ASSY-R,LH |
| 24 |
31Y1-20400 |
PIPE ASSY-R,RH |
| 25 |
31Y1-20410 |
PIPE ASSY-B,LH |
| 25 |
31Y1-20420 |
PIPE ASSY-B,RH |
| K26 |
Y171-019004 |
O-RING |
| 27 |
S107-100454 |
BOLT-SOCKET HEAD |
| K |
31Y1-20430 |
SEAL KIT |
|
|
