Номер |
Название |
|
|
| * |
@ |
TRAVEL MOTOR |
 |
| *-1 |
XKAH-00367 |

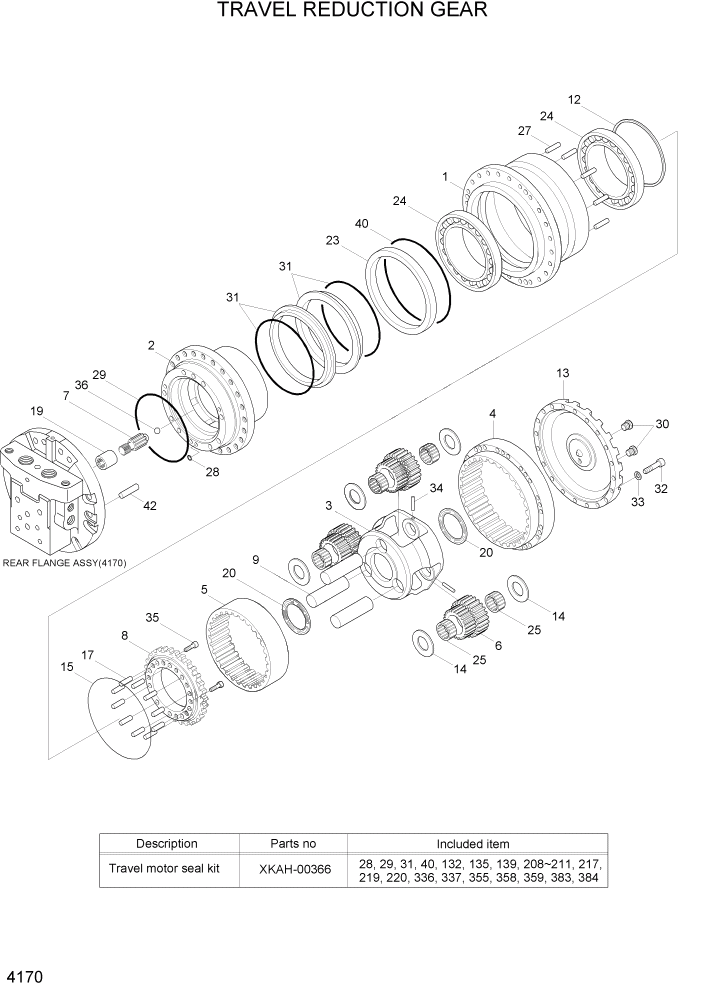

REDUCTION GEAR ASSY |
| *-11 |
XKAH-00368 |
HUB ASSY |
| 1 |
XKAH-00364 |
HUB |
| 4 |
XKAH-00363 |
GEAR-RING(A) |
| *-12 |
XKAH-00369 |
SPINDLE KIT |
| *-12A |
XKAH-00362 |
SPINDLE ASSY |
| N2 |
XKAH-00361 |
SPINDLE |
| N8 |
XKAH-00360 |
GEAR-COUPLING |
| 17 |
XKAH-00334 |
PIN-PARALLEL |
| N35 |
XKAH-00359 |
BOLT-SOCKET |
| *-13 |
XKAH-00358 |
CARRIER KIT |
| *-13A |
XKAH-00357 |
CARRIER ASSY |
| 3 |
XKAH-00356 |
CARRIER |
| 6 |
XKAH-00355 |
GEAR-CLUSTER |
| 9 |
XKAH-00354 |
SHAFT-CLUSTER |
| 14 |
XKAH-00353 |
COLLAR-THRUST |
| 25 |
XKAH-00352 |
BEARING-NEEDLE |
| 34 |
XKAH-00351 |
PIN-PARALLEL |
| 5 |
XKAH-00350 |
GEAR-RING(B) |
| 7 |
XKAH-00349 |
GEAR-SUN |
| 12 |
XKAH-00348 |
PIECE-DISTANCE |
| 13 |
XKAH-00347 |
COVER |
| 15 |
XKAH-00346 |
RING |
| 19 |
XKAH-00345 |
COUPLING |
| 20 |
XKAH-00344 |
PLATE-THRUST |
| 23 |
XKAH-00343 |
RING-SEAL |
| *-14 |
XKAH-00342 |
FLOATING SEAL KIT |
| N31 |
XKAH-00341 |
SEAL-FLOATING |
| 24 |
XKAH-00340 |
BEARING-A/BALL |
| 27 |
XKAH-00339 |
PIN-PARALLEL |
| 28 |
XKAH-00194 |
O-RING |
| 29 |
XKAH-00028 |
O-RING |
| 30 |
XKAH-00338 |
PLUG-PT |
| 32 |
XKAH-00337 |
BOLT |
| 33 |
XKAH-00336 |
WASHER-SPRING |
| 36 |
XKAH-00033 |
BALL-STEEL |
| 40 |
XKAH-00335 |
O-RING |
| 42 |
XKAH-00334 |
PIN-PARALLEL |
| *-2 |
XKAH-00333 |
CONTROL UNIT |
| *-3 |
XKAH-00622 |
TRAVEL MOTOR UNIT |
| *-4 |
XKAH-00097 |
RELIEF VALVE KIT |
| K |
XKAH-00366 |
SEAL KIT |
| N |
@ |
NOT SUPPLIED PARTS |
|
|
