Номер |
Название |
|
|
| * |
31N5-10010 |

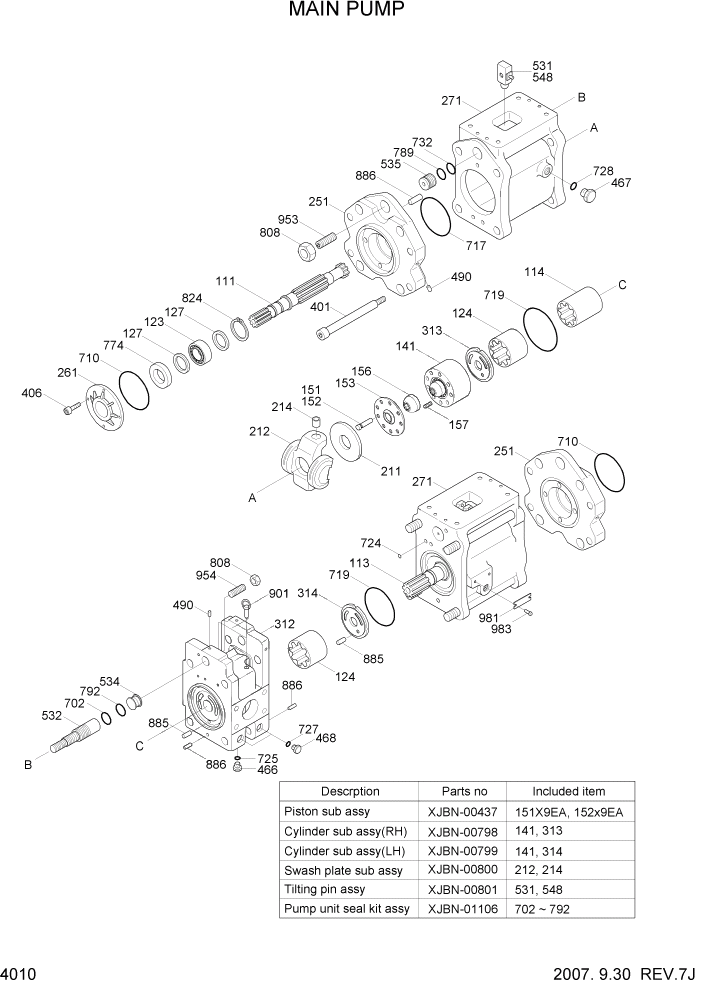

MAIN PUMP |
 |
| * |
31N5-10011 |
MAIN PUMP |
| *-1 |
@ |
MAIN PUMP UNIT |
| 111 |
XJBN-00802 |
SHAFT(F)-DRIVE |
| 113 |
XJBN-00803 |
SHAFT(R)-DRIVE |
| 114 |
XJBN-00430 |
COUPLING-SPLINE |
| 123 |
XJBN-00429 |
BEARING-ROLLER |
| 124 |
XJBN-00805 |
BEARING-NEEDLE |
| 127 |
XJBN-00806 |
SPACER-BEARING |
| S141 |
XJBN-00807 |
BLOCK |
| S151 |
XJBN-00425 |
PISTON |
| S152 |
XJBN-00424 |
SHOE |
| 153 |
XJBN-00808 |
PLATE-SET |
| 156 |
XJBN-00422 |
BUSHING-SPHERICAL |
| 157 |
XJBN-00421 |
SPRING-CYLINDER |
| 211 |
XJBN-00420 |
PLATE-SHOE |
| S212 |
XJBN-00419 |
PLATE-SWASH |
| S214 |
XJBN-00418 |
BUSHING-TILTING |
| 251 |
XJBN-00417 |
SUPPORT |
| 261 |
XJBN-00809 |
COVER-FR |
| 271 |
XJBN-00415 |
CASING-PUMP |
| 312 |
XJBN-00414 |
BLOCK-VALVE |
| S313 |
XJBN-00413 |
PLATE(R)-VALVE |
| S314 |
XJBN-00412 |
PLATE(L)-VALVE |
| 401 |
XJBN-00411 |
SCREW |
| 406 |
XJBN-00410 |
SCREW |
| 466 |
XJBN-00356 |
PLUG |
| 467 |
XJBN-00409 |
PLUG |
| 490 |
XJBN-00032 |
PLUG |
| S531 |
XJBN-00815 |
PIN-TILTING |
| 532 |
XJBN-00407 |
PISTON-SERVO |
| 534 |
XJBN-00816 |
STOOPER(L) |
| 535 |
XJBN-00405 |
STOPPER(S) |
| S548 |
XJBN-00360 |
PIN-FEED BACK |
| K702 |
XJBN-00888 |
O-RING |
| K710 |
XJBN-00402 |
O-RING |
| K717 |
XJBN-00401 |
O-RING |
| K719 |
XJBN-00400 |
O-RING |
| K724 |
XJBN-00361 |
O-RING |
| K725 |
XJBN-00362 |
O-RING |
| K728 |
XJBN-00097 |
O-RING |
| K732 |
XJBN-00820 |
O-RING |
| K774 |
XJBN-00098 |
SEAL-OIL |
| K789 |
XJBN-00398 |
RING-BACK UP |
| K792 |
XJBN-00397 |
RING-BACK UP |
| 808 |
XJBN-00396 |
NUT |
| 824 |
XJBN-00395 |
RING-SNAP |
| 885 |
XJBN-00394 |
PIN-VALVE PLATE |
| 886 |
XJBN-00365 |
PIN-SPRING |
| 901 |
XJBN-00393 |
BOLT-EYE |
| 953 |
XJBN-00105 |
SCREW-SET |
| 954 |
XJBN-00392 |
SCREW-SET |
| 981 |
XJBN-00156 |
NAME PLATE |
| 983 |
XJBN-00341 |
PIN |
| *-2 |
@ |
REGULATOR ASSY |
| *-2 |
@ |
REGULATOR ASSY |
| *-3 |
@ |
GEAR PUMP |
| S |
XJBN-00437 |
PISTON SUB ASSY |
| S |
XJBN-00798 |
CYLINDER SUB ASSY-RH |
| S |
XJBN-00799 |
CYLINDER SUB ASSY-LH |
| S |
XJBN-00800 |
SWASH PLATE SUB ASSY |
| S |
XJBN-00801 |
TILTING PIN SUB ASSY |
| K |
XJBN-01106 |
SEAL KIT-PUMP UNIT |
|
|
