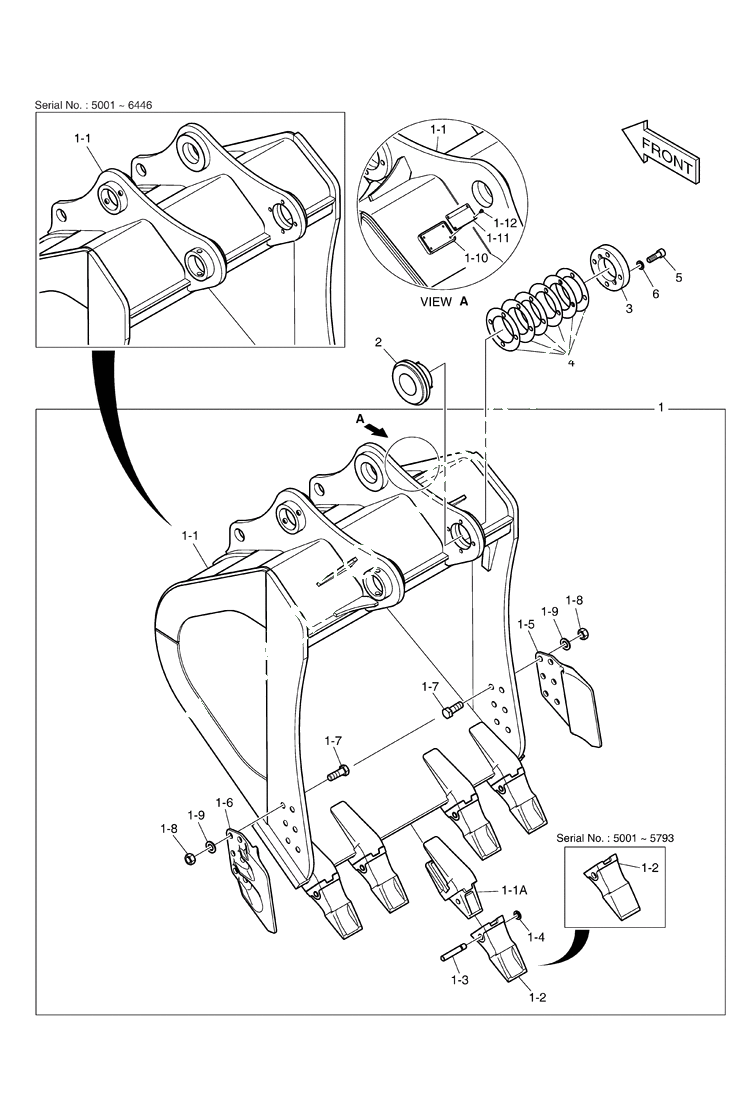

Номер |
Название |
|
|
| 1 |
K1004478G |
BUCKET ASS`Y |
 |
| 2 |
230104-00615 |
BUCKET ASSY;(1.49M3) |
| 3 |
K1004479A |
BUCKET SUB ASS`Y-1.49m? |
| 4 |
K1004479B |
BUCKET SUB ASS`Y-1.49m? |
| 5 |
K1004479C |
BUCKET SUB ASS`Y-1.49m? |
| 6 |
K1004479E |
BUCKET SUB ASS`Y-1.49m? |
| 7 |
230104-00616 |
BUCKET;SUB ASSY(1.49M3) |
| 8 |
K1004480A |
BUCKET;WELD-1.49? |
| 9 |
K1004480B |
BUCKET;WELD-1.49? |
| 10 |
K1004480C |
BUCKET;WELD-1.49m? |
| 11 |
230104-00617 |
BUCKET,WELD;(1.49M3) |
| 12 |
713-00033 |
ADAPTER;TOOTH |
| 13 |
713-00033A |
ADAPTER;TOOTH |
| 14 |
K1005018 |
TOOTH;POINT |
| 15 |
K1005018A |
TOOTH;POINT |
| 16 |
K1005018B |
TOOTH;POINT |
| 17 |
705-00006 |
PIN;LOCKING |
| 18 |
114-00246 |
WASHER;LOCKING |
| 19 |
2713-6034A |
CUTTER;SIDE(R.H) |
| 20 |
2713-6035A |
CUTTER;SIDE(L.H) |
| 21 |
S0574761 |
BOLT M24X3.0X70 |
| 22 |
S4013333 |
NUT |
| 23 |
2114-1831A |
WASHER;HARDEN |
| 24 |
K1005253 |
BUSH;FLANGE |
| 25 |
K1005254A |
STOPPER |
| 26 |
K1005254B |
STOPPER |
| 27 |
K1013571 |
SHIM |
| 28 |
S2221666 |
BOLT;SOCKET |
| 29 |
K1014251 |
WASHER;HARDEN |
|
|
